Quick Detachment of Major Parts
CL-S6621 3-8
3-5-2. SA2 Platen

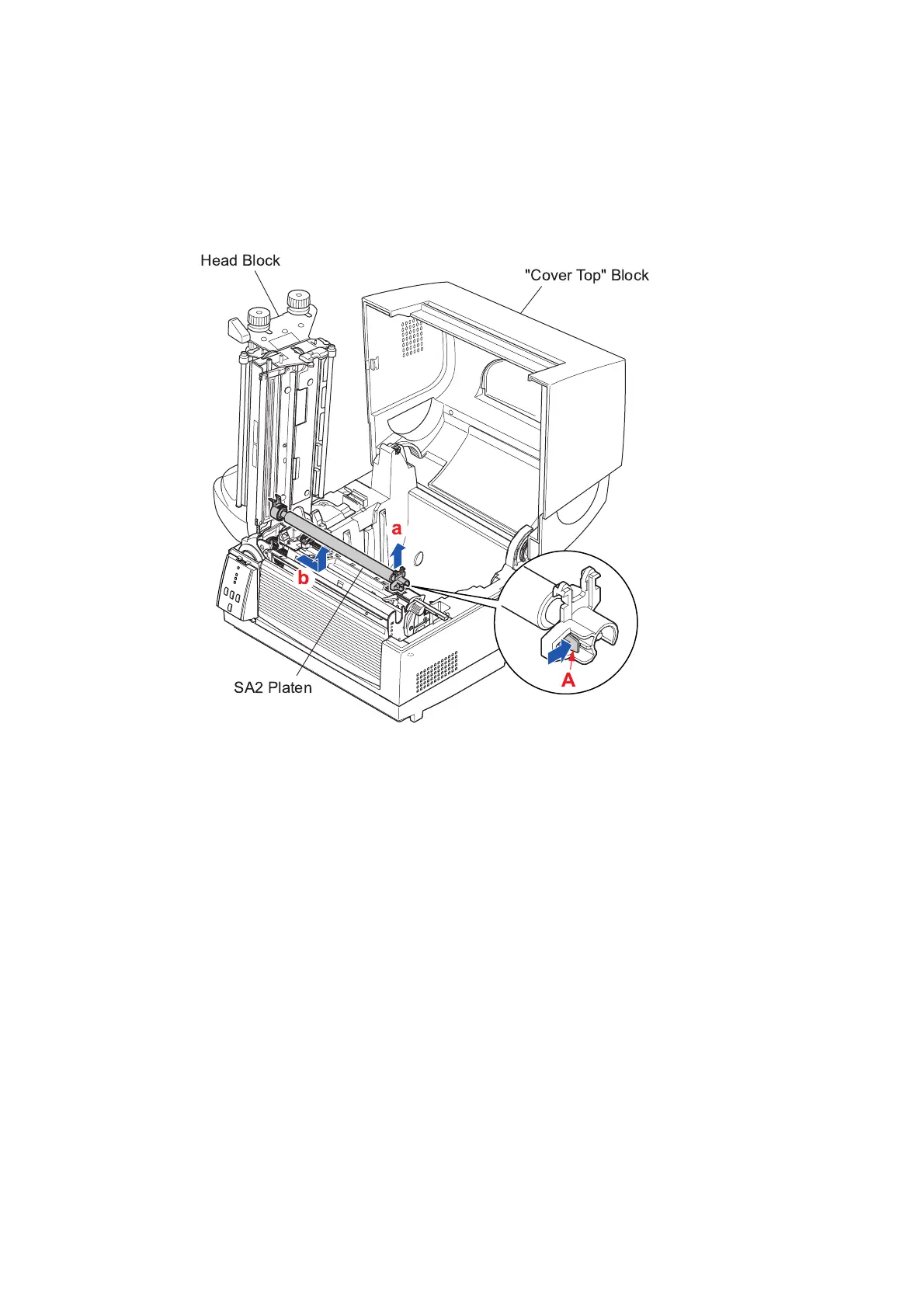

1. Open the “Cover Top” and then the ribbon & head Block.
2. While pressing the part “A” of the “SA2 Platen”, lift the right end of the “SA2 Platen” a little.
(See the arrow “a”.)
Next, move it to the right and then remove it from the printer by lifting it upwardly. (See the
arrow “b”.)
Note on reassembling:
• After reassembling the “SA2 Platen”, be sure that it is securely engaged with the main body.
>
=
)
