Citizen CL-S6621 - Removing the Case U

Disassembly, Reassembly and Lubrication
3-17 CL-S6621
(2) Removing the “Case U”
1. Remove the “Case U” Block. Refer to the above “(1) Removing the “Case U” Block”
2. Remove the “Cover Front” upwardly.
3. Remove the 1 screw (PHT (PT2T), M3x14) and detach the “Cover Connector”.
4. Remove the 1 screw (PH, M5x15 (NI)) and 1 nut ((#3), M5 (NI)), and detach the “Damper
Cover”.
5. Remove labels (“Label Rating” and “Label Caution”) from the “Case U”.
Note on reassembling
• When assembling the “Damper Cover”, tighten the screw while pushing down the “Damper
Cover”.

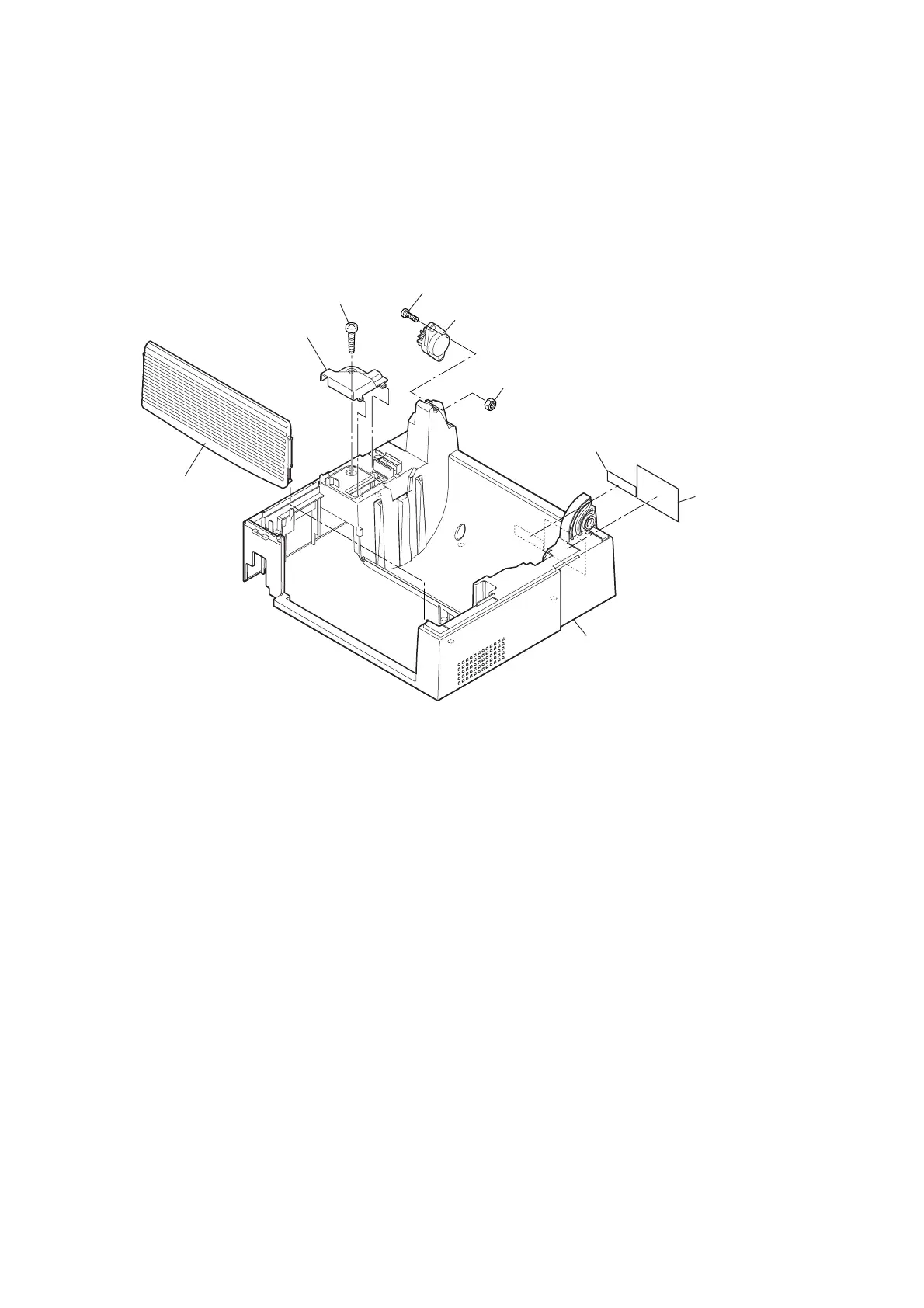

Damper Cover
Case U
PHT (PT2T), M3x14
Cover Connector
(#3), M5 (NI)
PH, M5x15 (NI)
Cover Front
Label Caution
Label Rating
