Disassembly, Reassembly and Lubrication
CL-S6621 3-12

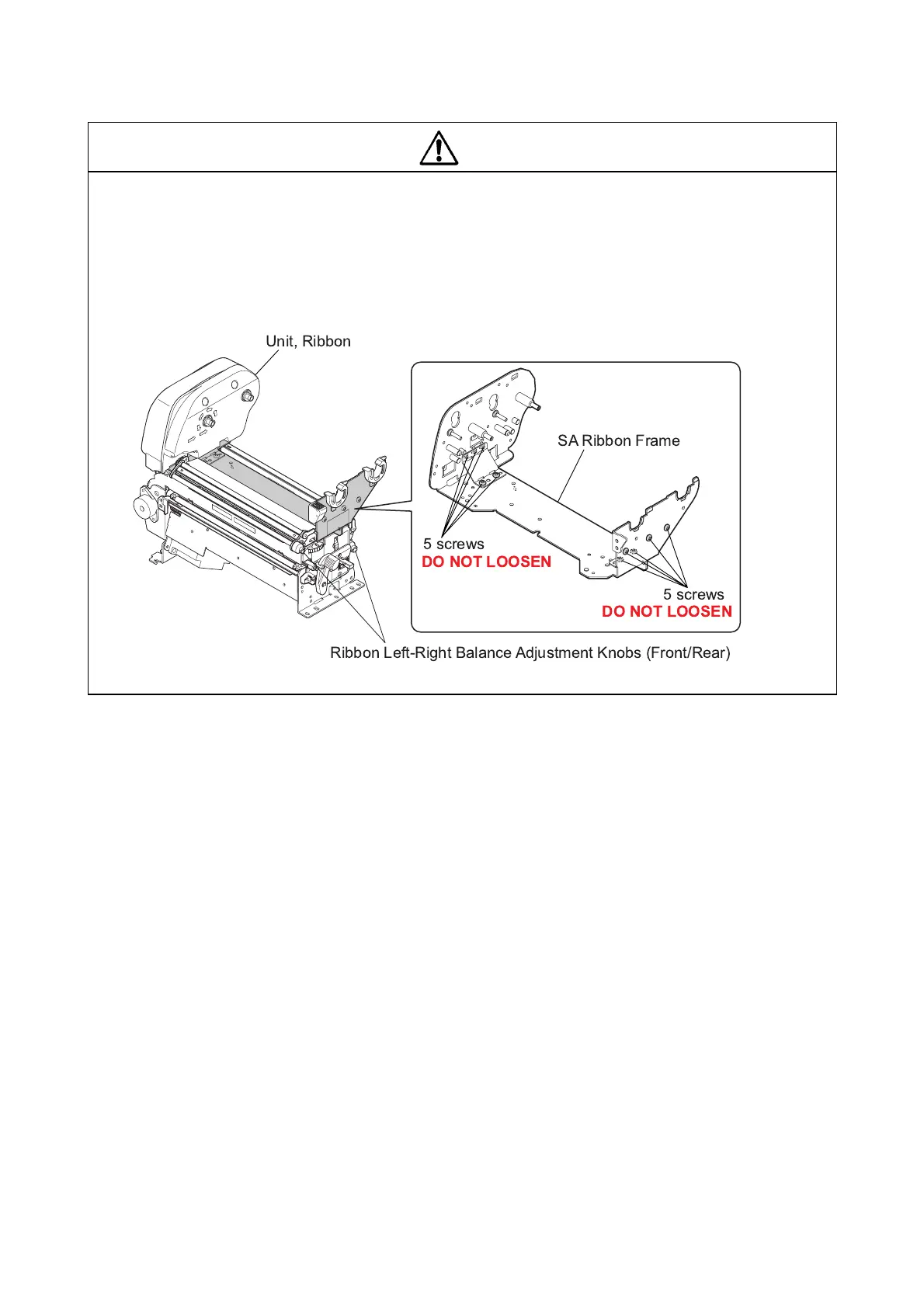

3-6-2. Unit, Ribbon
• Forbidden screws in the “Unit, Ribbon”
DO NOT loosen the 10 screws of the “SA Ribbon Frame”. The “SA Ribbon Frame”
consists of three parts and is assembled with the 10 screws.
Once the “SA Ribbon Frame” is disassembled, correct ribbon running cannot be
assured. Therefore, a ribbon wrinkle may not be removed with the Ribbon Left-Right
Balance Adjustment Knobs (Front/Rear), as expected.
Caution
5 screws
DO NOT LOOSEN
DO NOT LOOSEN
5 screws
SA Ribbon Frame
Ribbon Left-Right Balance Adjustment Knobs (Front/Rear)
Unit, Ribbon
To Next Page
