Citizen CLP-621 Technical Manual

3-5. Disassembly, Reassembly and Lubrication
3-33 CLP-621 & CLP-631
Tip: To remove the Head SA without disassembling the Head Unit
You can remove the Head SA without disassembling the Head Unit. Though, the normal
disassembly procedure is described in (1) “Head Unit” on page 3-
30.

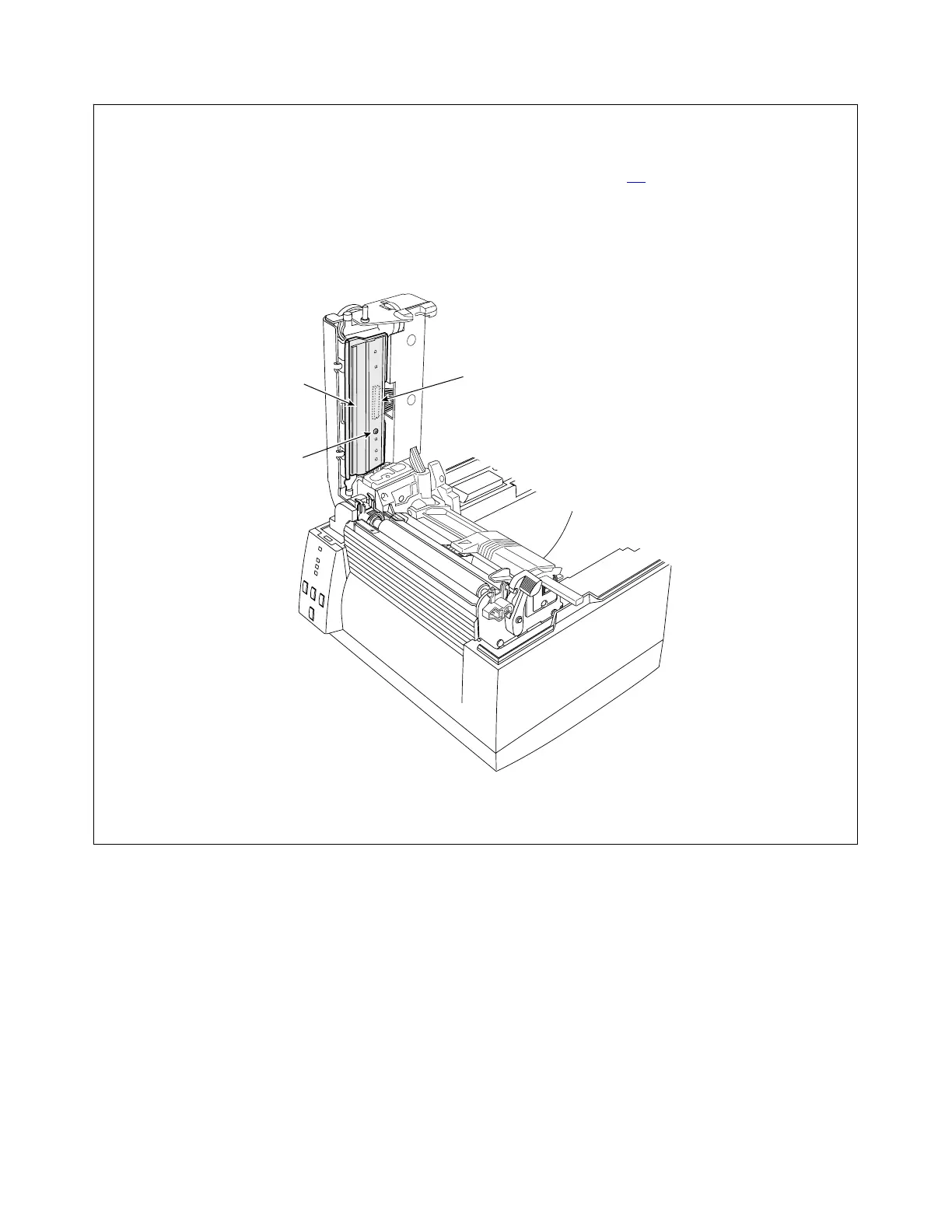

1. Raise the head block. (The following figure omits the Ribbon Unit.)
2. Disconnect the connector of the Head Cable SA from the Head SA.
3. Remove 1 screw (BH (N), M3x6) and detach the Head SA.
SA, Head Cable
SA, Head
BH (N), M3x6

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
