Citizen CLP-621 Technical Manual

3-5. Disassembly, Reassembly and Lubrication
3-5. Disassembly, Reassembly and Lubrication
3-7 CLP-621 & CLP-631

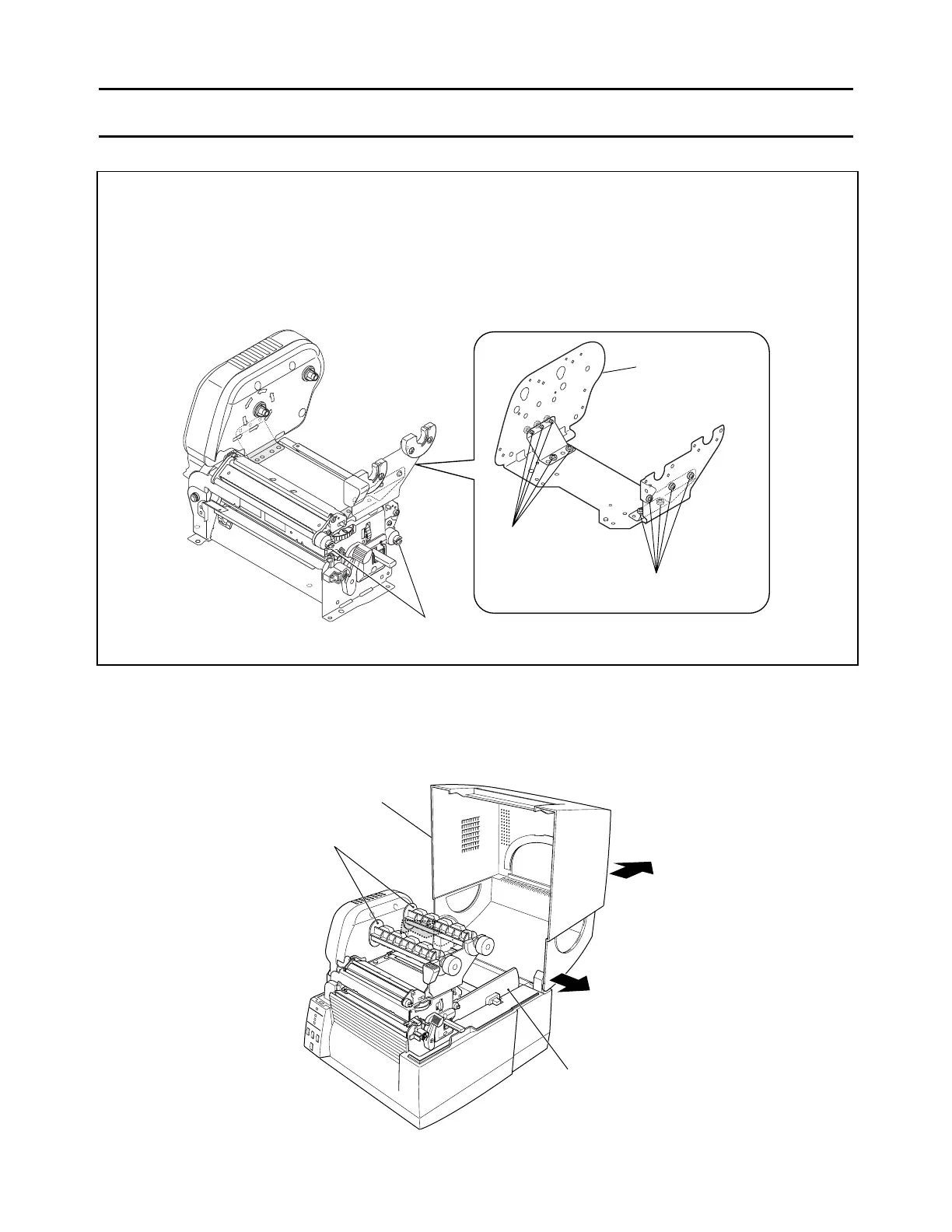

Caution: Forbidden screws on the Ribbon Unit
DO NOT loosen or remove the following 10 screws.
The Ribbon Unit Base Plate SA1 consists of three parts, and is assembled with 10
screws. If the
Ribbon Unit Base Plate SA1 is disassembled, correct ribbon running
cannot be assured. Namely, ribbon slant correction may become impossible within the
adjustable range o
f the Ribbon Left-Right Balance Adjustment Knobs (Front/Rear).
Ribbon Left-Right Balance Adjustment Knobs (Front/Rear)
Five screws
SA1, Ribbon Unit
Base Plate
Five screws
DO NOT LOOSEN.
DO NOT LOOSEN.
3-5-1. Top Cover SA
1. Open the Top Cover SA and remove it while opening its rear ends as shown in the figure.
2. Remove the two Ribbon Holders and Media Lock Holder block from the printer
SA, Top Cover
(Ribbon Holders)
(Paper holder block)

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
