Citizen CLP-621 Technical Manual

3-5. Disassembly, Reassembly and Lubrication
CLP-621 & CLP-631 3-14

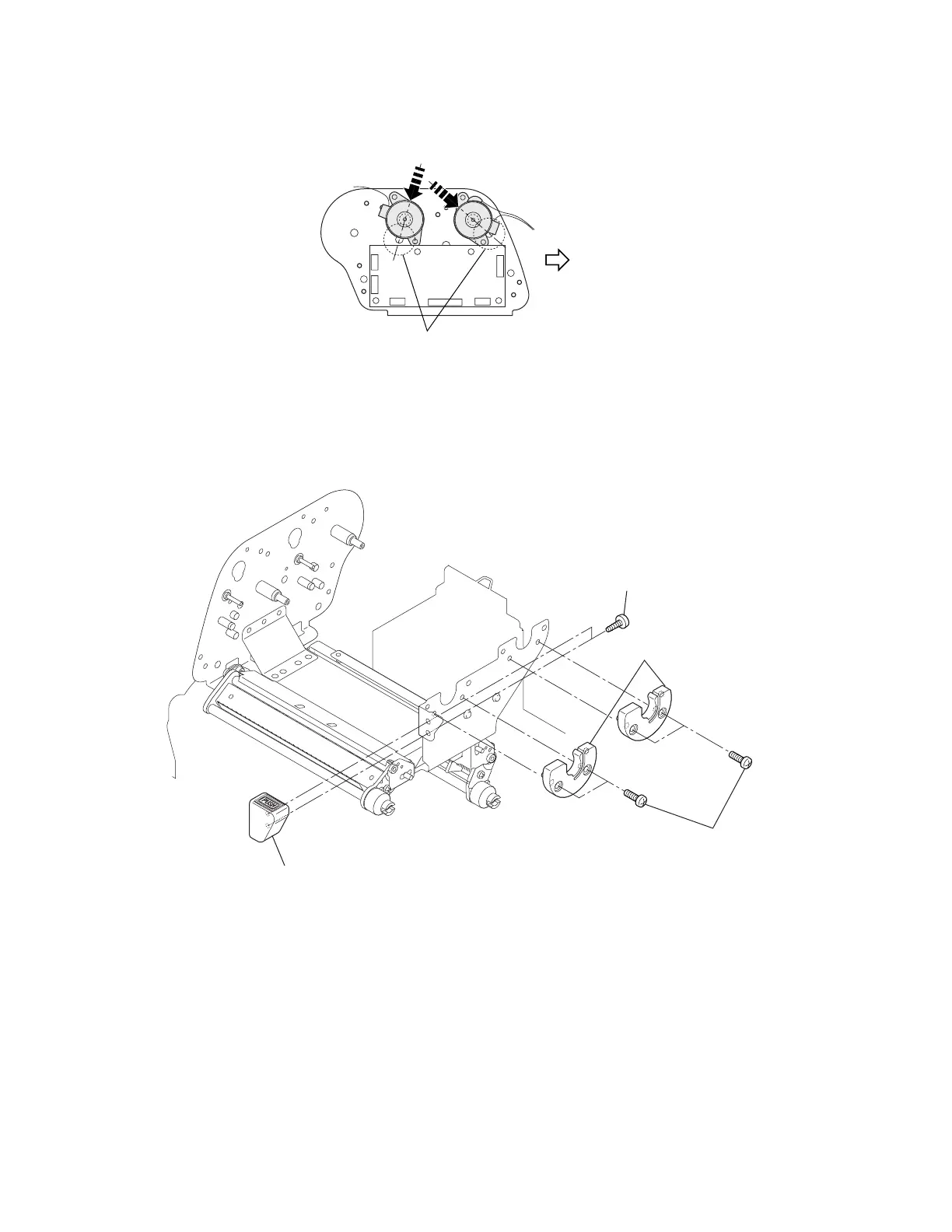

Note on reassembling:
• When assembling the Ribbon Motor F SA and the Ribbon Motor R SA, tighten screws while
pushing the motor toward the Ribbon Gear 1.
Front
Gear 1, Ribbon
3-5-6. Ribbon Holder Catch and Ribbon Unit Knob
1. Open the Top Cover SA.
2. Remove 4 screws (BH, M3x3 (NI)) and detach the 2 Ribbon Holder Catches.
3. Remove 2 screws (PHT (#2), M3x8 (NI)) and detach the Ribbon Unit Knob.
BH, M3x3 (NI)
Knob, Ribbon Unit
Catch, Ribbon Holder
PHT (#2), M3x8 (NI)

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
