Citizen CLP-621 Technical Manual

3-5. Disassembly, Reassembly and Lubrication
3-25 CLP-621 & CLP-631
3-5-16. Head Up Sensor PCB SA, Transparent Sensor PCB SA and
Transparent Sensor Cable SA
(1) Head Up Sensor PCB SA and Transparent Sensor PCB SA
1. Remove the Sensor U Unit. Refer to 3-5-15 “Sensor U Unit”.
2. Remove the bonded Head Up Sensor PCB SA from the Head Wire Cover and disconnect
the Head Up Sensor Cable SA.
3. Remove 1 screw (NO.0, PHT (BT#1), M2x3) and detach the Transparent Sensor PCB SA
by disconnecting the Transparent Sensor Cable SA.

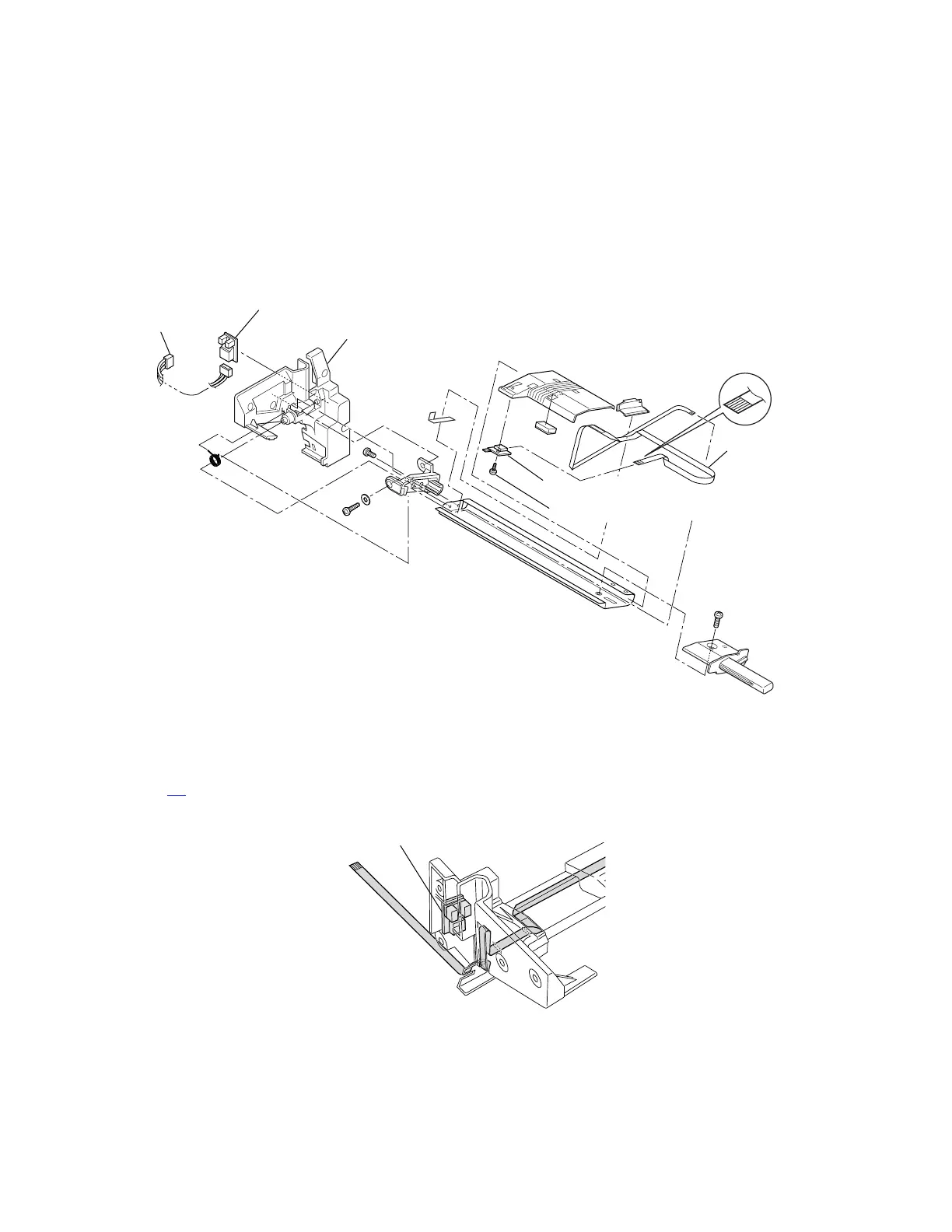

SA, Transparent
Sensor Cable
SA, Head Up Sensor PCB
SA, Head Up
Sensor Cable
SA, Transparent Sensor PCB
NO.0, PHT (BT#1), M2x3
Cover, Head Wire
Notes on reassembling:
• When the Transparent Sensor PCB SA is replaced with new one, perform the sensor
adjustment. Refer to 3-6-1 “Transparent/Reflective Sensor Position Adjustment” on page
3-
40.
• When assembling the Head Up Sensor PCB SA, bond it in place.
SA, Head Up Sensor PCB
