PMU2300III Series Service Manual
- 11 -

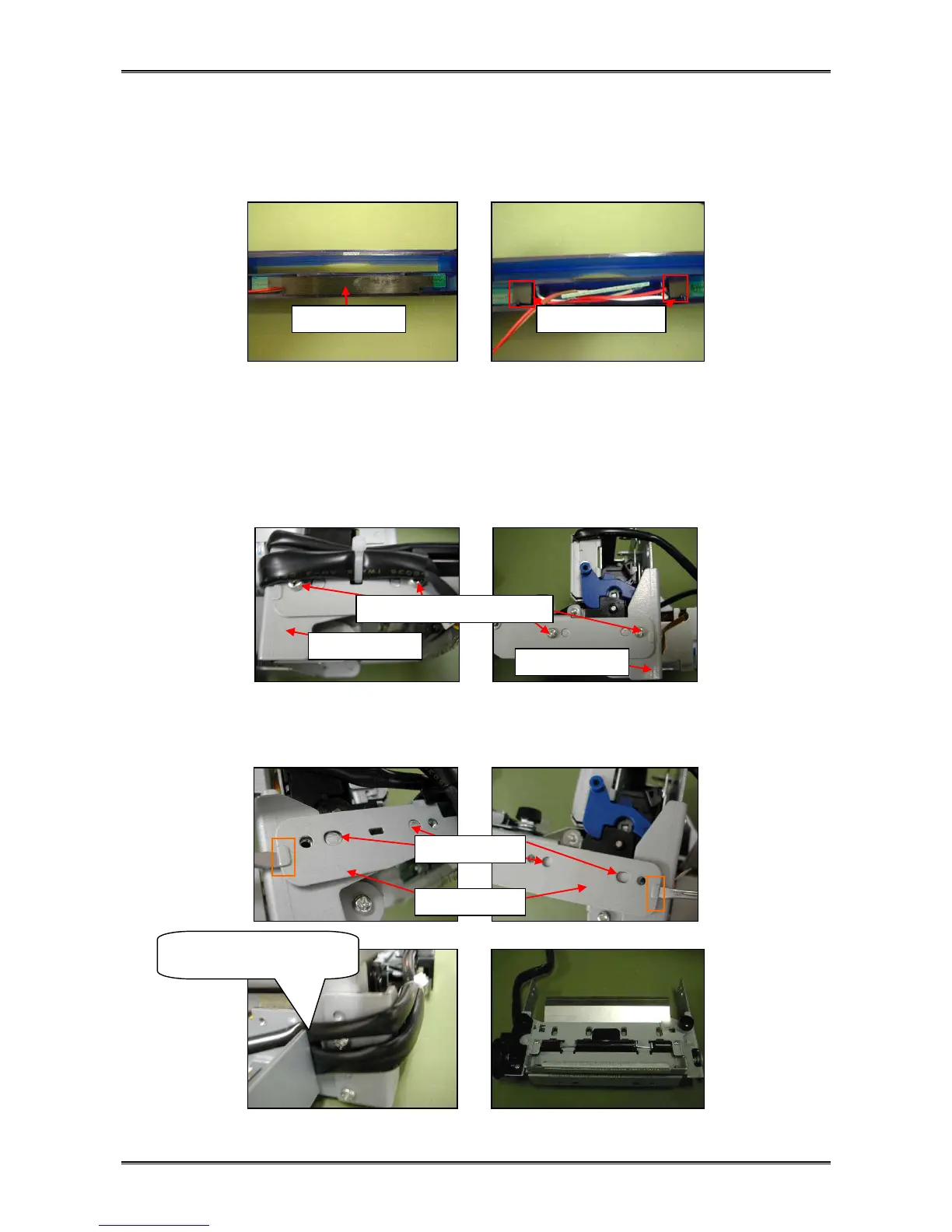

3. Removing “SA, SENSOR”
1. Remove “HOLDER, LED” and two “SPONGE, BEZEL”, and remove “SA, SENSOR” from
“BEZEL, PRESENTER”.
1-2-4. Disassembling “PRESENTER ASSY” (PN or PB Specification)
1. Removing “PRESENTER ASSY”
1. Remove two “Screw, PHT (ST), M3 × 6” from each of “PLATE, SIDE R” and “PLATE, SIDE L”,
respectively, and remove “PRESENTER ASSY”.
2. Insert a screwdriver into the notch on the right and left at “SA, Chassis” to disengage the boss.
Remove “PRESENTER ASSY” from “PLATE, SIDE R” and “PLATE, SIDE L”.
* Be careful not to deform “SA, Chassis” when disengaging the bosses.
HOLDER, LED SPONGE, BEZEL
Screw, PHT (ST), M3 × 6
PLATE, SIDE L
PLATE, SIDE R
Hole for boss
SA, Chassis
When reassembling, check
the routing of cables.
To Next Page
