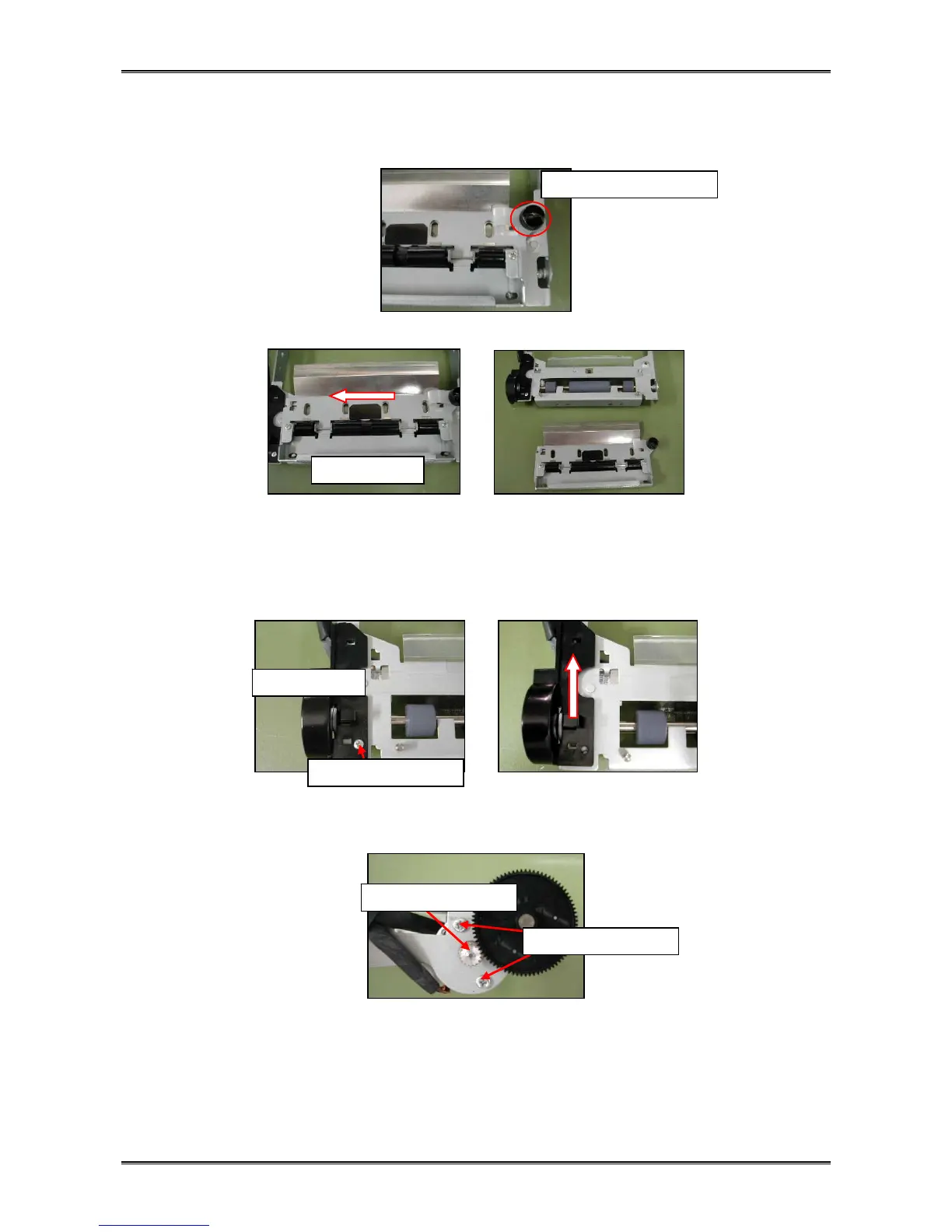

2. Removing “UNIT, COVER”
1. Remove “SCREW, COVER PLATE”.
2. Move “UNIT, COVER” in the direction of the arrow to unlatch it, and pull it out upwardly.
3. Removing “MOTOR, PRESENTER”
1. Remove “SCREW, PHT, M2 × 3”, and move “GEAR, COVER” in the direction of the arrow to
remove it from “SA, Chassis”.
2. Remove two “SCREW, PHT, M2 × 3”, and remove “MOTOR, PRESENTER” from “SA,
Chassis”.
SCREW, COVER PLATE
UNIT, COVER
GEAR, COVER
SCREW, PHT, M2 × 3
MOTOR, PRESENTER
SCREW, PHT, M2 × 3
