310
In the event of a breakdown
Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

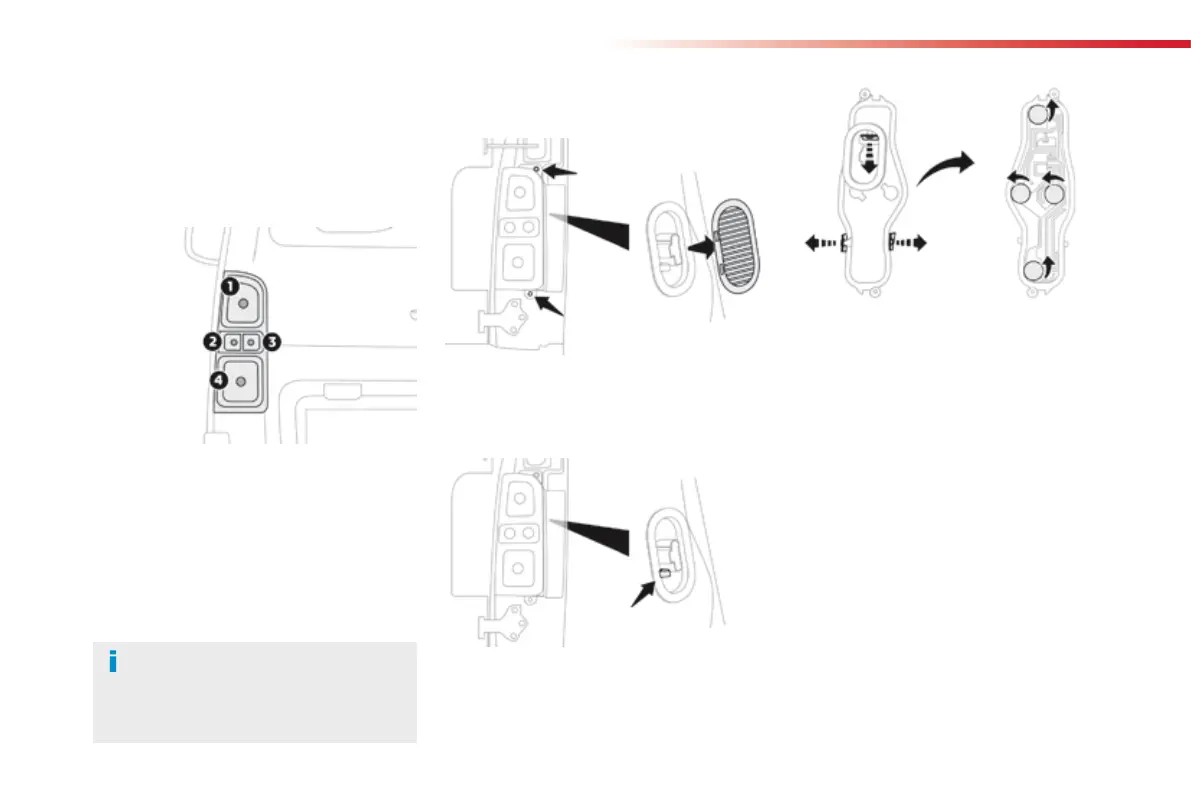

Rear lamps
(side-hinged rear doors)
For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.
F
While holding the lamp in place, press the
clip on the inside then carefully remove the
lamp.
F Disconnect the electrical connector.
For vehicles with interior trim, contact
a CITROËN dealer or a qualified
workshop to have the work done.
1.
Brake lamps / sidelamps.
Type B, P21/5W-21/5W
2.
Direction indicators.
Type B, PY21W-21W (amber)
3.
Reversing lamps.
Type B, P21W-21W
4.
Foglamps / sidelamps.
Type B, P21/4W-21/4W
F
Identify the failed bulb then open the rear
doors.
F
Spread the three lugs slightly, then extract
the bulb holder.
F Remove the failed bulb by pressing
lightly on it, then turning it a quarter turn
clockwise.
F Change the bulb.
To reassemble, carry out these operations in
reverse order.
F
From inside, remove the ventilation grille, if
your vehicle has one.
F From outside, unscrew the two lamp fixing
screws.
