ENGINE
108
CHECKING AND SETTING THE VALVE TIMING
Engine : RHY - RHZ
Tools
[1] Belt tension measuring instrument : 4122-T
[2] Tension lever : (-).188.J2
[3] Engine flywheel peg : (-).0288.D
[4] Belt compression spring : (-).0188.K
[5] Camshaft pinion peg : (-).0188.M
[6] Engine flywheel lock : (-).0188.F
[7] Set of blocking plugs : (-).0188.T
[8] Crankshaft pulley extractor : (-).0188.P

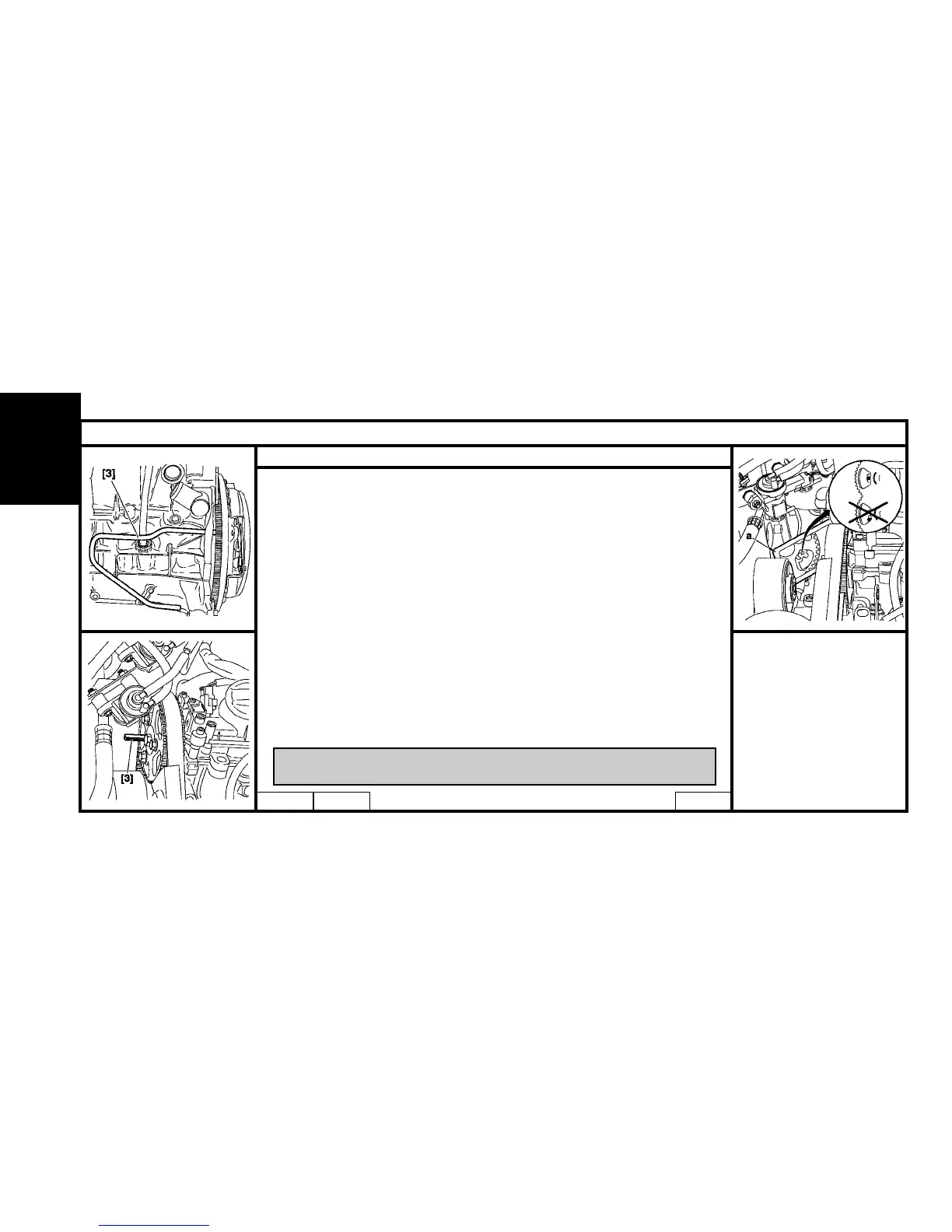

Checking the setting of the valve timing.
Peg :
- The engine flywheel, tool [3].
- The camshaft, tool [5].
WARNING : Should it be impossible to peg the camshaft, check that the offset
between the camshaft pinion hole and the pegging hole is not more than 1 mm,
with the help of a mirror « a » and a Ø 7 mm screw.
B1BP1TSC
B1BP1TTC
B1CP04CC
IMPERATIVE : If pegging is impossible, restart the adjusting.
(See corresponding operation).
