CLUTCH
GEARBOX
DRIVESHAFTS
Pull-action clutch with automatic adjustment (Non-adjustable) (*)
Xantia - XM : RFV - DHX BE3/5
Engines XM : RGX Gearboxes ME/5
Synergie : RFV ML/5
170
CLUTCH : CHECKS AND ADJUSTMENTS

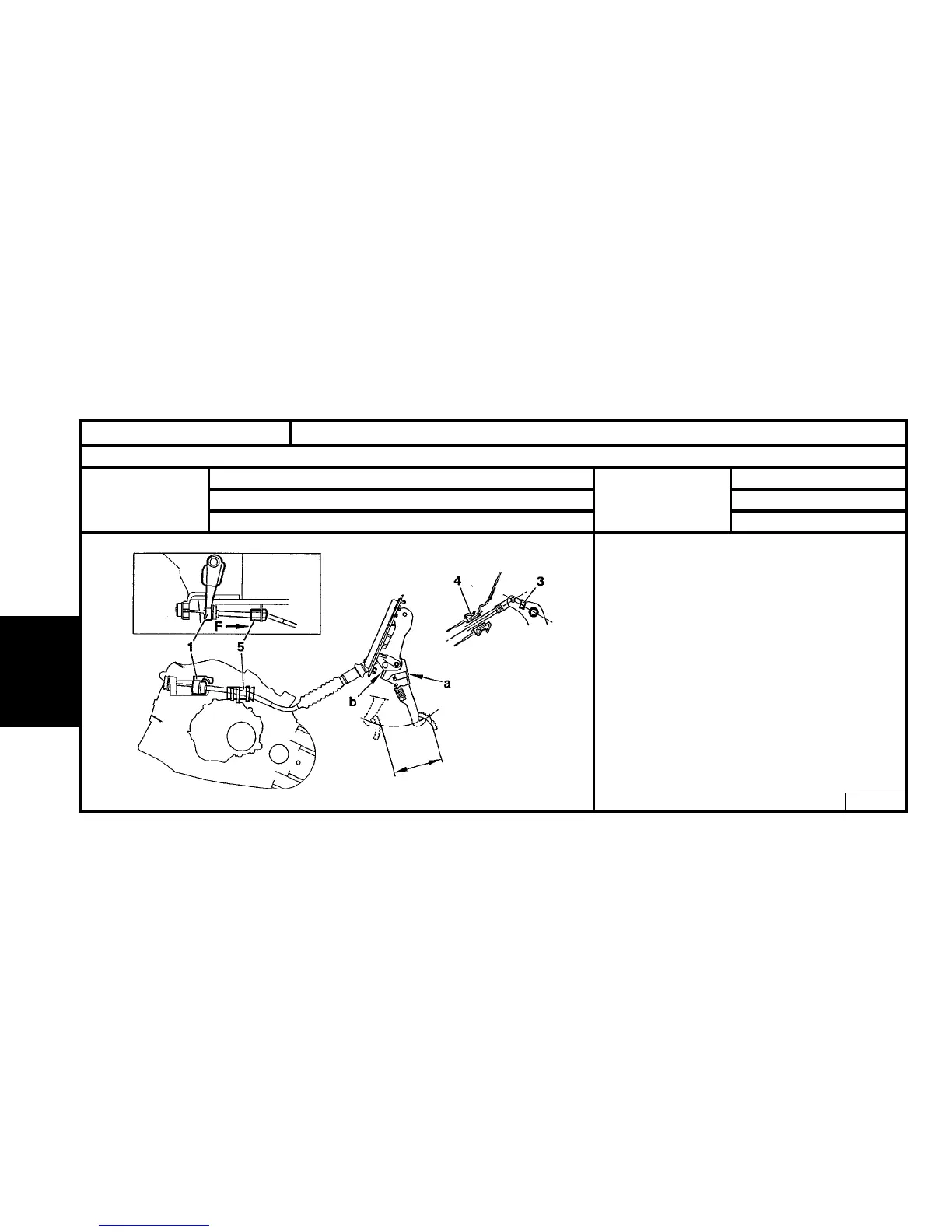

Refitting the clutch cable.
- Set the pedal to the high position (contact at A).
- Attach the cable end-piece to the pedal.
- Refit a new clip (3) to the pedal.
- Fit the end-piece (4) to the bulkhead (G6 Grease).
- Clip the end-piece (5) to the gearbox.
- Refit the cable to the lever (1).
- Depress the clutch cable several times to set the
assembly in place.
- Check that the end-piece (4) is properly fitted to the
bulkhead.
- Check the operation of the automatic adjusting device.
1) Pull the lever (in direction F), the lever must move
when pulled by hand.
2) Press the clutch pedal very lightly and repeat the
same operation. The lever should not move back.
(
*
) See pages : 172 to 173).
B2BP03DD
XANTIA - XM - SYNERGIE
