OPERATION
2
9) Enter the traveling time per segment and press
.
Setting range: 0.01 to 20 (T-type)
Setting range: 0.01 to 100 (Other)
※
※※
※ The maximum rotation speed is checked
according to the number of segments, traveling
time and cam curve.
If the maximum rotation speed exceeds the
operating range, the following message is
displayed and the traveling time is
automatically corrected.
After confirming, press
.

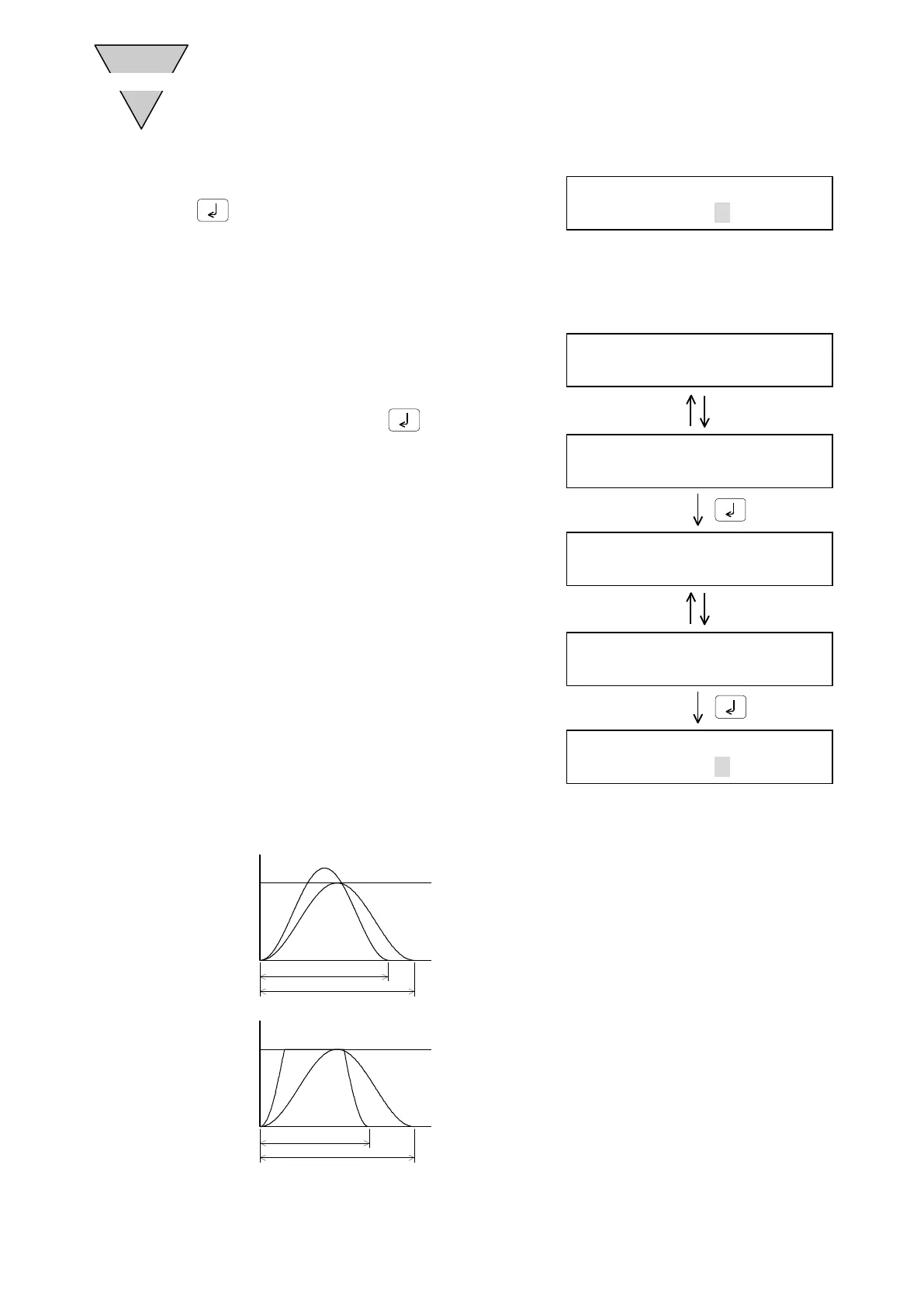

[Example of correction of traveling time, cam curve and indexing time]
• Enter the MS curve, 6 segments and traveling
time 0.15 seconds. The maximum rotation
speed exceeds 100rpm and therefore the time
is automatically corrected to 0.18 seconds.
Note: For systems where the maximum rotation
speed is 100rpm
• Enter the MS curve, 6 segments and traveling
time 0.18 seconds and perform parameter change
to change to the MC curve. The traveling time
does not change to maximum speed 0.13
seconds.
※
※※
※ The maximum rotation speed varies according to the actuator.
100rpm
0.18sec
0.15sec
100rpm
0.13sec
0.18sec
ＥＱＬ ＳＥＧ： ＭＯＶ’Ｇ
ＴＩＭＥ［ ］ＳＥＣ
★
To correct the traveling time to 0.53
seconds after calculation
ＭＯＶ’Ｇ ＴＩＭＥ ＫＥＹ
ＰＲＥＳＳ ＲＴＮ ＫＥＹ
ＭＯＶ’Ｇ ＴＩＭＥ ＲＥＶ
ＴＯ ０．５３ ＳＥＣ
ＰＲＥＳＳ ＲＴＮ ＫＥＹ
Alternately displayed
Alternately displayed
ＥＱＬ ＳＥＧ： ＭＯＶ’Ｇ
ＴＩＭＥ［ ０．５３］ＳＥＣ
