Hydraulic / Electric System JAGUAR 8550C TIC
1-6 10/04

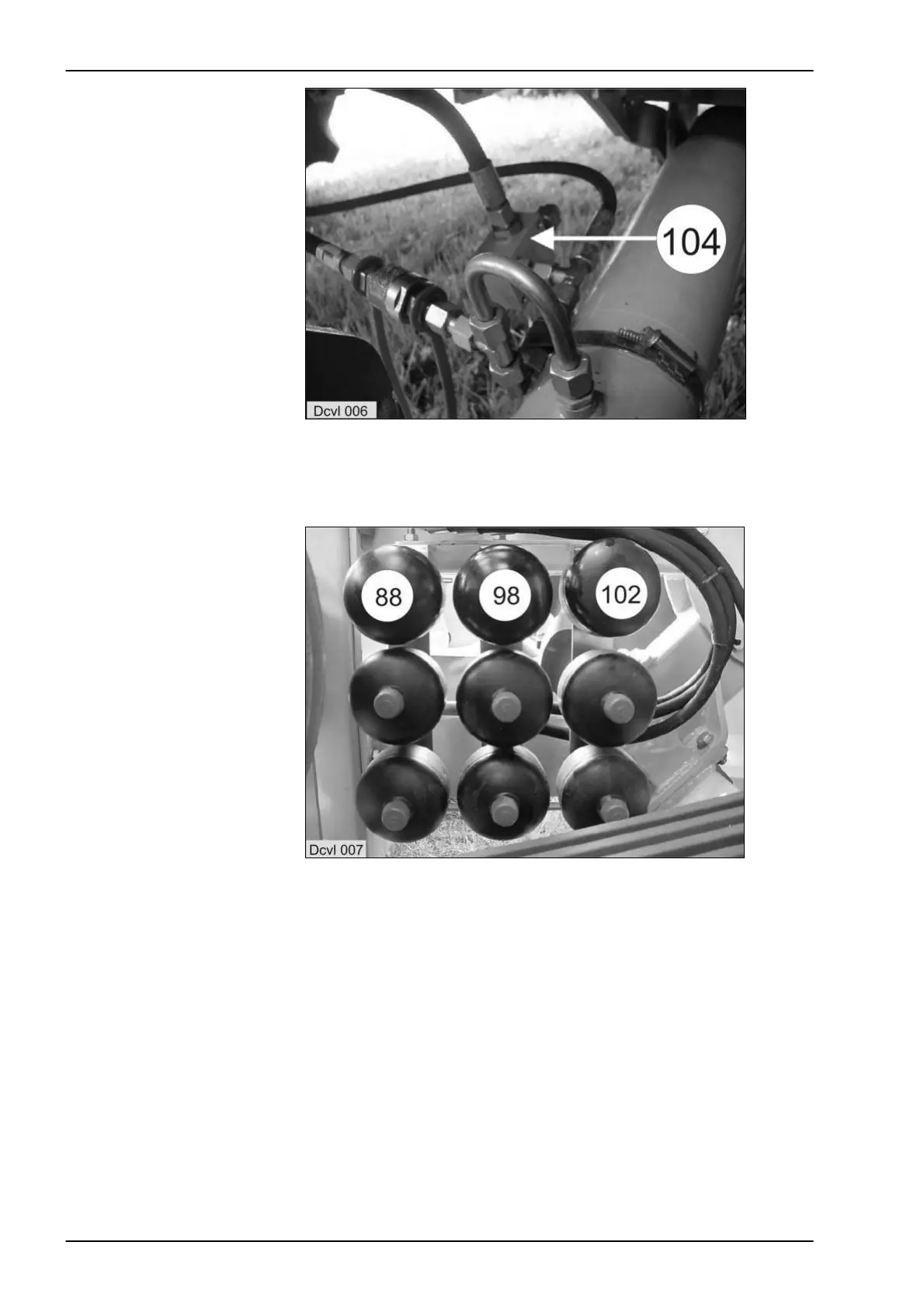

Jaguar front attachment
cylinder pressure relief
valve
104 Pressure relief valve 180 bar
Jaguar 800 series on the left of the front attachments cylinder,
Jaguar 600 series on the right of the front attachments cylinder
Accumulator
behind the right-hand cover
88 3 x right mower unit accumulator, charge pressure 35 bar, 0.75 litres
98 3 x left mower unit accumulator, charge pressure 35 bar, 0.75 litres
102 3 x centre mower unit accumulator, charge pressure 35 bar, 0.75 litres
