TIC JAGUAR 8550C Hydraulic / Electric System
10/04 1-5

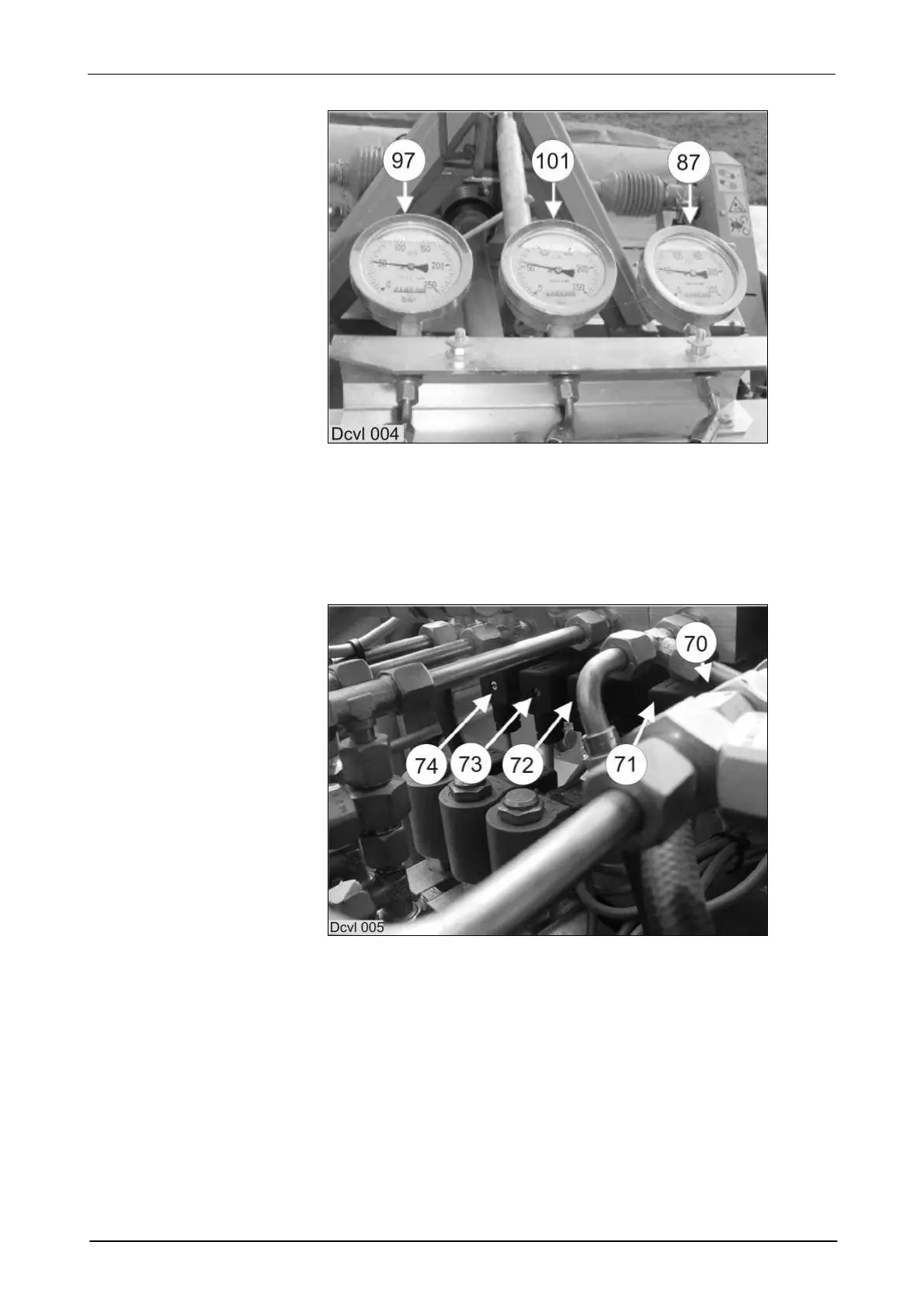

Pressure gauge for
ground pressure
87 Pressure gauge, right mower unit ground pressure
97 Pressure gauge, left mower unit ground pressure
101 Pressure gauge, centre mower unit ground pressure
All pressure gauges show a ground pressure of 50 bar with the mower
units lowered (working position).
Bucher 2/2 way valves
(under the cover)
70 2/2 way solenoid valve, fold out right and left mower unit
71 2/2 way solenoid valve, fold in right and left mower unit
72 2/2 way solenoid valve, raise/lower centre mower unit
73 2/2 way solenoid valve, Disco left load relief
74 2/2 way solenoid valve, Disco right load relief
