Hydraulic / Electric System JAGUAR 8550C TIC
1-4 10/04

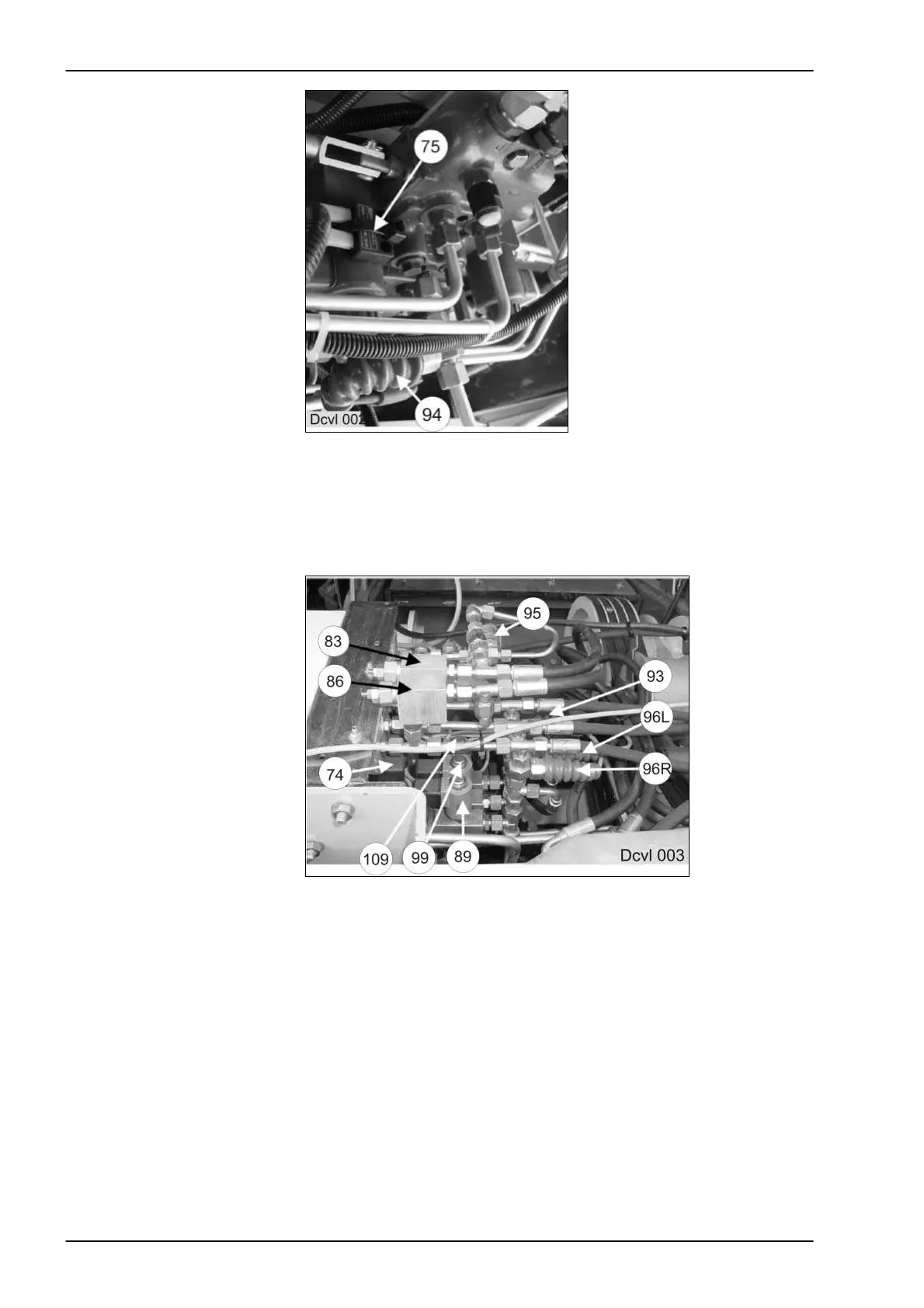

Directional control valves
subassembly
Jaguar 800 series, left side
75 Reed switch
94 Oil pressure switch 85 bar
Attention
The lettering on the Reed switch (75) must face the lift magnet of the 3/3
way solenoid valve = safe switching (the Reed switch in the picture is not
properly mounted).
Directional control valves,
oil pressure switches and
pressure relief valves
(under the cover)
74 2/2 way solenoid valve, raise/lower right mower unit
Next to this: the other Bucher directional control valves 73, 72, 71 and 70.
83 Pressure relief valve 180 bar (left mower unit)
86 Pressure relief valve 180 bar (left mower unit)
89 Right mower unit lock-up valve unit
(2/2 way solenoid valve, closed when deenergized)
93 Oil pressure switch 150 bar (normally open contact), front mower unit
96L Oil pressure switch 140 bar (normally closed contact), left mower unit
96R Oil pressure switch 140 bar (normally closed contact), right mower unit
95 Oil pressure switch 150 bar (normally open contact), fold out mower units
99 Left mower unit lock-up valve unit
(2/2 way solenoid valve, closed when deenergized)
109 Front mower unit lock-up valve unit
(2/2 way solenoid valve, closed when deenergized)
