18
H1/3 WHITE/BLUE remote start (-) activation input
This input comes from the factory set to 2 activation pulses. This means that it is necessary to have
2 consecutive ground pulses on the white/blue wire for the remote start to activate or to deactivate.
The same holds true for the remote control activation when set to a two pulse setting it is necessary
to press the button twice for the remote start to activate or deactivate.
NNOOTTEE::
When the activation pulse count can be programmed to 1, 2, or 3 pulses when changed it will affect
both activation inputs; the White/Blue wire and the remote control activation.
H1/4 BLACK/WHITE (-) 200 mA domelight supervision output

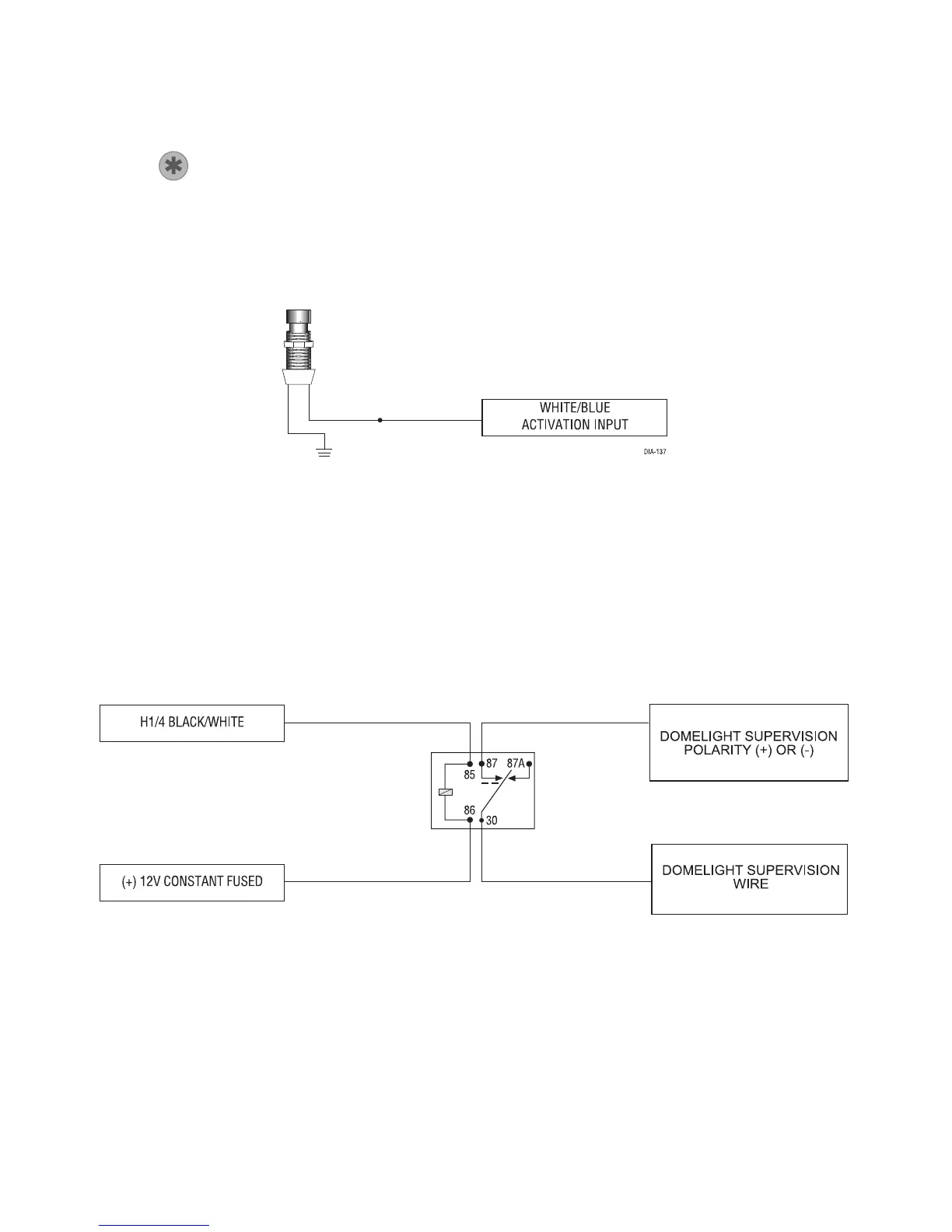

Connect this wire to the optional domelight supervision relay as shown below:
IIMMPPOORRTTAANNTT!!
This output is only intended to drive a relay. It cannot be connected directly to the domelight cir-
cuit, as the output cannot support the current draw of one or more light bulbs.
