32
shock sensor harness, 4-pin connector
GREEN (-) multiplex input, zone 2
Inputs shorter than 0.8 seconds will trigger the warning response, while inputs longer than 0.8 sec-
onds will trigger full alarm sequence and report Zone Two. If installing an optional dual stage sen-
sor, connect to the green wire as shown below. The diagram below eliminates the need for diodes
to isolate the sensors.

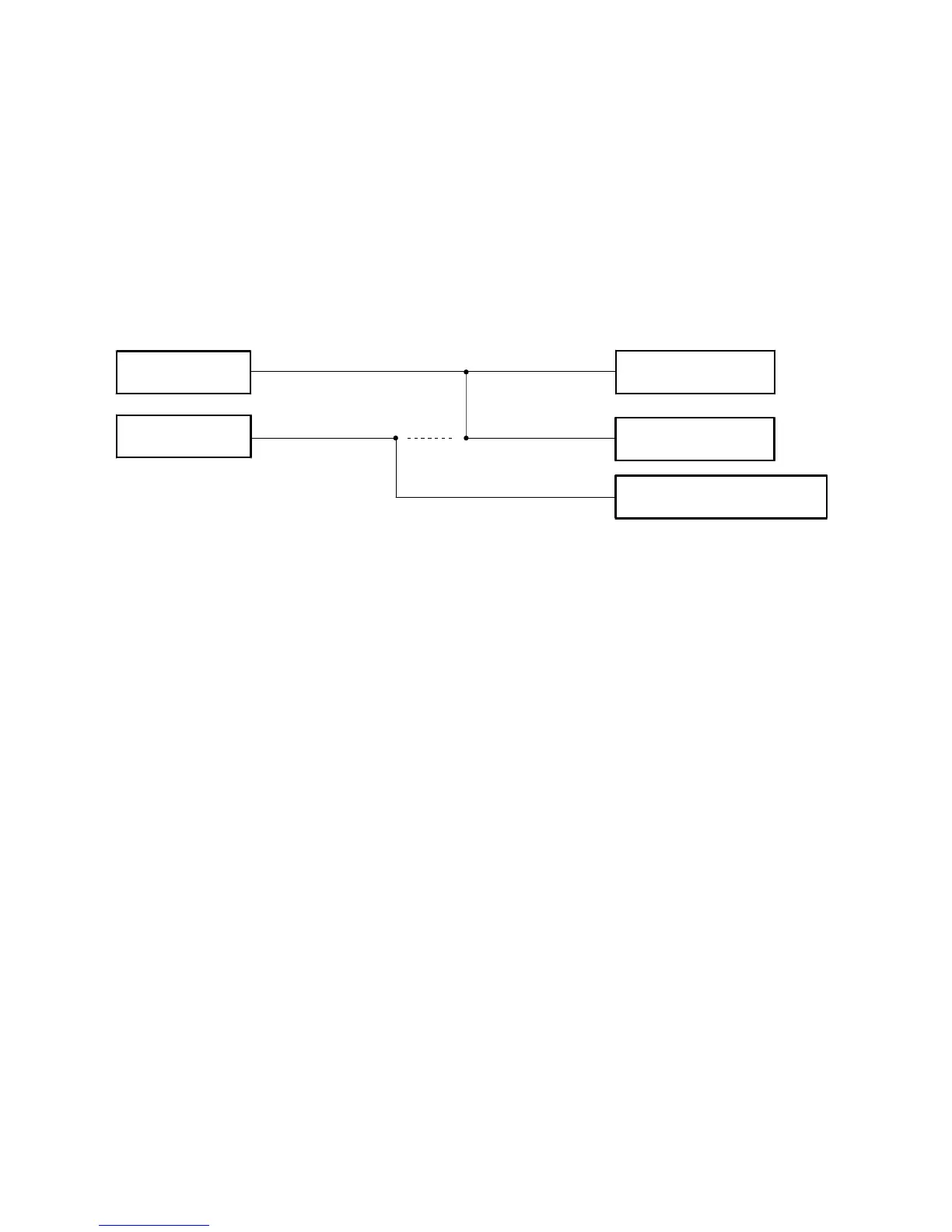

Diagram for adding optional dual stage sensor to green wire (Zone 2):
BLUE (-) multiplex input, zone 2
Inputs shorter than 0.8 seconds will trigger the warning response, while inputs longer than 0.8 sec-
onds will trigger full alarm sequence and will also report Zone Two.
RED and BLACK: RED is (+)12V constant, BLACK is (-) ground
NNoottee::
Do not use these for anything besides the plug-in shock sensor.
BLUE WIRE OF
PRE-WIRED PLUG
GREEN WIRE OF
PRE-WIRED PLUG
BLUE WIRE FROM PLUG-IN
SHOCK SENSOR
BLUE AND GREEN WIRES
FROM DUAL STAGE SENSOR
GREEN WIRE FROM
PLUG-IN SHOCK SENSOR
XX
CUT
