ENGLISH
EN
10 Operator’s Manual - BSW 28

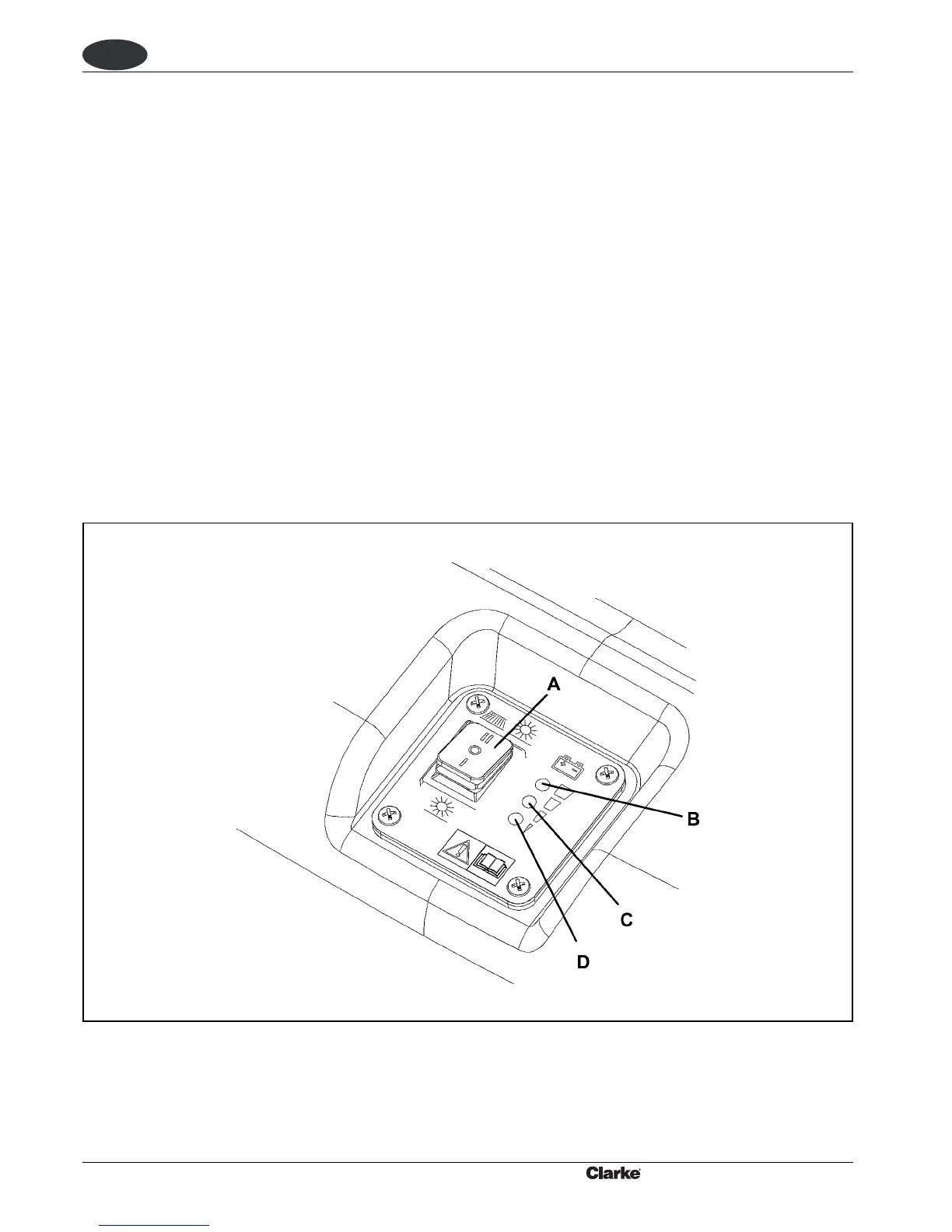

CONTROL PANEL
(See Fig. 2)
A. Main switch to turn on the vacuum system, the main broom and the side broom.
- When turned to “0” the machine is off
- When turned to “I” the vacuum system and main broom are turned on
- When turned to “II”, the vacuum system, main broom and side broom are turned on
B. Charged battery warning light (green)
When it is on, and the machine is running, it means that the battery is charged; residual autonomy depends on battery capacity
and working conditions.
When it is on, and the battery is charging, it means that the charging cycle has been completed and the battery is charged.
C. Semi-discharged battery warning light (yellow)
When it is on, and the machine is running, it means that the battery is nearly discharged; residual autonomy is 10 minutes
approximately.
When it is on and the battery is charging, it means that the charging cycle is nearly completed and the battery is nearly charged.
D. Discharged battery warning light (red)
When it is on, and the machine is running, it means that the battery is discharged; the autonomy is over, the battery must be
recharged (see the procedure in Maintenance chapter).
When it is on and the battery is charging, it means that the charging cycle is in progress.
Figure 2
