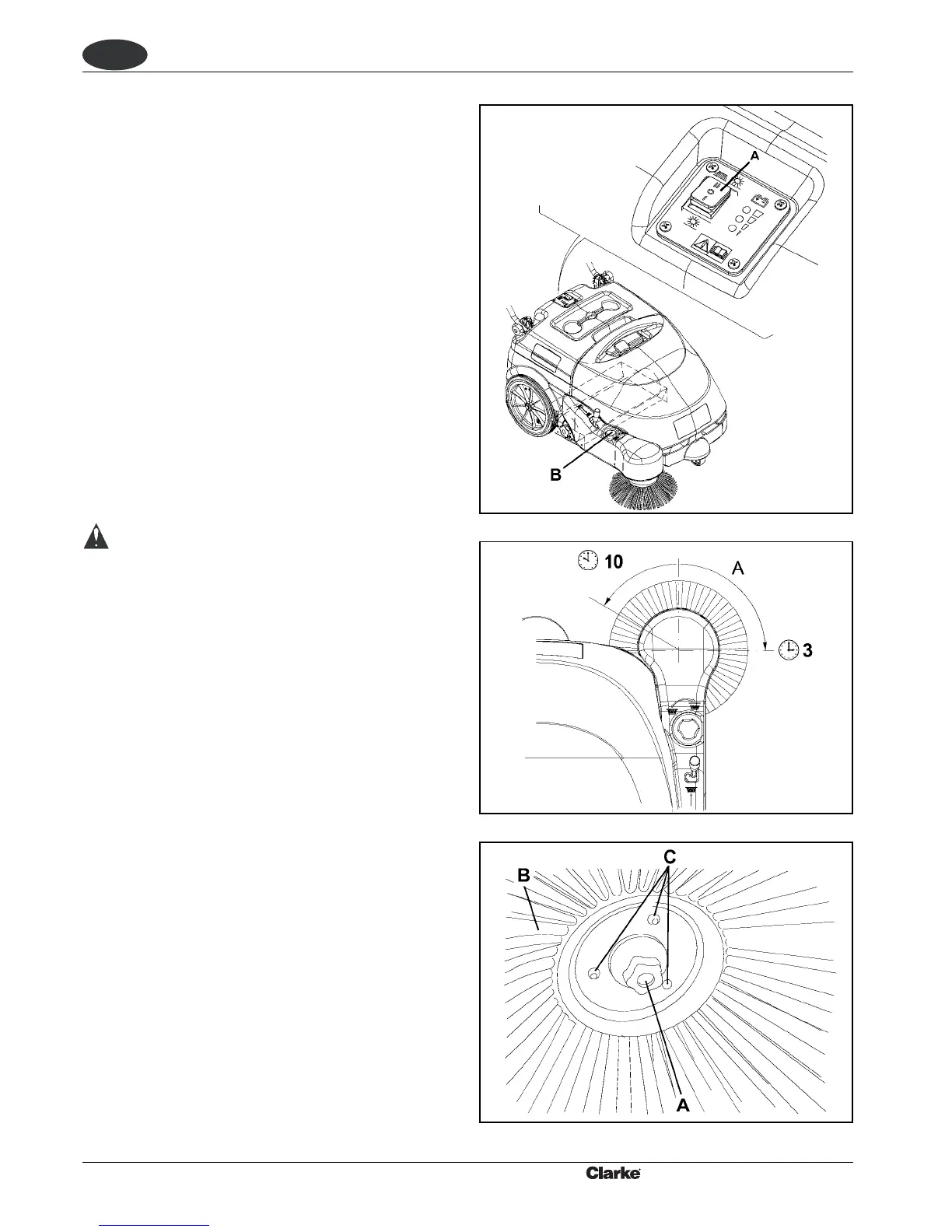

Page #14 background imageLoading...
Page #14 background image
ENGLISH
EN
14 Operator’s Manual - BSW 28
SIDE BROOM HEIGHT CHECK AND ADJUSTMENT
1. Check the side broom height according to the following
procedure:
Drive the machine on a smooth and level ground, and
lower the side broom.
Keep the machine stationary and rotate the side
broom for few seconds.
Turn off the side broom by pressing the switch (A, Fig.
6), then lift it and move the machine.
Check that the side broom print is as shown in the
figure (A, Fig. 7): the side broom must touch the
ground along a circle arc ranging from “10 o'clock”
position to “3 o'clock” position.
If the print is not as specified, adjust the broom height
as shown in step 2.
2. Turn the knob (B, Fig. 6) clockwise or counter-clockwise
to adjust the broom height from the ground.
3. Perform step 1 again to check the proper adjustment of
the side broom height.
4. When the broom is too worn to be adjusted, replace it as
shown in the next paragraph.
SIDE BROOM DISASSEMBLY/ASSEMBLY
1. Drive the machine on a smooth and level ground.
2. Turn the main switch (A, Fig. 6) to “0”.
3. Lift the side broom.
4. Loosen the knob (A, Fig. 8) inside the side broom, then
remove the broom (B) by disengaging it from the pins (C).
5. Install the new broom on the machine engaging it on the
pins (C), then tighten the knob (A).
6. Adjust the side broom height as shown in the previous
paragraph.
CAUTION:
It is advisable to wear protective gloves when
replacing the side broom because there can be
sharp debris between the bristles.
Figure 6
Figure 7
Figure 8
