MAIN BROOM HEIGHT CHECK AND ADJUSTMENT
1. Check the main broom height according to the following
procedure:
– Drive the machine on a smooth and level ground.
– Keep the machine stationary and rotate the main
broom for a few seconds.
– Turn off the main broom by pressing the switch (A, Fig.
9), then move the machine.
– Check that the main broom print (A, Fig. 10), along its
length, is 1.2 - 2 in (3 - 5 cm) wide.
– If the print (A) is not within specifications, adjust the
broom height as shown in step 2.
2. Turn the main switch (A, Fig. 9) to “0”.
3. On both sides of the machine, loosen the knob (A, Fig.
11).
4. Grasp the support (B, Fig. 11) on the points (C) and move
it outward, then lift it or lower it to change the main broom
height; for height variation, refer to the indicator (D). Then
tighten the knob (A) on both sides of the machine.
5. Perform step 1 again to check proper adjustment of main
broom height.
6. When the broom is too worn to be adjusted, replace it as
shown in the next paragraph.
CAUTION:
An excessive print (larger than 2 in (5 cm)) of the
main broom can lead to machine malfunction and
overheating of its moving and electrical parts, thus
reducing machine life.
Pay careful attention when performing the
above-mentioned checks, and always use the
machine according to the instructions.

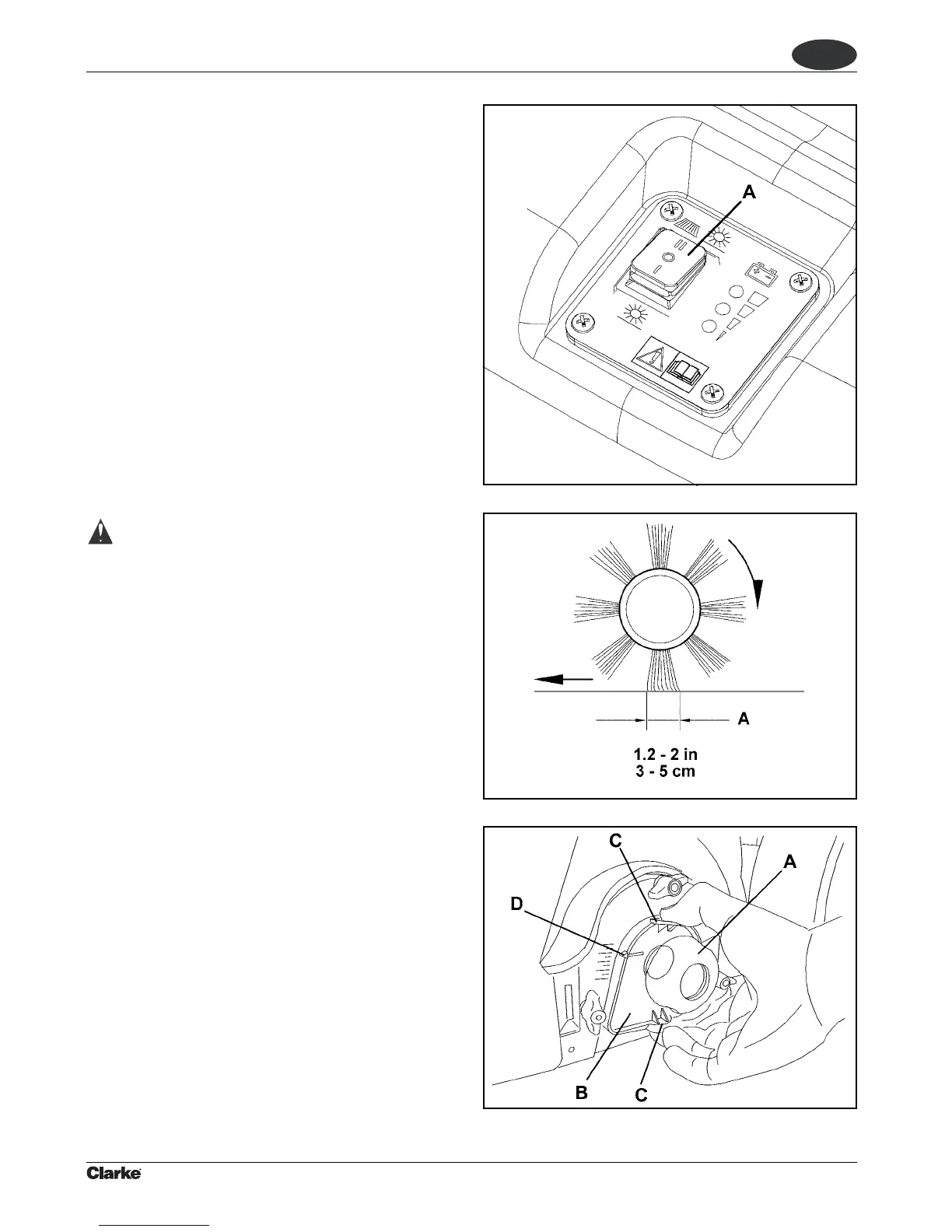

Figure 9
Figure 10
Figure 11
