Clarke Image 26B User Manual

Clarke
®
Operator's Manual IMAGE 26B Page -21-
Clarke
®
Image 26B

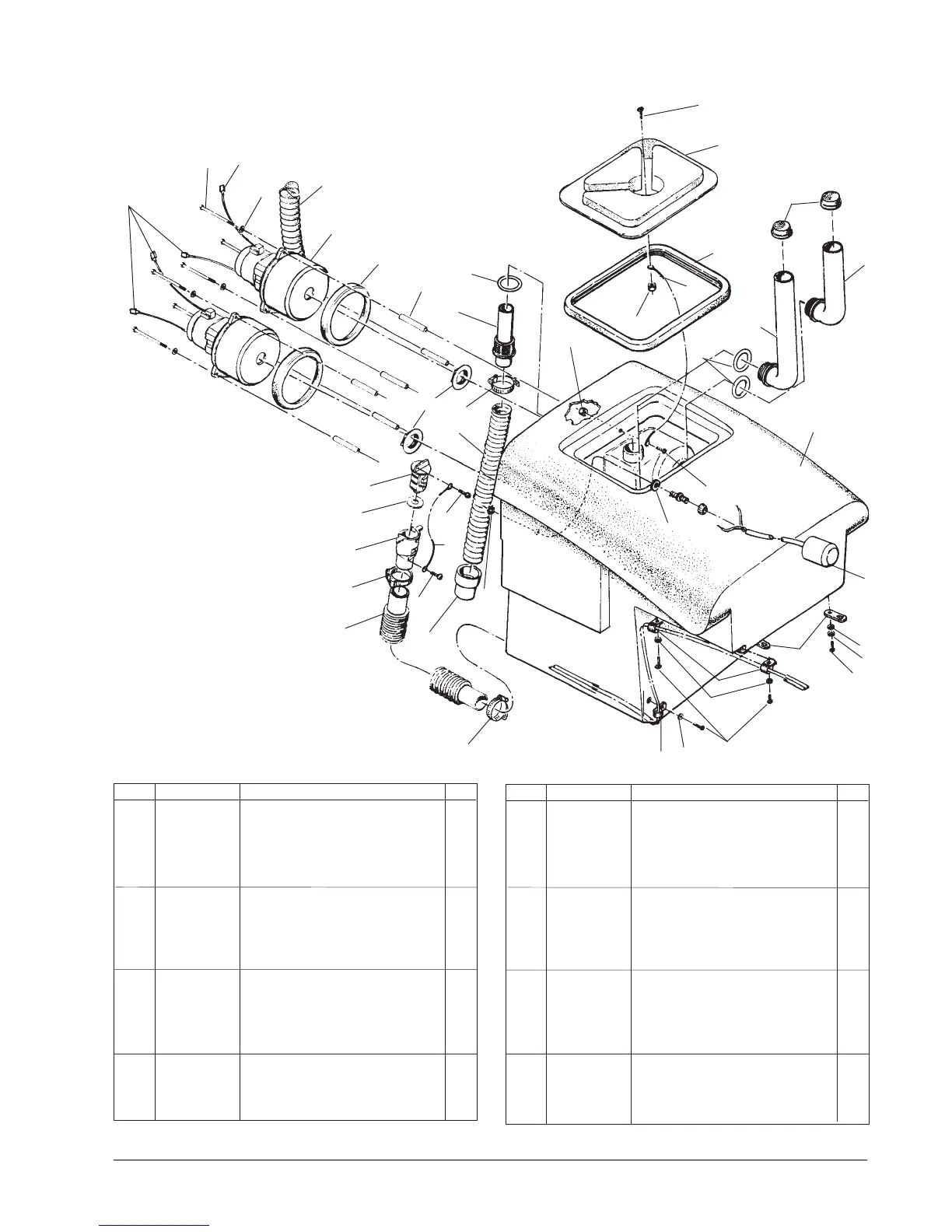

Recovery Tank and Hose Assembly Drawing and Parts List 8/03
1 980657 Lock Washer 4
2 36204B Lid, Recovery 1
3 58069A Strainer, Recovery Tank 2
4 39339B Standtube, Vac 1
5 39340B Standtube, Vac 1
6 837304 O-Ring 3
7 34265A Gasket, Recovery Lid 1
8 38020A Strap 1
9 81110A Nut, 10-24 ESNA 2
10 962666 Screw, 10-24 x
5
/8 Pan SS 2
11 30183A Tank, Recovery 1
12 47419A Switch, Float 1
13 98465A Clamp, Battery Cable 3
14 85806A Screw, ¼-20 x ½ 7
15 65716A Solution/Recovery Bracket 2
16 872010 Clamp, Hose 2
17 51863A Cuff 1
18 82100A Nut, Lock 1
19 962943 Screw, 8-18 x ½ PH 1
Ref Part No. Description Qty
20 30415A Hose, Drain 1
21 832002 Clamp, Drain Valve 1
22 839401 Valve, Drain 1
23 833407 Gasket, Drain 1
24 833901 Drain Valve Handle 1
25 52206A Chain 1
26 962987 Screw 1
27 30011A Hose, Shoe to Tank 1
28 920797 Nut 2
29 30010A Adapter Asm. , Vac 1
30 58533A Spacer, Vac Motor 6
31 643418 Gasket, Vac Motor 2
32 45019A Vac Motor 2
33 87026A Washer, Flat ¼ 6
34 85728A Screw, ¼-20 x 4 6
35 30448A Hose, Vac Exhaust 1
36 59877A Washer, O-Ring 1
37 47905A Terminal 4
38 980646 Washer 7
Ref Part No. Description Qty
10
2
3
4
5
6
7
8
9
9
10
11
12
13
14
13
16
17
18
19
20
21
22
23
24
25
26
27
16
28
29
6
30
31
32
33
34
15
38
14
38
36
37
37
35
1
38
