Operator's Manual IMAGE 26B Page -29-
Clarke
®
Image 26B

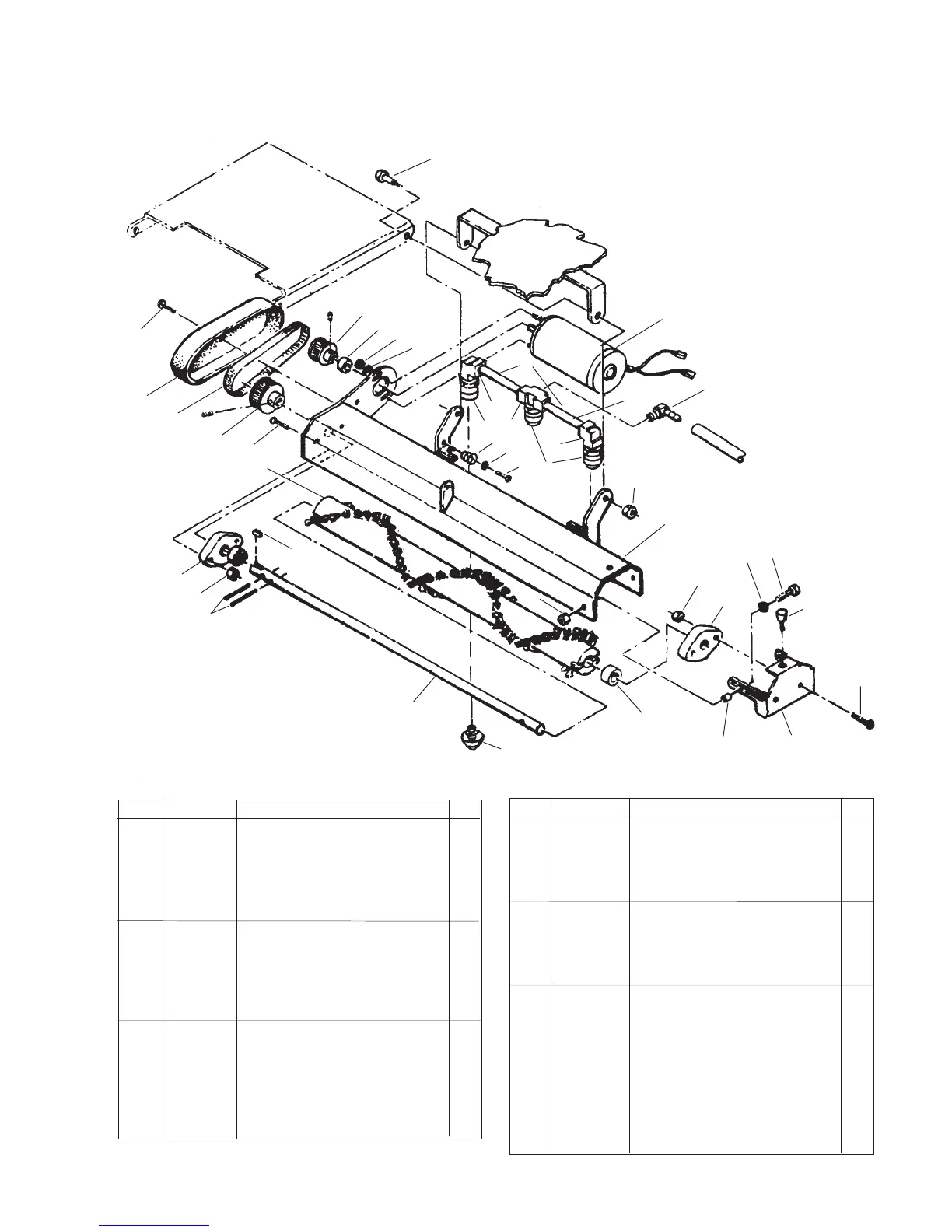

Brush Assembly Drawing and Parts List 8/04
Ref Part No. Description Qty
1 80041A Bolt, Shoulder 2
3 44310A Motor, Brush 1
3a 40832A Brush, Carbon 2
4 732870 Elbow,
3
/8 1
5 56365A Nipple, Brass 4" 2
6 53639A Elbow, Brass ¼ NPT 2
7 51369A Tee, Brass ¼ NPT 1
8 51370A Nozzle, Pre-Spray 3
8a 52550A Nozzle, Pre-Spray Plastic 3
9 53426A Spring 1
10 980982 Washer, Flat #10 1
11 85393A Screw, 10-32 x ¼ 1
12 61542B Brush Housing 1
13 81102A Nut, ¼-20 ESNA 4
14 53399A Bearing Asm. 2
15 58548A Spacer, Brush Door 2
16 81109A Nut, 8-32 ESNA 2
17 55518A Knob, Clamping 1
18 60089A Door, Brush End 1
Ref Part No. Description Qty
19 38708A Spacer, Brush End 1
20 962027 Screw, 8-32 x
5
/8 2
21 67481A Shaft, Brush 1
22 50436A Pin, Brush Drive 2
23 915082 Key 1
24 30167A Brush, Maintenance 1
24a 30166A Brush, Restoration 1
25 57247A Pulley, Brush 1
26 50928A Belt 1
27 30029A Cover, Belt 1
28 85395A Screw, ¼-20 x .50 2
29 57268A Pulley, Motor 1
30 58517A Spacer, Motor 1
31 980646 Washer, Flat 2
32 920110 Nut 2
33 85390A Screw, ¼-20 x 1¼ 4
34 920208 Nut, Hex ¼-20 2
35 980614 Washer, Lock 2
36 10220A Bar Asm., Pre-Spray (incl. 4, 5, 1
6, 7 & 8)
1
3
4
5
6
6
7
8
8
9
10
11
12
13
14
31
20
17
18
19
16
21
22
13
14
23
24
25
26
27
28
29
30
33
15
33
34
35
32
8
36
