Page -32- Clarke
®
Operator's Manual IMAGE 26B
Charger Model Number
40506A 40507A 40505A
Ref # Description Part # Part # Part #
1 Charger Case 42503A 42504A 51959A
2 Transformer 48400A 48412A 48401A
3 Electronic Timer Kit 41102A 41103A 41103A
4 Capacitor, 6 Mfd., 660 V.A.C. 912132 912132 912132
5 Heat Sink Assembly 912212 912212 912212
6 Ammeter 40200A 40200A 40200A
7 Fuse Assembly 912382 912382 912382
8 Strain Relief, A.C. Cord 837525 837525 837525
9 Strain Relief, D.C. Cord 747553 747553 747553
10 D.C. Cord Assembly 51973A 51973A 51973A
11 A.C. Cord Assembly 51974A 908947 908947
12 D.C. Plug 911185 911185 911185
D.C. Plug Lock Key 795020 795020 795020
WARNING: All electrical repairs must be performed by qualified personnel only.

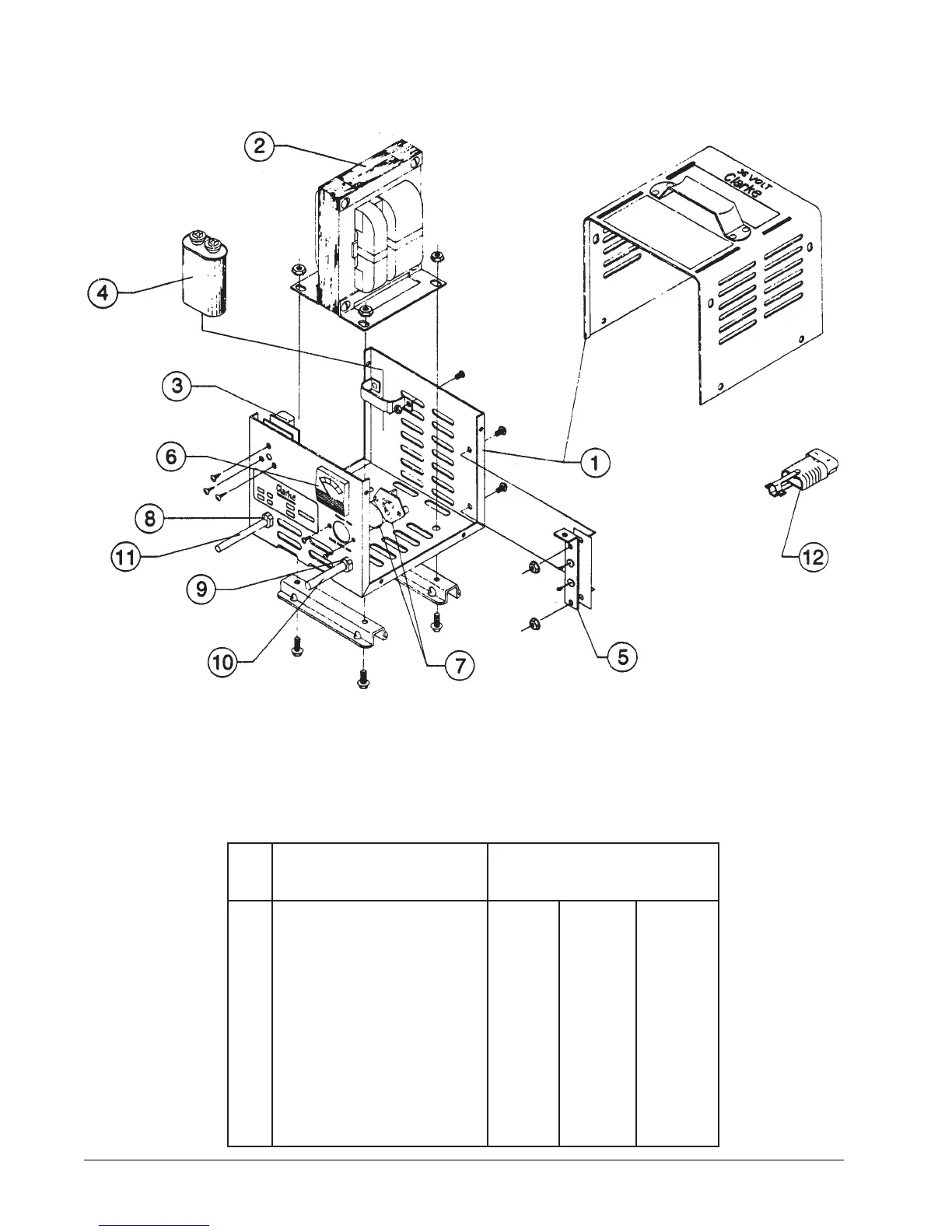

PARTS LIST FOR BATTERY CHARGERS
40506A - 36 Volt D.C., 25A, 115 Volt A.C., 60 Hz
40505A - 36 Volt D.C., 25A, 230 Volt A.C., 50 Hz
40507A - 36 Volt D.C., 25A, 230 Volt A.C., 60 Hz
Clarke
®
Image 26B
36 Volt Battery Charger (40506A, 40507A, 40505A) 10/02
