Operator's Manual IMAGE 26B Page -27-
Clarke
®
Image 26B

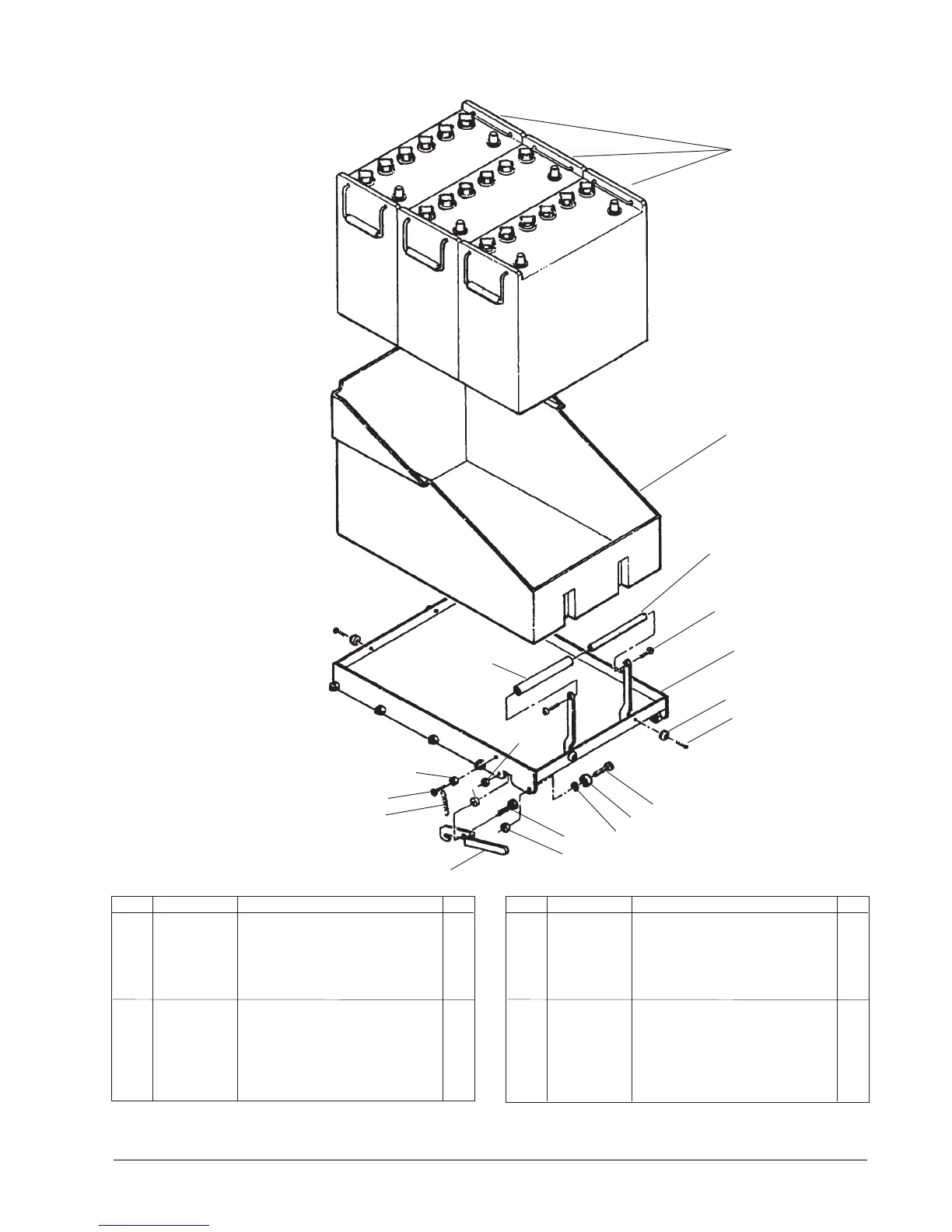

Battery Tray Assembly Drawing and Parts List 10/02
1 871334 Battery, 195 AH 3
2 39008B Tray, Battery 1
3 54936A Handle, Grip 1
4 85376A Screw, ¼-20 x
5
/8 2
5 60001A Battery Tray 1
6 51609A Bumper 4
7 962350 Screw, 10-32 x ½ 1
8 962986 Screw 10
9 902648 Bearing 10
10 980651 Washer 10
11 920160 Nut 10
Ref Part No. Description Qty
12 962495 Screw 1
13 61434A Arm, Battery Tray 1
14 668311 Spring 1
15 920224 Nut, Hex 10-32 1
16 81102A Nut, ¼-20 ESNA 1
17 34705A Hose, Clear 6" 1
18 962929 Screw 4
19 61435A Bushing 1
NI 41217A Cable, 16" 2
NI 40532A Cable Asm., Battery 1
NI 40506A Charger, 36VDC 1
Ref Part No. Description Qty
1
2
3
4
5
6
18
8
9
10
12
11
13
14
7
15
16
17
19
