Clarke Image 26B - Solution Tank Assembly; Parts List

Page -24- Clarke
®
Operator's Manual IMAGE 26B
Clarke
®
Image 26B

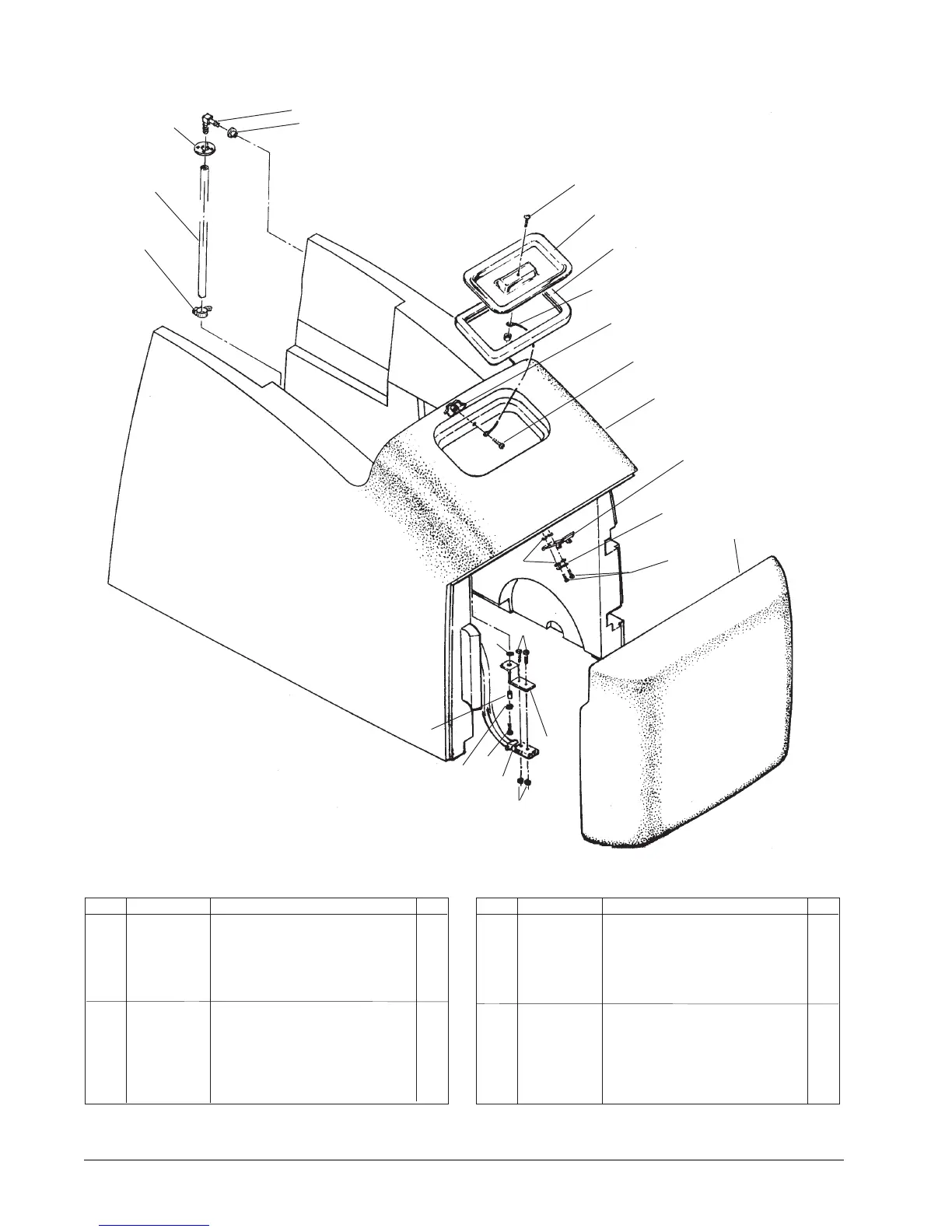

Solution Tank Assembly Drawing and Parts List 10/02
1 722030 Clamp, Hose #6 1
2 55189A Elbow, ½ 2
3 31242A Bushing, ½ Fitting 2
4 34256A Gasket 1
5 832322 Cover, Solution Tank 1
6 38020A Chain 1
7 81110A Nut, 10-24 ESNA 2
8 962666 Screw, 10-24 x
5
/8 Pan SS 2
9 38820A Tank, Solution 1
10 65506A Latch, Bridge 1
11 980646 Washer, ¼ Flat 4
Ref Part No. Description Qty
1
2
3
8
5
6
7
8
9
10
11
13
12
14
15
4
21
16
17
18
13
20
19
12 980657 Washer, ¼ Lock 2
13 85806A Screws, ¼-20 x
3
/4 3
14 32416A Cover, Front 1
15 61537A Bracket, Bat Plug 1
16 608210 Spacer 1
17 87618A Nylon Washer 2
18 41162A Cable, Asm. Console 1
19 962212 Screw 2
20 920056 Nut 2
21 30463A Hose 1
22 60218A Plug, Drain 1
Ref Part No. Description Qty
22
17
