Clarke Image 26B User Manual

Clarke
®
Operator's Manual IMAGE 26B Page -25-
Clarke
®
Image 26B

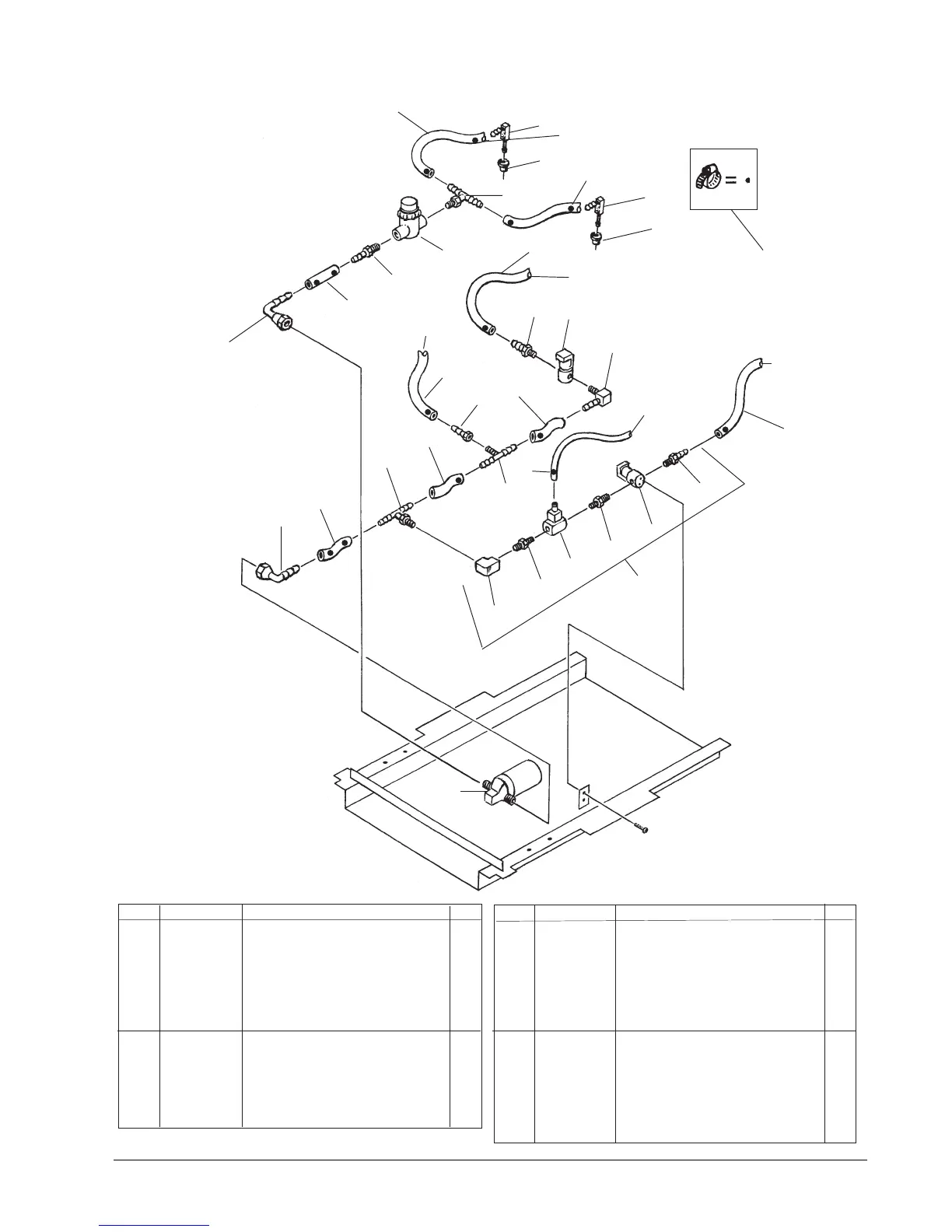

Plumbing Detail Drawing and Parts List 3/04
1 69404A Hose 9" 1
2 35147A Hose
3
/8 14" 2
3 59016A Tee, Branch 3
4 53050A Strainer, Bowl 1
4a 58061B Strainer, Screen 1
4b 54369A Gasket, viton 1
4c 90018A Bowl, Filter 1
5 170030 Hosebarb
3
/8-¼ NPT 3
6 694112 Hose 3
7 45950A Pump 1
7a 52418A Head Replacement, Pump 1
8 35148A Hose 1
10 53639A Elbow 1
11 851144 Adaptor 1
12 51207A Injector 1
13 50248A Clamp, Hose 11
14 59623A Valve, Solution 2
15 30425A Hose 1
16 51518A Bushing, Hose 2
17 35168A Hose 1
18 51526A Elbow 2
19 697501 Reducer, ¼ to
1
/8 1
20 10229A Injector Asm. (incl. 5, 10, 11, 12, 1
14 & 19)
21 55167A Hosebarb 1
22 732870 Elbow 1
23 722021 Hose Clamp 1
Ref Part No. Description Qty
Ref Part No. Description Qty
1
2
18
16
18
16
From fresh
water tank
From fresh
water tank
To pre-spray jets
From chemical jug
3
4 a, b, c
5
6
7
15
5
14
22
To rinse jets
9
3
6
7
10
19
12
11
14
5
2
7
7a
13
20
8
17
21
3
To
accessory
connector
23
