Step 4

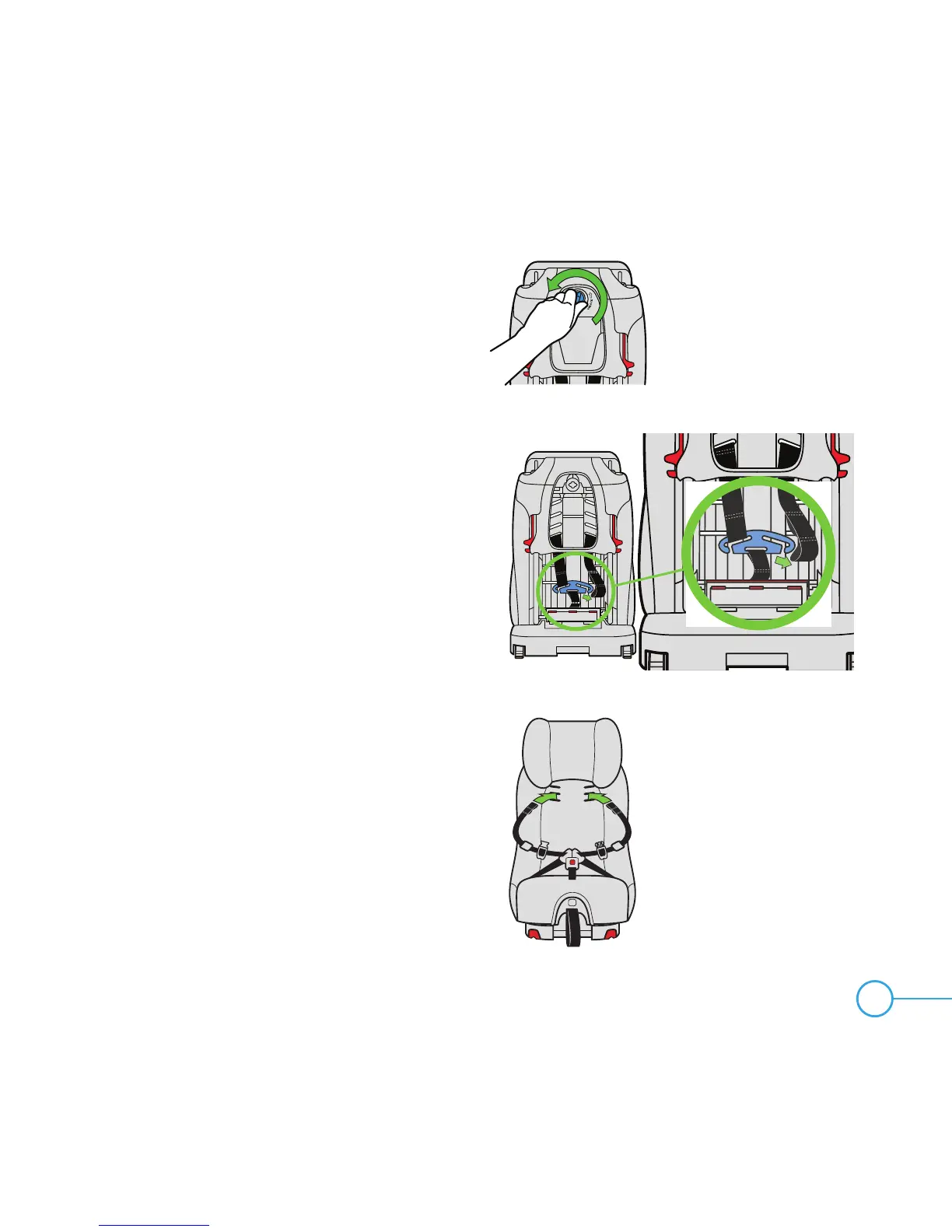

Remove Shoulder Harness Access Panel from
back of car seat:
• Twist the Access Panel Lock counter-
clockwise and pull to remove as shown
in Figure 33.
Step 5
Remove loops at ends of Shoulder Harness
Straps from Metal Harness Plate by sliding
strap out through slot in Metal Harness Plate
as shown in Figure 34.
Step 6
From front of car seat, pull Shoulder Harness
Straps out of seat back.
SHOULDER HARNESS RETHREADING
Step 1
Check that Shoulder Harness Straps are not
twisted and from front of seat, insert Shoulder
Harness Straps through the desired Shoulder
Harness Slots as shown in Figure 35. Straps
must go through the Shoulder Harness Slots
at the same height on each side
Figure 34
