63
Figure 89
Step 12

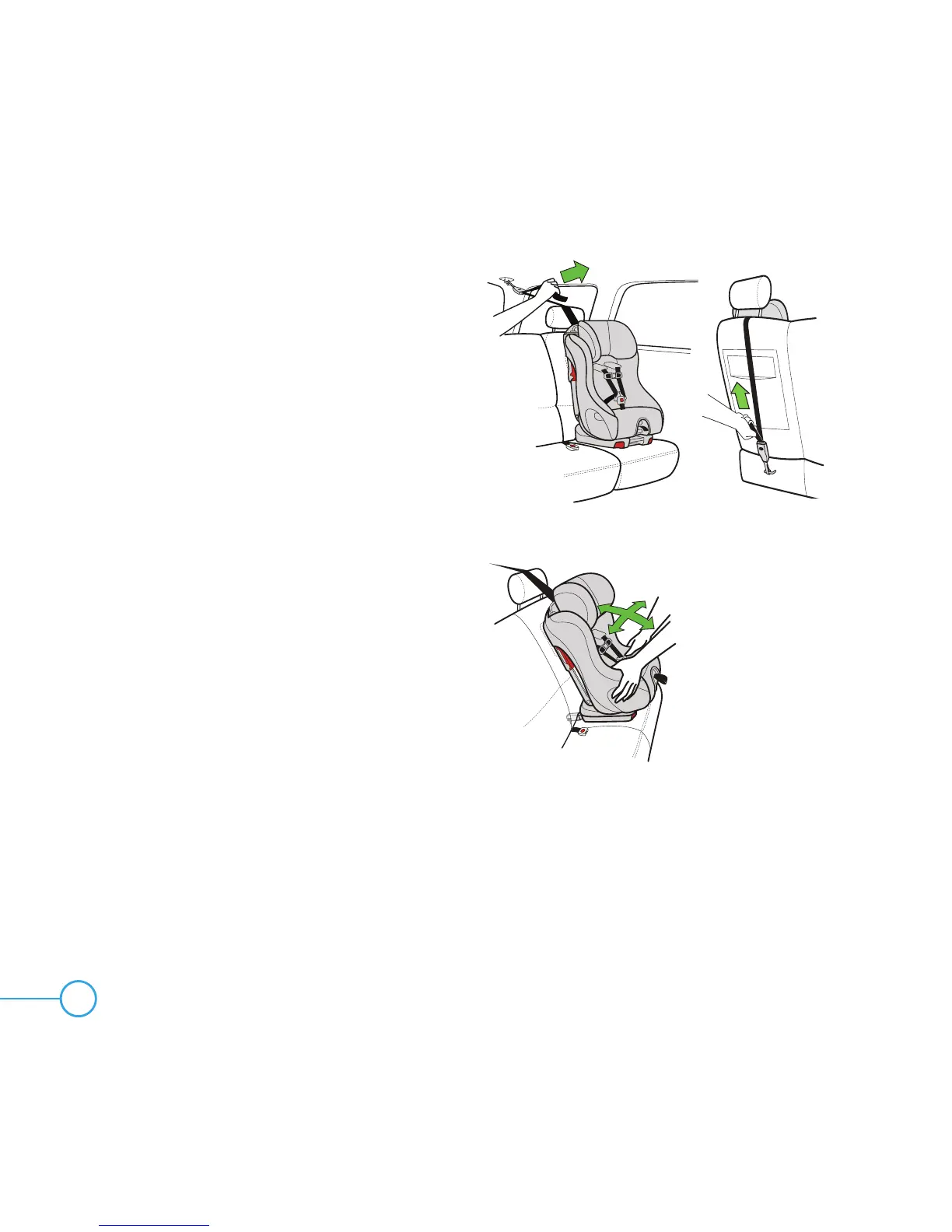

Attach Tether Hook to vehicle top
tether anchor as shown in Figure 88a or
Figure 88b and pull firmly on free end of
strap until Top Tether is snug.
Refer to vehicle owner’s manual for
recommended Top Tether routing and
identification of top tether anchor point.
Step 13
Check for secure installation. Gripping car
seat at top of armrests, pull car seat front
to back and left to right to check for secure
installation as shown in Figure 89. LATCH
system and Top Tether must stay tight and car
seat should not move more than 1 in. (2.5 cm)
in any direction.
• If LATCH system does not stay tight or
car seat cannot be securely installed,
try a different LATCH location or install
using the vehicle belt, see “Installing
Forward-Facing Car Seat With Vehicle
Belt” on page 66.
Figure 88a
Figure 88b
