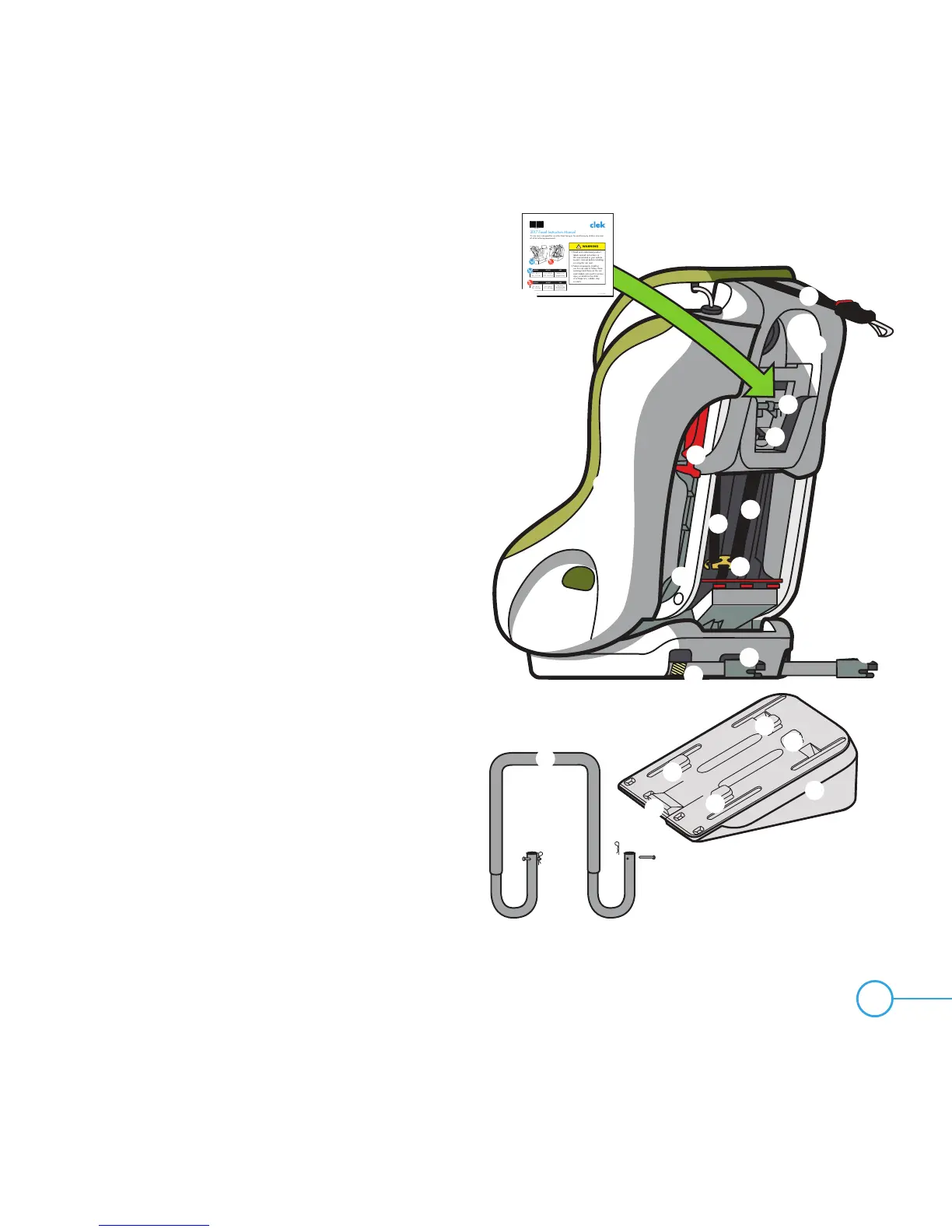

Car Seat Features – Back
23 Seat
24 Top Tether
25 Tether Adjuster
26 Tether Hook
27 Tether Storage (behind manual)
28 Forward-Facing Shoulder Belt Lock-offs
29 Shoulder Harness Access Panel
30 Troubleshooting Tool
31 Shoulder Harness Straps
32 Metal Harness Plate
33 Rigid LATCH Connectors
(Forward-Facing Use)
34 Yellow and Black Rigid LATCH Label
(NEVER use without Top Tether
while visible)
35 Forward-Facing Belt Path
36 Instruction Manual (stored in Shoulder
Harness Access Panel)
37 Rear-Facing Base
38 Rear-Facing Base Retention Hooks
39 Rear-Facing Base Release Lever
40 Anti-Rebound Bar
41 Anti-Rebound Bar Locking Pins and
Locking Pin Clips
37
38
38
38
38
39
40
41 41
23
24
25
26
28
29
31
30
32
31
34
33
27
WARN ING
• Read and understand product
labels and all instructions in
this manual and in your vehicle
owner’s manual before installing
or using this car seat.
• Failure to properly install or
use this car seat or follow these
warnings and those on this car
seat’s labels can result in serious
injury or death to the child
in a sharp turn, sudden stop
or crash.
C01-0602-D1-US
2017 Foonf Instruction Manual
This car seat is designed for use either Rear-Facing or For ward-Facing by children who meet
all of the following requirements:
HEIGHT WEI GHT AGE
25 – 43 in.
64 – 110 cm
14 – 50 lb
6.4 – 22.7 kg
Able to sit
upright alone
HEIGHT WEIG HT AGE
30 – 49 in.
76 – 124 cm
22 – 65 lb
10 – 29.5 kg
2+ years
recommended
(1 year min.)
FO17US
December 2016
