System Map: Front & Rear Views

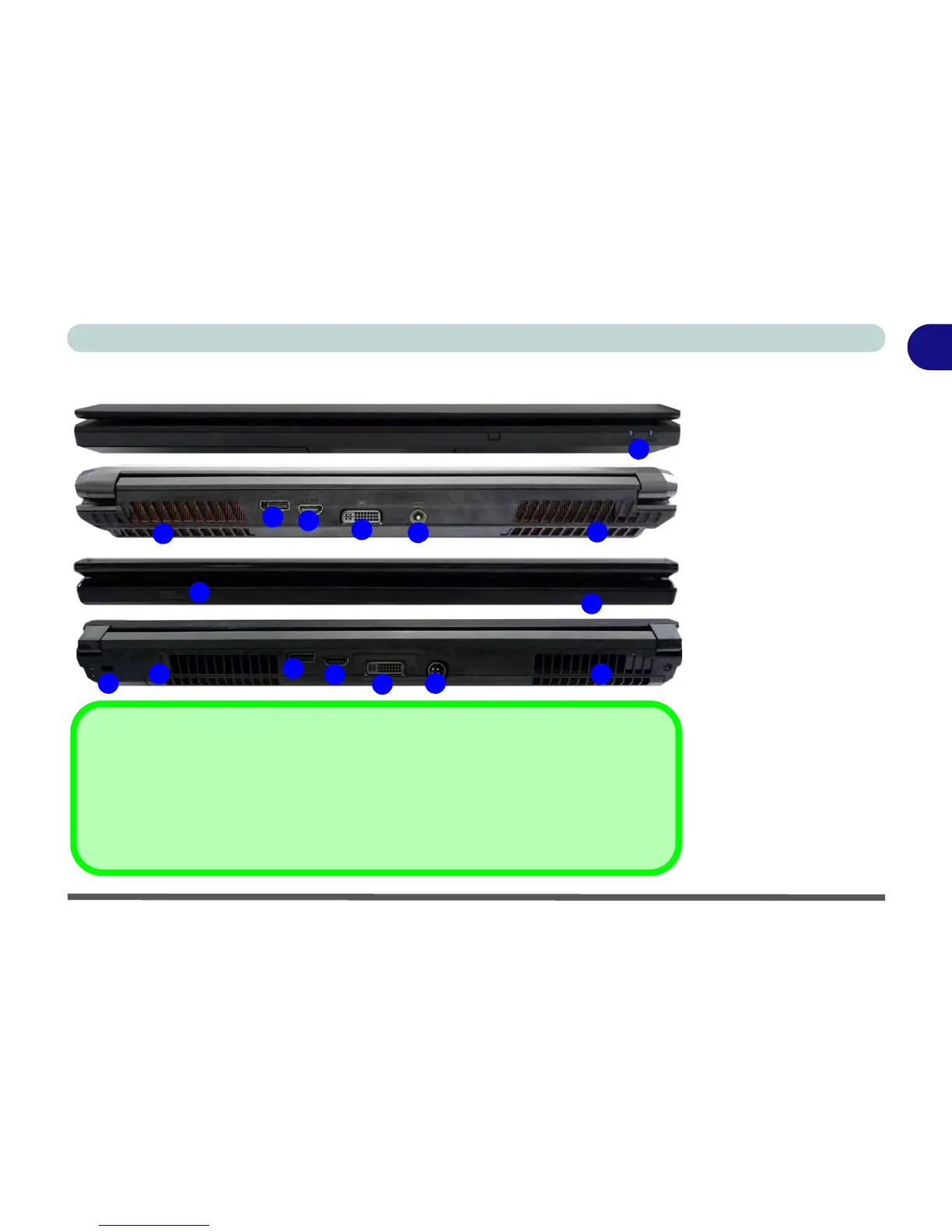

Figure 1 - 7
Front View
1. LED Power Indica-
tors
2. Vent/Fan Intake
3. Display Port
4. HDMI-Out Port
5. DVI-Out Port
6. DC-In Jack
7. Security Lock Slot
(Model C Only)
1
3
4
6
2
5
2

HDMI Port
Note that the HDMI Port supports video and audio signals to attached external displays (see
“HDMI Audio Configuration” on page C - 21).
Note that THX TruStudio Pro will be disabled when you are connecting to an external display
through an HDMI connection (see “THX TruStudio Pro Audio” on page 7 - 75).
Models A & B
Models A & B
1
3
4
6
2
5
2
Model C
7
8
Model C
