Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction
Mainboard Overview - Top (Connectors)
1
2
3
4
5
6
7
8
9
10
11

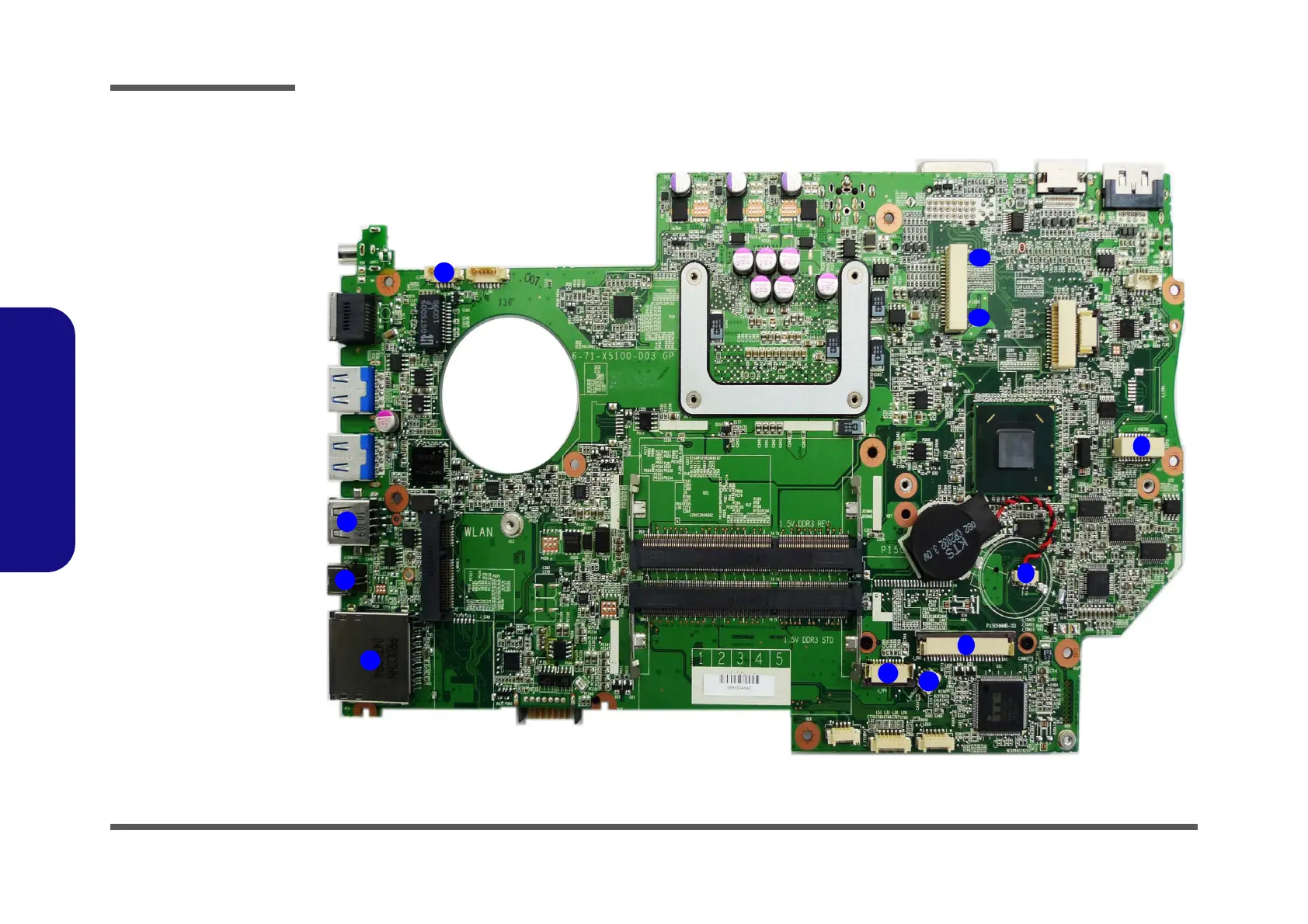

Figure 9
Mainboard Top
Connectors
1. CCD Connector
2. USB 2.0 Port
3. Mini-IEEE 1394a
Port
4. Multi-in-1 Card
Reader
5. TouchPad Cable
Connector
6. Microphone
Cable Connector
7. Keyboard Cable
Connector
8. CMOS Battery
Connector
9. Audio Cable
Connector
10. LCD Cable
Connector 2
11. LCD Cable
Connector 1
