Removing the Optical (CD/DVD) Device
1. Turn off the computer, and remove the battery (page 2 - 5).
2. Locate the secondary hard disk bay cover and remove screws & (Figure 5a
).
3. Remove the hard disk bay cover (Figure 5b
).
4. Remove the screw at point (Figure 5c
), and use a screwdriver to carefully push out the optical device out of
the bay at point (Figure 5d
).
5. Reverse the process to install any new optical (CD/DVD) device
.

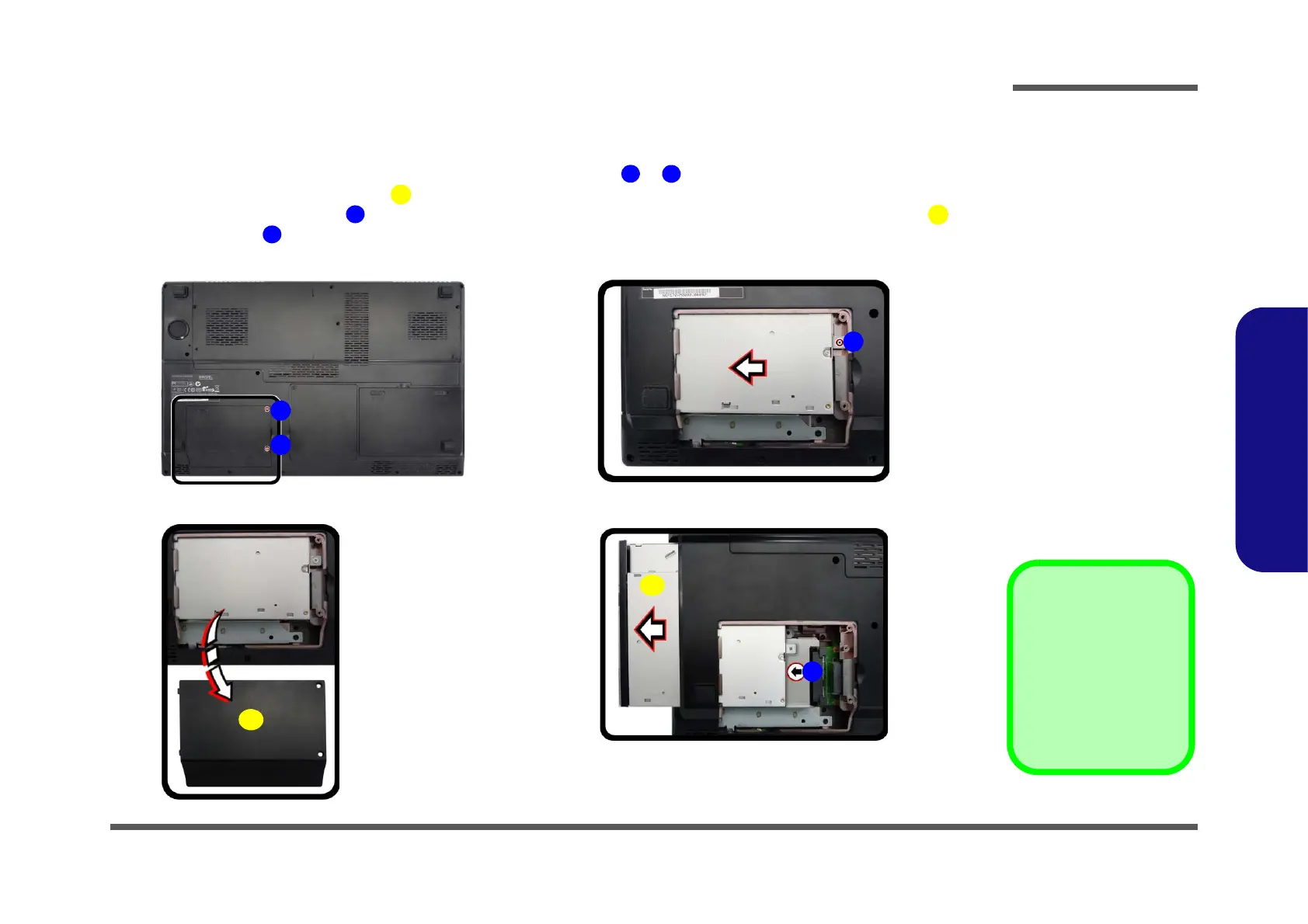

Figure 5
Optical Device
Removal
a. Locate the secondary
hard disk bay cover and
remove the screws.
b. Remove the cover.
c. Remove the screw.
d. Push the optical device
out off the computer at
point 6.
1
2
6
3
4
6
5
6

3. Secondary HDD Bay
Cover
5. Optical Device
• 3 Screws
1
2
4
3
6
5
a. c.
d.b.
