Removing the Secondary System Memory (RAM)
Memory Upgrade Process
1. Turn off the computer, and turn it over, remove the battery (page 2 - 5) and the component bay cover.
2. Remove the top cover module
(Figure 10a).
3. Remove screws - (Figure 10a
).
4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable (Figure 10c
).

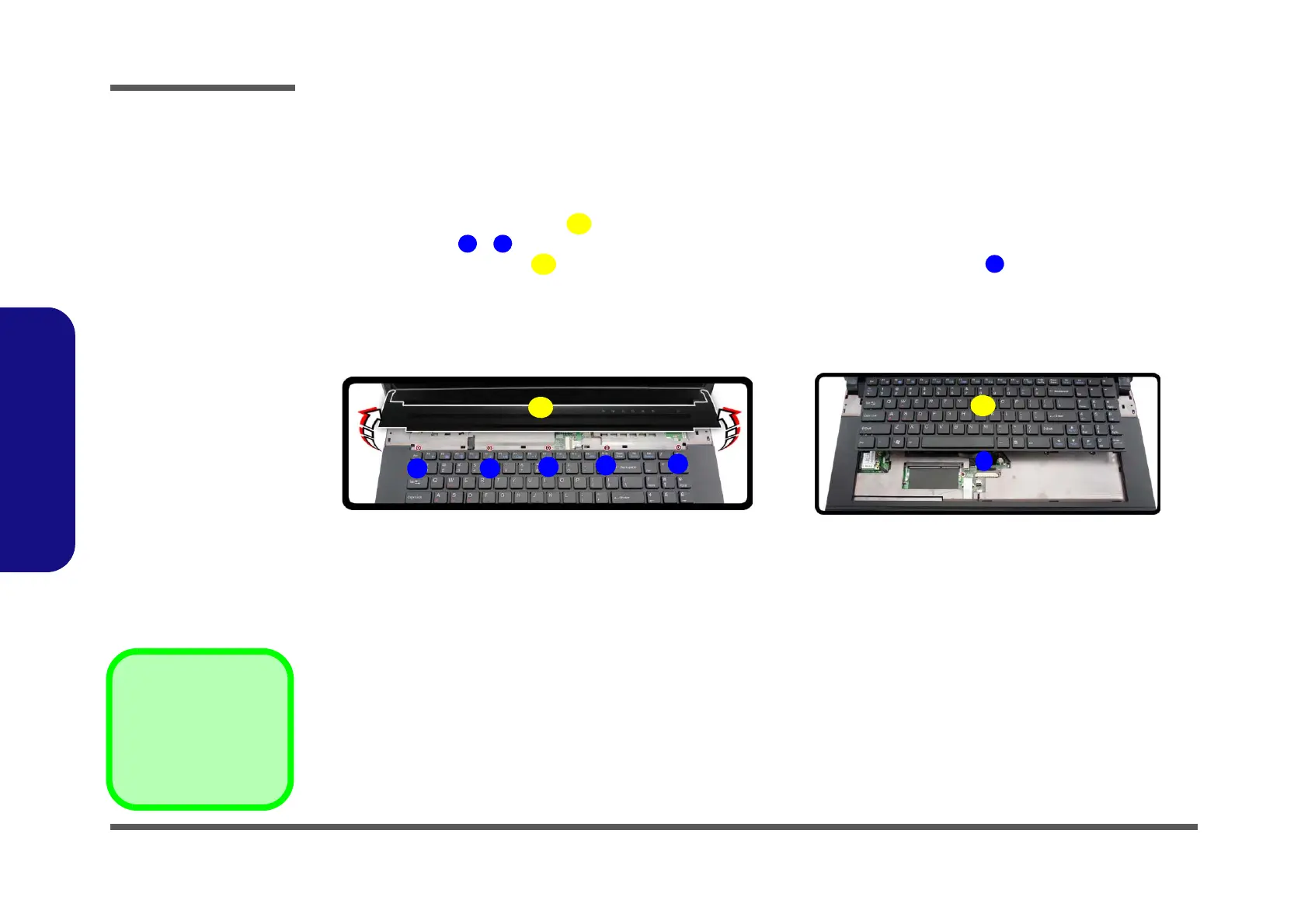

Figure 10
RAM Module
Removal
a. Remove the top
cover module.
b. Remove the screws.
c. Carefully lift the key-
board up, being
careful not to bend
the keyboard ribbon
cable.
A
1
5
B
6

A. Top Cover Module
B. Keyboard
•5 Screws
