Clevo P170HM

Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly
4. Slide the HDD assembly in the direction of the arrow (Figure 3c).
5. Remove the hard disk assembly (Figure 3d
).
6. Remove screws & and the insulation plate
(Figure 3e).
7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
4
6
5
6
7
6
8
c. d.
5
6
4
7
e.
8

5. HDD
8. HDD Insulation Plate
•2 Screws

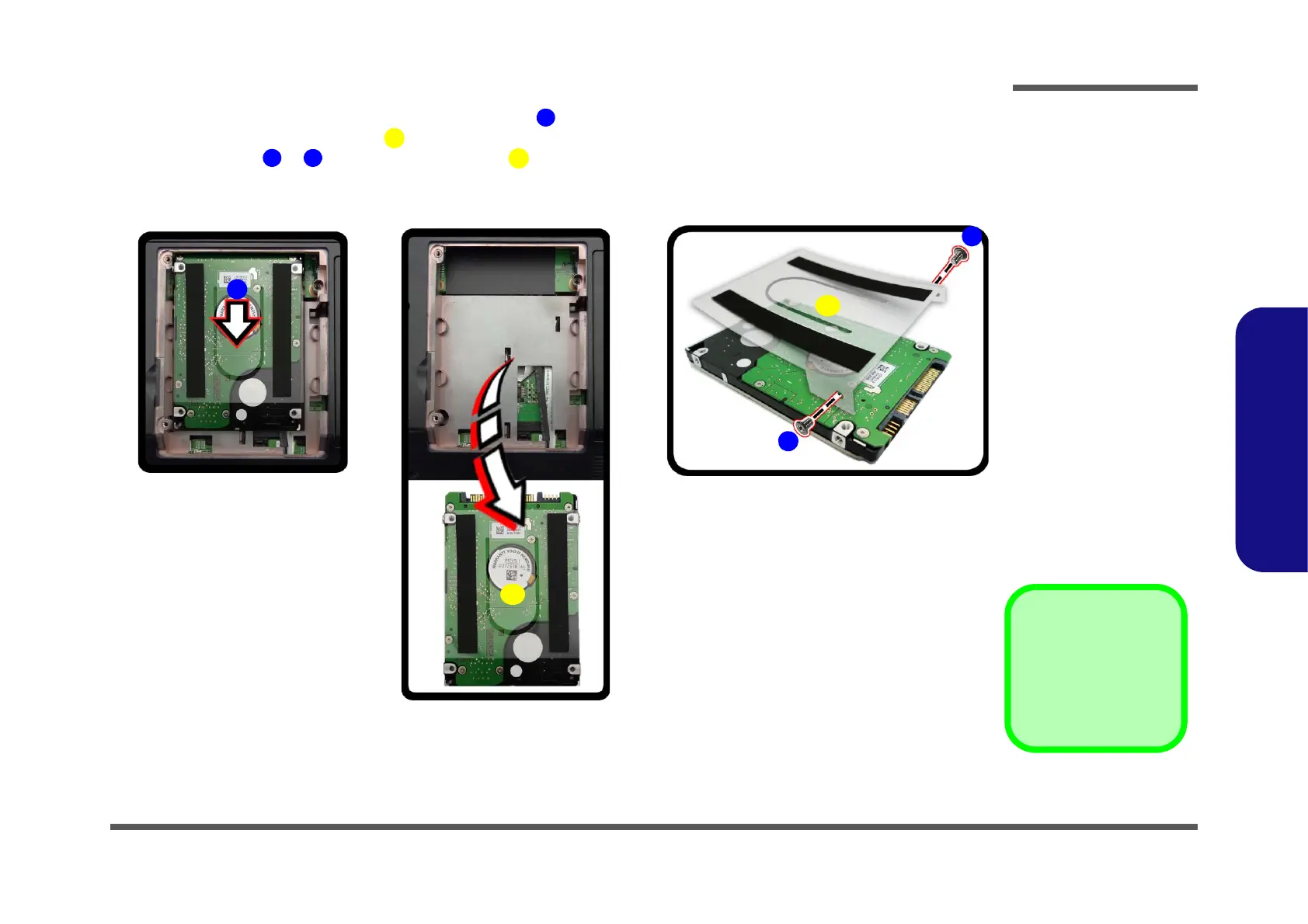

Figure 3
HDD Assembly
Removal (cont’d.)
c. Slide the HDD assembly
in the direction of the ar-
row.
d. Remove the hard disk
assembly.
e. Remove the screws and
the insulation plate.
