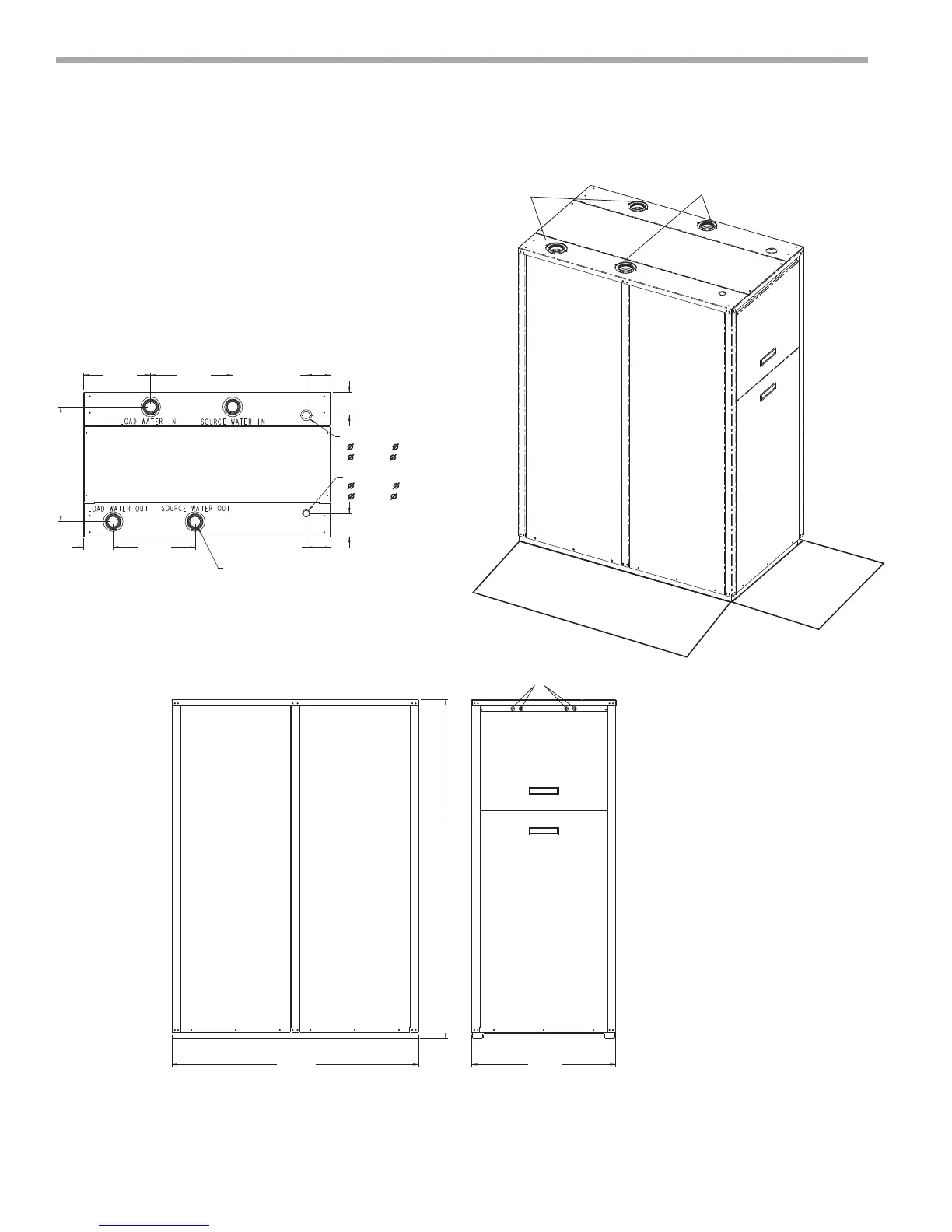

TMW170 & 340 - Unit Dimensional Data
12.3
[313]
15.0
[381]
4.5
[114]
4.3
[108]
Power Supply Wiring
1.375 x 2.0
[ 34.9 x 50.8] Double KO
4.3
[108]
Control Wiring
1.125 x 1.375
[ 28.6 x 34.9] Double KO
4.5
[114]
2” IPT Water Connections
15.0
[381]
5.4
[138]
21.0
[533]
Fault/Run Lights
64.5
[1638]
Left
Side
View
Front
View
Top
View
Load
Source
Side
Refrig.
Circuit
Access
Panel
Front
Compressor
Access
Panel
Electrical
Access
Panel
Header
Access
Panel
Top
Notes: 1. Dimensions shown in inches and [millimeters].
2. For multiple units placed side by side, allow
sufficient space front or back to remove unit.
Minimum
3ft. [91cm]
Required Service
Access
NOTE 2
45.1
[1146]
26.3
[669]
Optional (Single Unit)
3ft. (91cm) Additional
Service Access
