MAN.241 Rev.5 ENG - Use and maintenance manual S23 page 18 of 127
• the red sealed key to enable the emergency
electropump (*optional);
• the yellow sealed key to bypass the emer-
gency in the basket only in case of danger;
• the remote connection kit (lever and con-
nector) (*optional) to receive technical assis-
tance from C.M.C. Service or authorized work-
shops;
• the 12 V socket;
• the buzzer.
Before performing any operation, it is nec-
essary to place the ignition key in position
1.
If the machine supplied is equipped as full lithium ver-
sion (*optional), the switching on/off station is the fol-
lowing one:

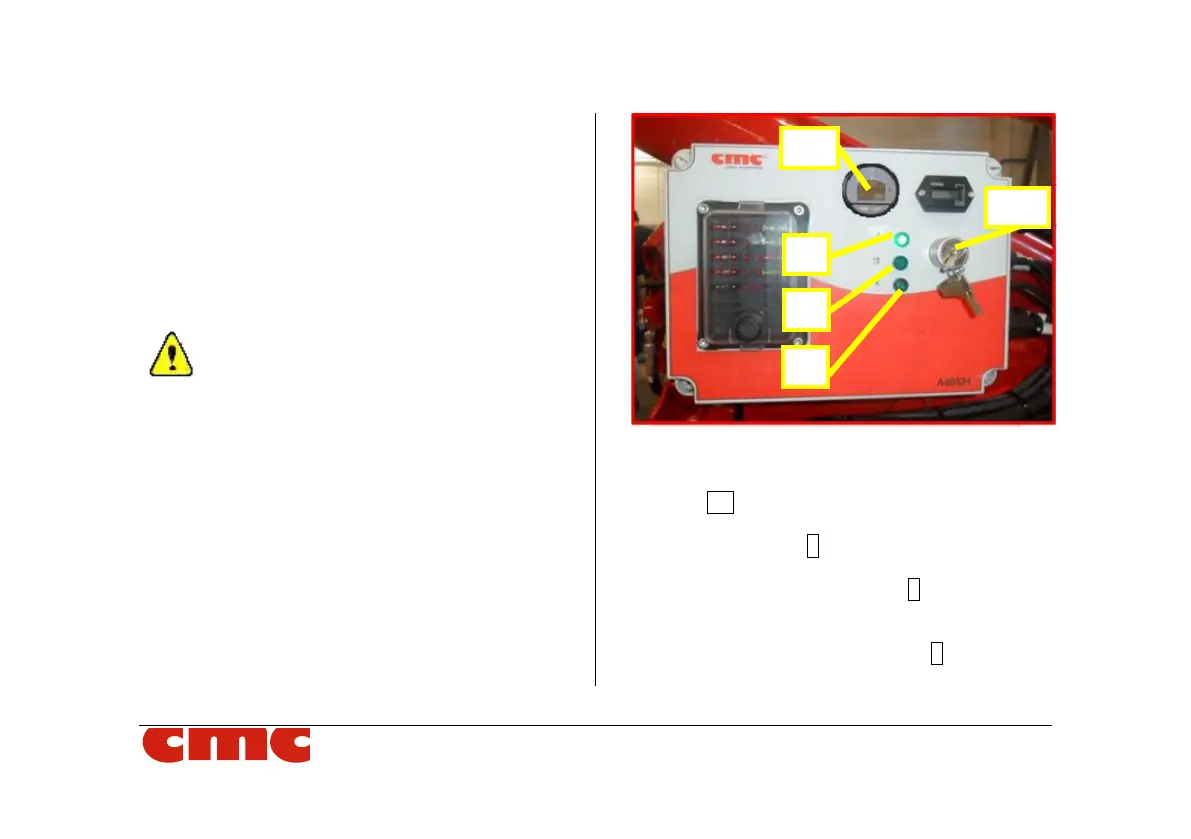

Picture 4b: machine switching on/off station
in case of full lithium version.
• the SK key: through it, it is possible to turn on
the electric system and start the electric engine;
• the green light 5 indicating machine power
supply: it is on when the SK key is in position I;
• the platform consent light 7: if lighted on, it
allows the maneuvers of the aerial part only with
stabilization correctly performed.
• the stabilization consent light 8: if lighted on,
it allows the movement of the outriggers only
