MAN.241 Rev.5 ENG - Use and maintenance manual S23 page 19 of 127

with the boom and the pantograph rested on

their supports.

• the fuse box;

• the battery charge indicator 10;

• the hour counter.

If the machine supplied is equipped with gasoline en-

gine, the switching on/off station is the following one:

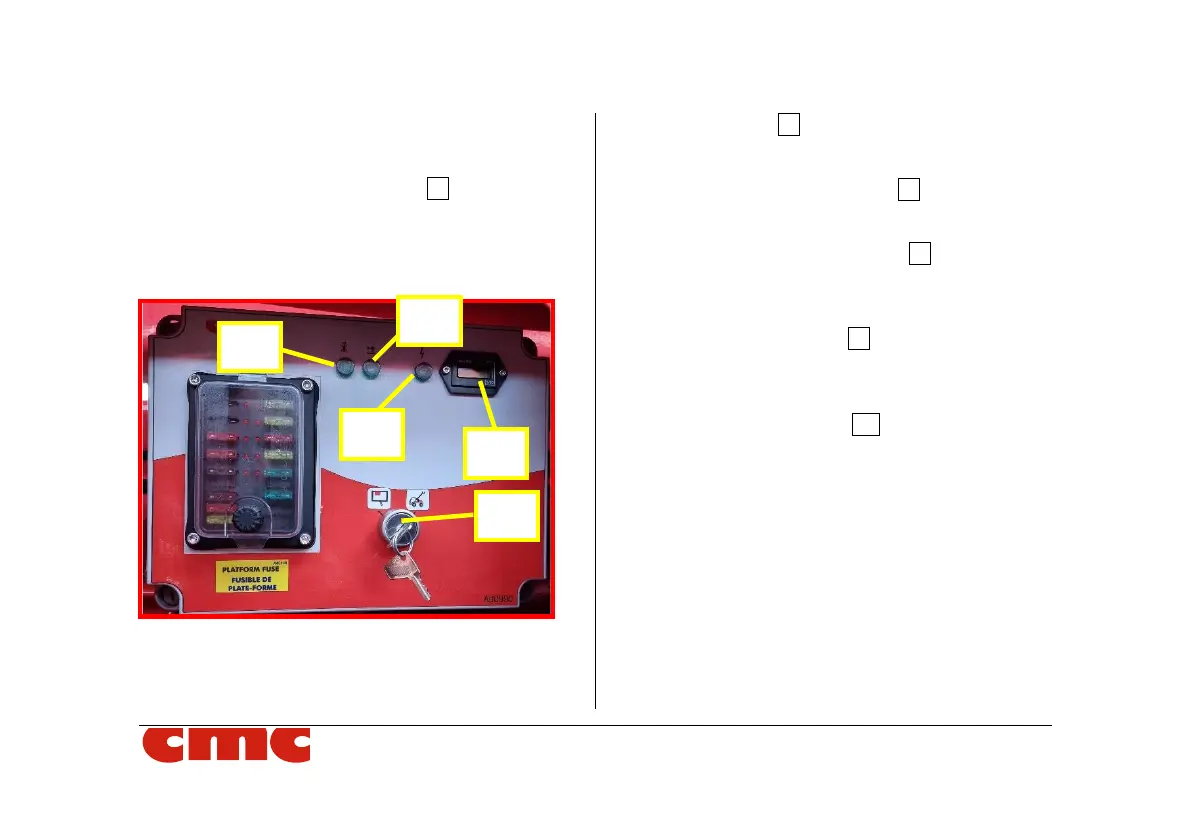

Picture 4c: electric station in case of gasoline

engine.

• selector 11 of the control station: on the

left it enables basket controls, on the right

it enables lower controls;

• platform consent light 12: if turned on, it

allows operations of aerial part only with

stabilization carried out correctly;

• stabilization consent light 13: if turned on,

it allows stabilizers movement only with the

boom and the pantograph rested on their

supports;

• the green light 14 indicating machine

power supply: it is on when the SK key is

in position I;

• the fuse box;

• the hour counter HC.
