MAN.241 Rev.5 ENG - Use and maintenance manual S23 page 31 of 127
3.2.2 Basket (operating) control station
The main control station is in the basket and consists
of an AUTEC console, connected to the plug in the
basket and fixed on a support.
The basket control station can be a second AUTEC
control station supplied as *optional to be fixed per-
manently in the basket or the radio control, supplied
as ground command, fixable on basket when it is
necessary.
The functions contained on the basket
control station are the same as those of
the platform (operating) radio control sta-
tion in Picture 8 and are indicated by the
same symbols described above.
In the fixed basket (operating) control station, clearly,
the parking button P and the lever 7 are missing (Pic-
ture 12).

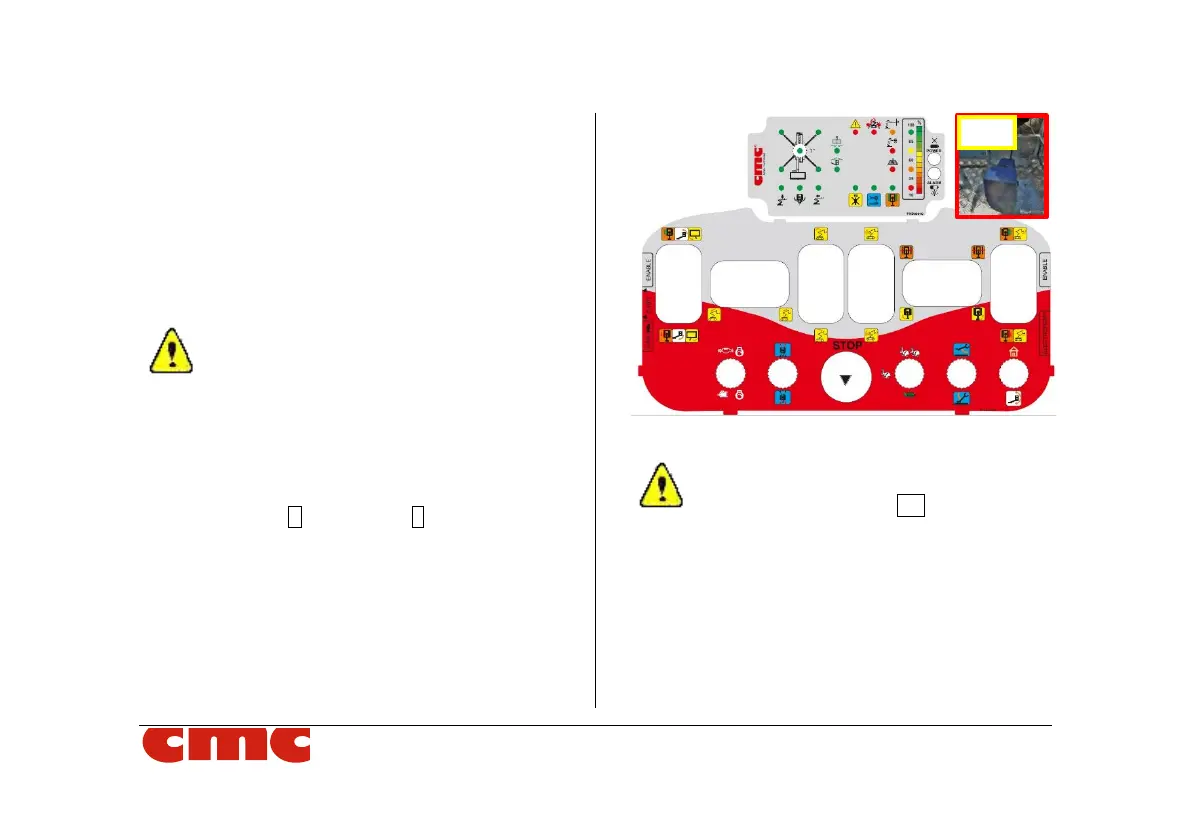

Picture 12: basket control station + “dead man”
pedal.
The “dead man” pedal DB (Picture 12), if
present (*optional), must be pressed simulta-
neously with joysticks for all manoeuvres by
the basket control station.
On the right side of electronic box, below the basket con-
trol station, there can be also a 12 V socket* and a 200
bar air/water hose*.
