3.3 Emergency control sta-

tions

The emergency control station includes:

• outriggers control station;

• errors display;

• emergency workbench for aerial part recovery.

3.3.1 Outriggers control station

The "outriggers control station” is fixed aboard the

machine frame.

The manual stabilization/destabilization manoeuvres

are carried out by the operator on the ground through

the outriggers control levers (Picture 13):

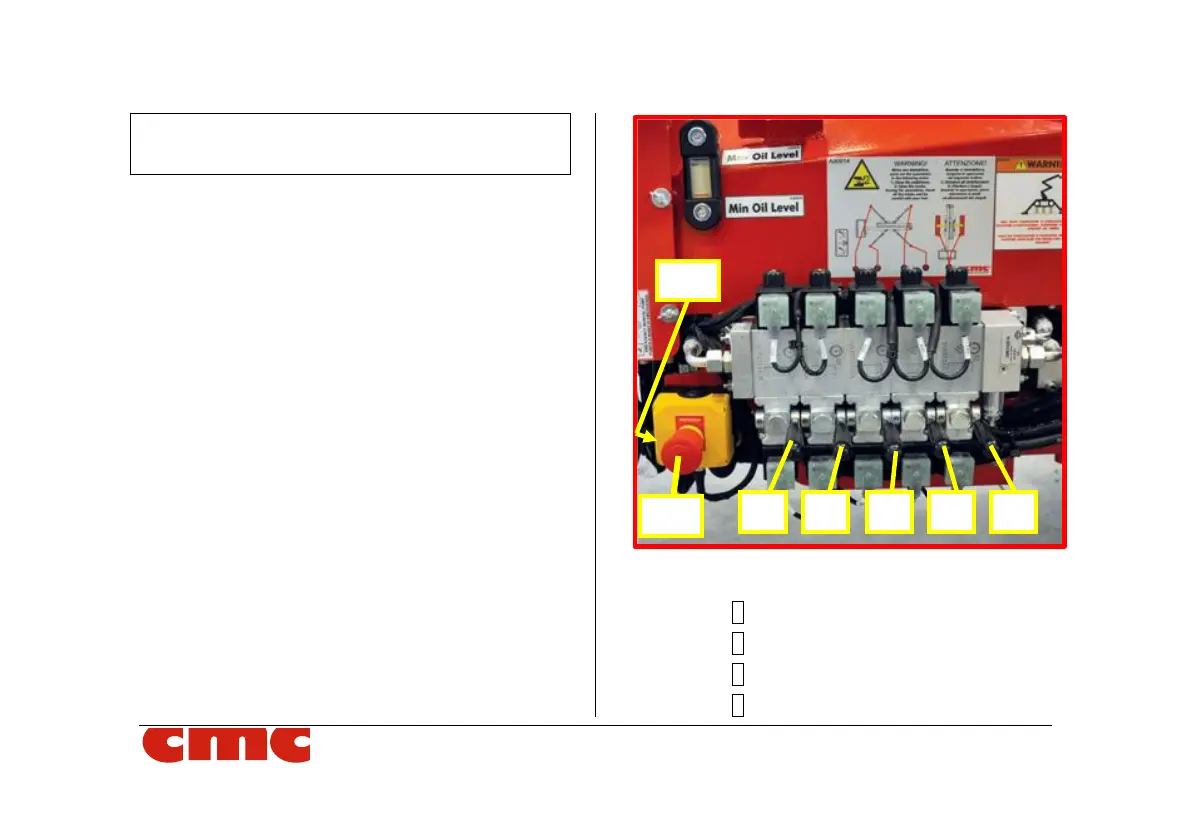

Picture 13: outriggers control station.

• lever 1 for left rear stabilizer;

• lever 2 for right rear stabilizer;

• lever 3 for left front stabilizer;

• lever 4 for right front stabilizer;
