Verify that the maximum slope to stabilize
not exceed 13° (23%).
The machine will be correctly stabilized when the
consent indicator for the use of the aerial part 7 (Pic-
ture 4) will light up. To achieve this condition, it is
strictly necessary to lower the outriggers until they
are well positioned on the ground, the tracks uplifted
and the frame in planarity with a maximum tolerance
of 1°.
4.4.2.2 Automatic stabilization with radio
control
If you want to stabilize the machine in automatic
mode, you can use the radio control:
o use the lever 11 (Picture 8): it causes the sim-
ultaneous descent of the four outriggers until
the system reads the four limit switches for the
ground contact and the lifting of the tracks;
o make sure that the consent indicator for the
use of the aerial part 7 (Picture 4) is on.
During stabilization phase, pressing the parking but-
ton P (Picture 8) on the radio control, together the
stabilization lever, you can raise all the machine with-
out waiting the predefined cycle of automatic stabili-
zation.
4.4.3 Access in the basket

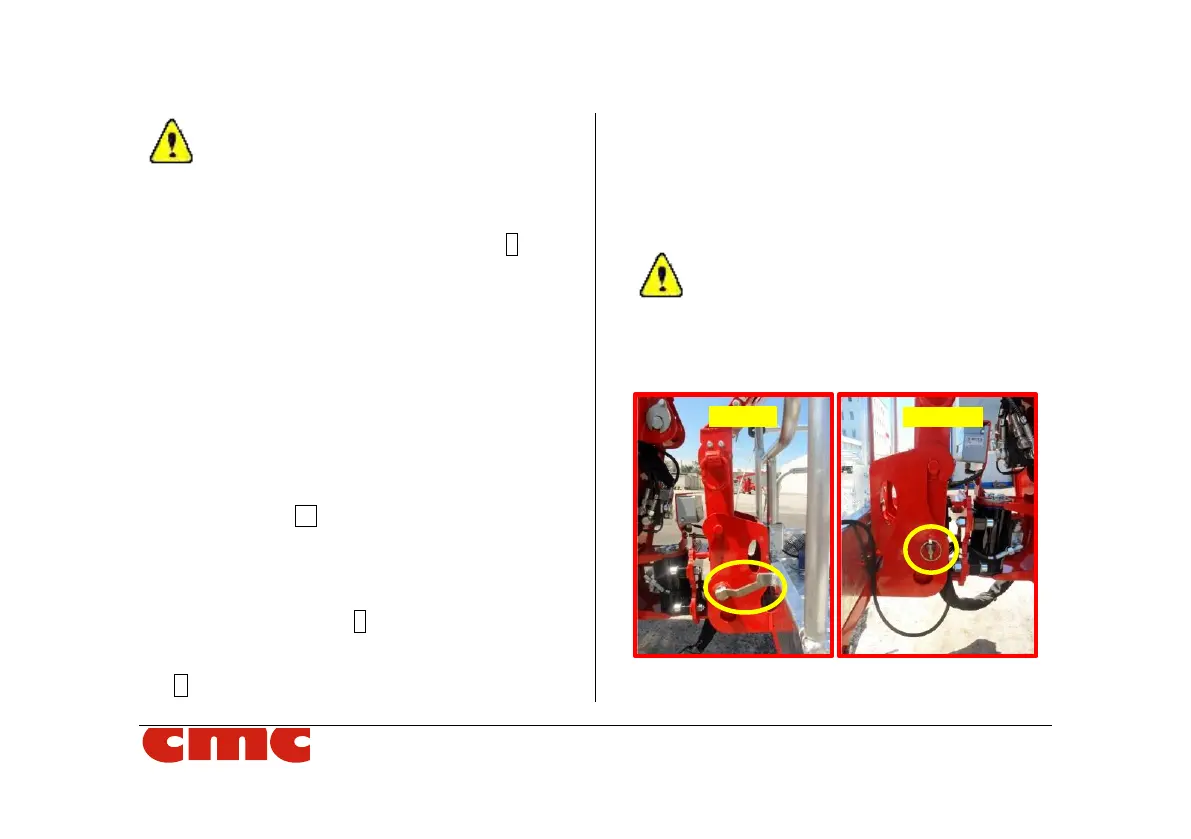

Verify the correct assembly (Picture 19) of the
basket to the jib: pivot and cotter pin inserted
on the right side of the jib; pin turned to the
right, up to basket edge on the left side.
Picture 19: basket assembly.
