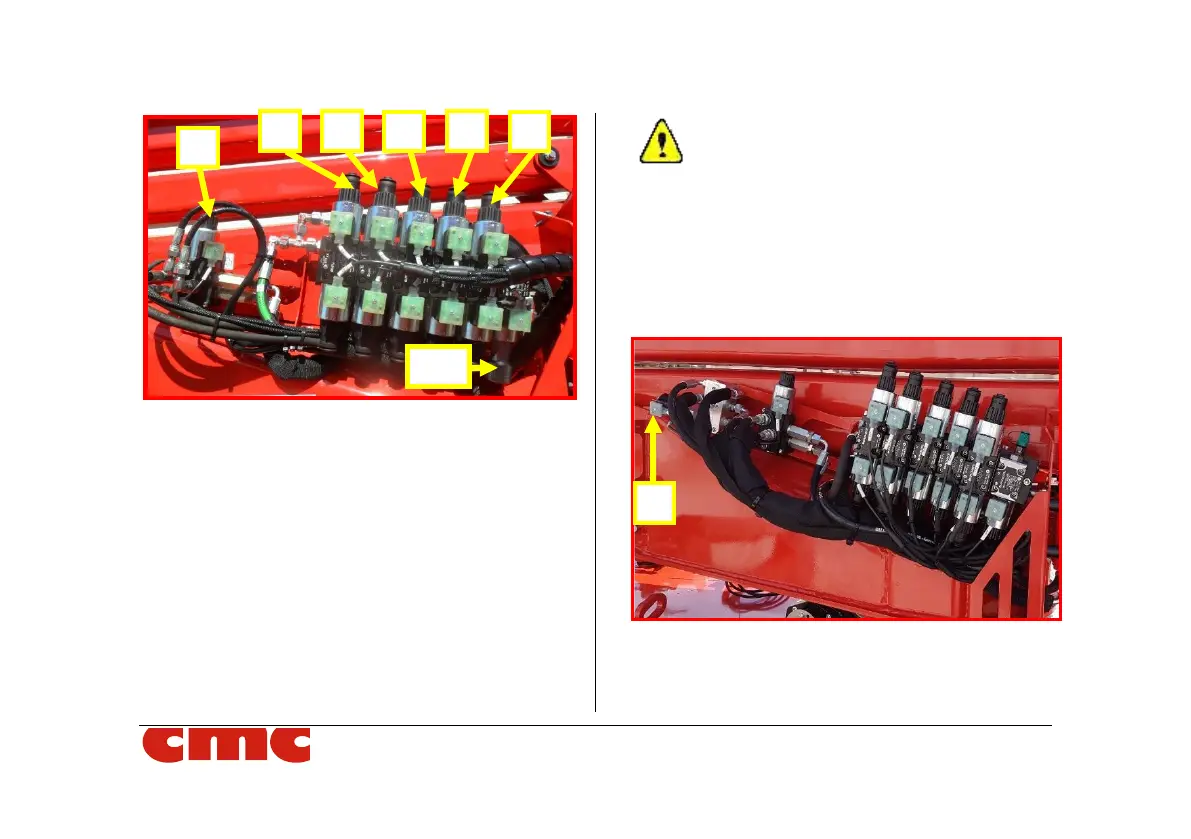

Picture 23a: emergency workbench.

4. Perform the aerial part recovery operations in

the following sequence, by pressing the cur-

sor of the specific maneuver (Picture 23a) and

simultaneously pumping oil with the manual

pump:

i. jib closing 5;

ii. telescopic booms return 2;

iii. telescopic booms lowering 3;

iv. pantograph lowering 4;

v. basket levelling 1;

vi. turret rotation, keeping pressed 6 to-

gether 1.

CAUTION!! In case of emergency, first

perform the retraction of the telescopic

boom and then the lowering of the boom

and of the pantograph.

If the MEWP is equipped with a moment limiter de-

vice (*optional), the emergency workbench looks like

in Picture 23b.

Picture 23b: emergency workbench

in case of moment limiter device (*optional).
