MAN.241 Rev.5 ENG - Use and maintenance manual S23 page 91 of 127
5. remove red pressure caps (Picture 89 – Pic-
ture 90);
6. inject the grease with the apposite syringe;
7. put red pressure caps (Picture 89 – Picture
90);.

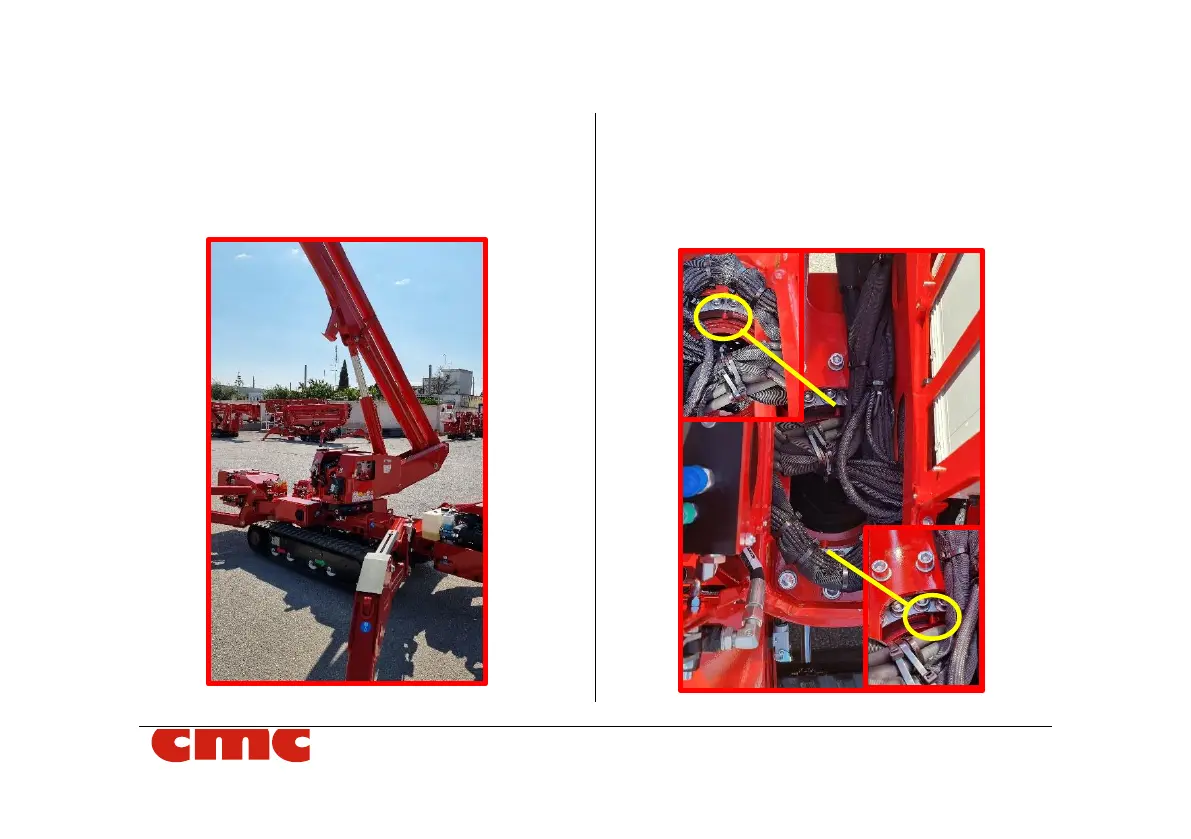

Picture 88: correct position of MEWP (panto-
graph lifted and turret rotated of 90° counter-
clockwise) for grease injection.
