Tells the router’s current operating status. For the XPR series, the rear side of the routers have similar safety lights.
• White Light- Static mode: no operation is in progress and the router is ready for a command. In this mode, the
bottom right of the screen will display “Ready”
• Red Light- Alarm mode: there is an operational issue or error. In this mode, the ‘Alarm’ display at the bottom
right of the screen will blink red with “Not Ready” beside it.
• Green Light- Operation mode: operation is in progress. No other command may be executed unless the
current operation is stopped. In this mode, the bottom right of the screen will display “Busy”.
Safety Light
Start Button
Pause Button
Press to start operation. You will have to physically press the button to run a program. This is intentional to prevent
unintended starting from accidental pressing of touchscreen buttons or to prevent people with internet access to
your controller from operating your router remotely.
Pauses the operation. While on pause, your router is still fully powered, motors are still running, the spindle or drill
block are still spinning (although the feed will be zero), and it will not affect all other commands that are queued
up. To resume operation, press the Start button again.

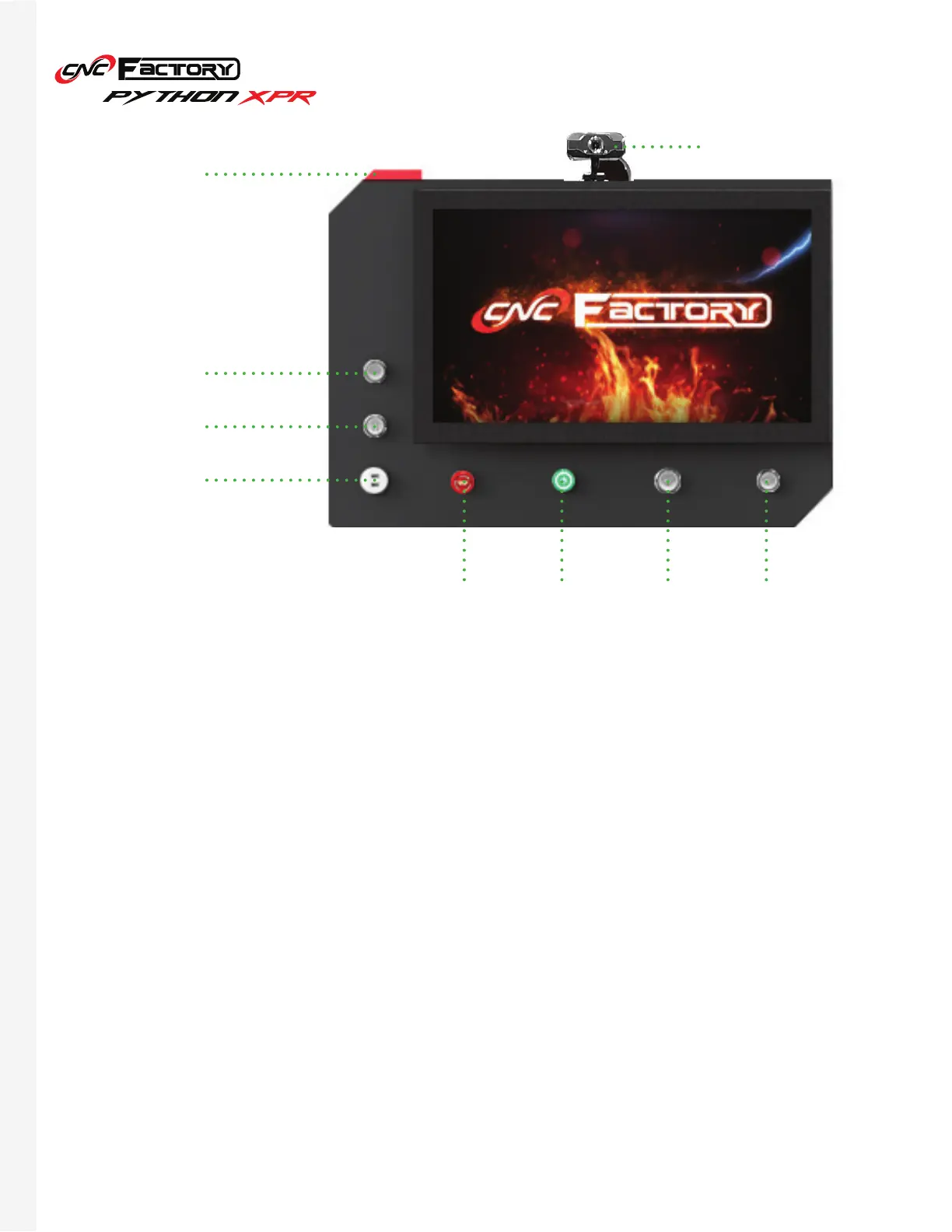

Start Button
Safety Light
Pause Button
USB Ports
Power
Button
Vacuum ButtonsE-Stop
Button
Camera
