In Utilities > Block Offset > Tool block info
(for drill and marking blocks)
Only change the
Workpiece No. P
field. On some router
models, this appears
as the “Tool Number
T” field.

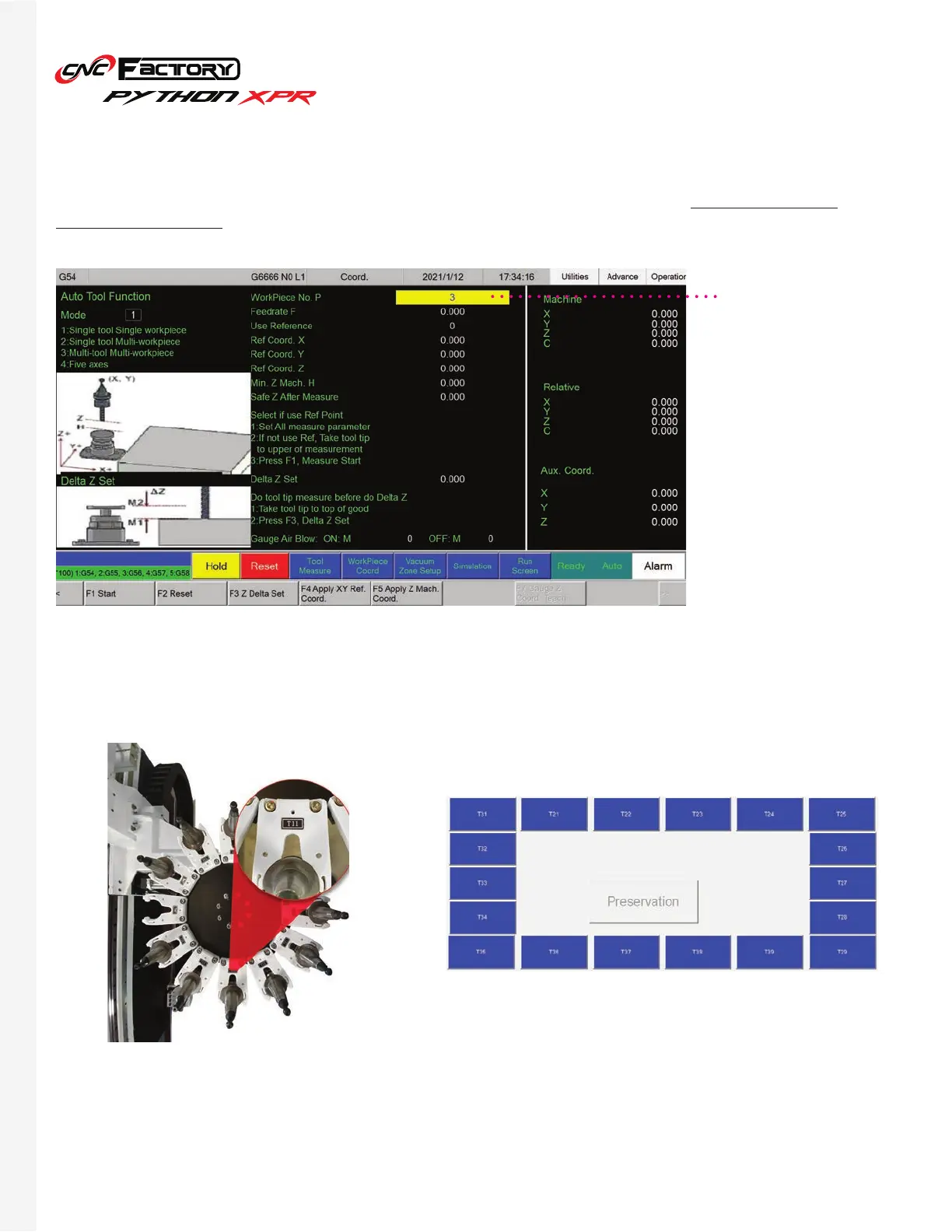

Tool Measure Screen
The Tool Measure Screen lets you measure tools automatically. You need to measure tools only when you (a)
change/adjust a bit, or (b) rearrange the position of your tools. For simplicity of use, only configure the
Workpiece No. P field. The rest of the controls are for advanced use of technicians.
1. In the Tool Measure screen, click on the Workpiece No. P field. Once highlighted in yellow, type in the number
corresponding to the tool you would want to measure. You can find your tool’s number at:
2. Press Enter to save.
3. Press F1 to start.
4. The tool measuring is completed once your safety light goes from green to white.
The ATC tool carousel
To Next Page
