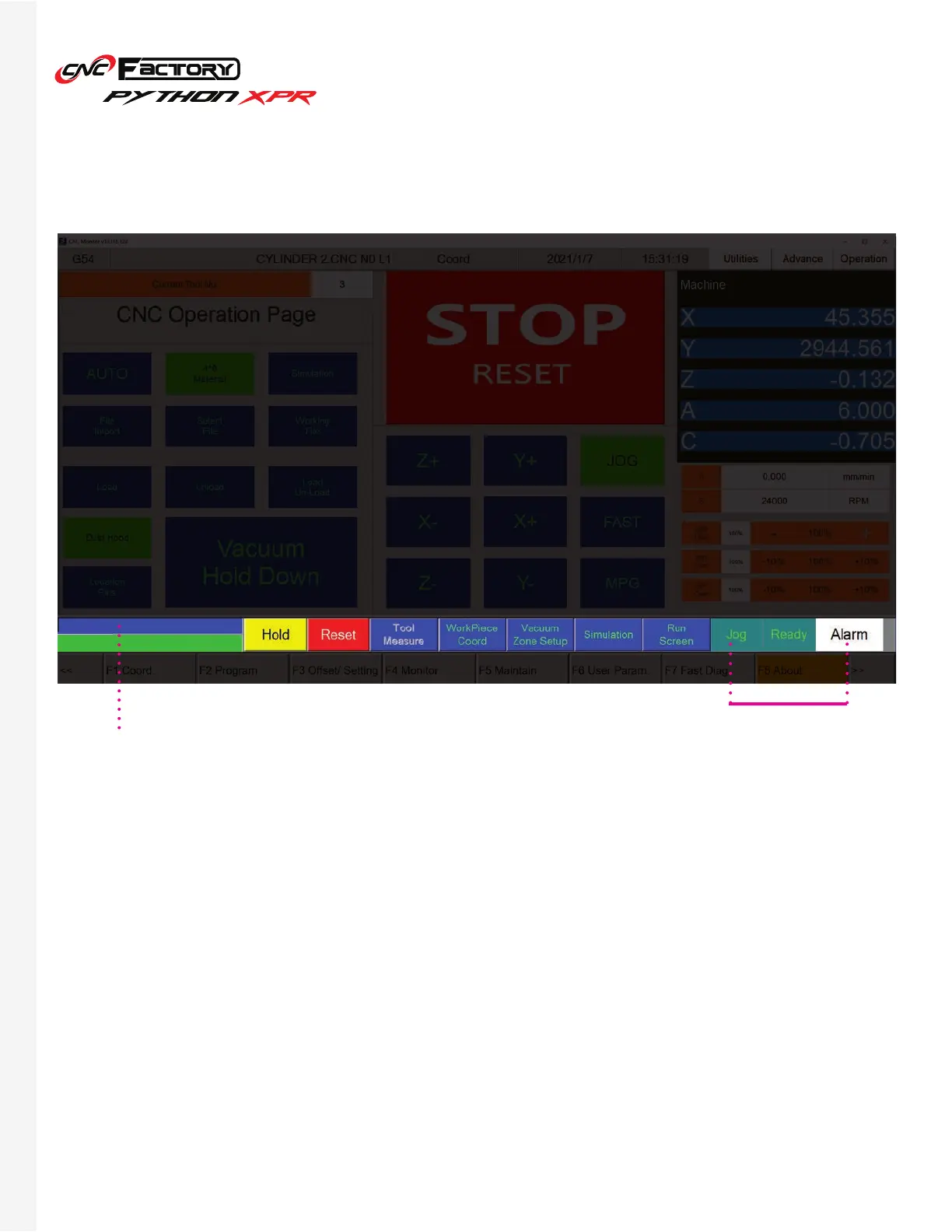

Main Navigation Belt
[APPEARS ON ALL TABS]
• Hold - stops an operation. Despite its name, this does not pause an operation and let you resume after. It
works similarly to the reset/stop buttons.
• Reset - stops or resets the operation
• Tool Measure - to change tools. Opens the tool measure screen. Only works if you are on Auto mode in the
Operation tab.
• Work Piece Coord - to change workpiece starting points. Opens the workpiece coordinate screen.
• Vacuum Zone Setup - to change vacuum zones. Opens a pop-up window.
• Simulation - goes to a simulation of the Auto function. Pauses all active operations.
• Run Screen - shows the G-code of your current file as well as repeats information from the Main Screen.
Input preview (blue) field Machine status
Whenever you input values in an
editable field, those values are
previewed here.
• If on Auto or Jog Mode
• If Ready or Busy
• Any alarms
To Next Page
