What does an imported file look like?
Working List Step-by-Step:

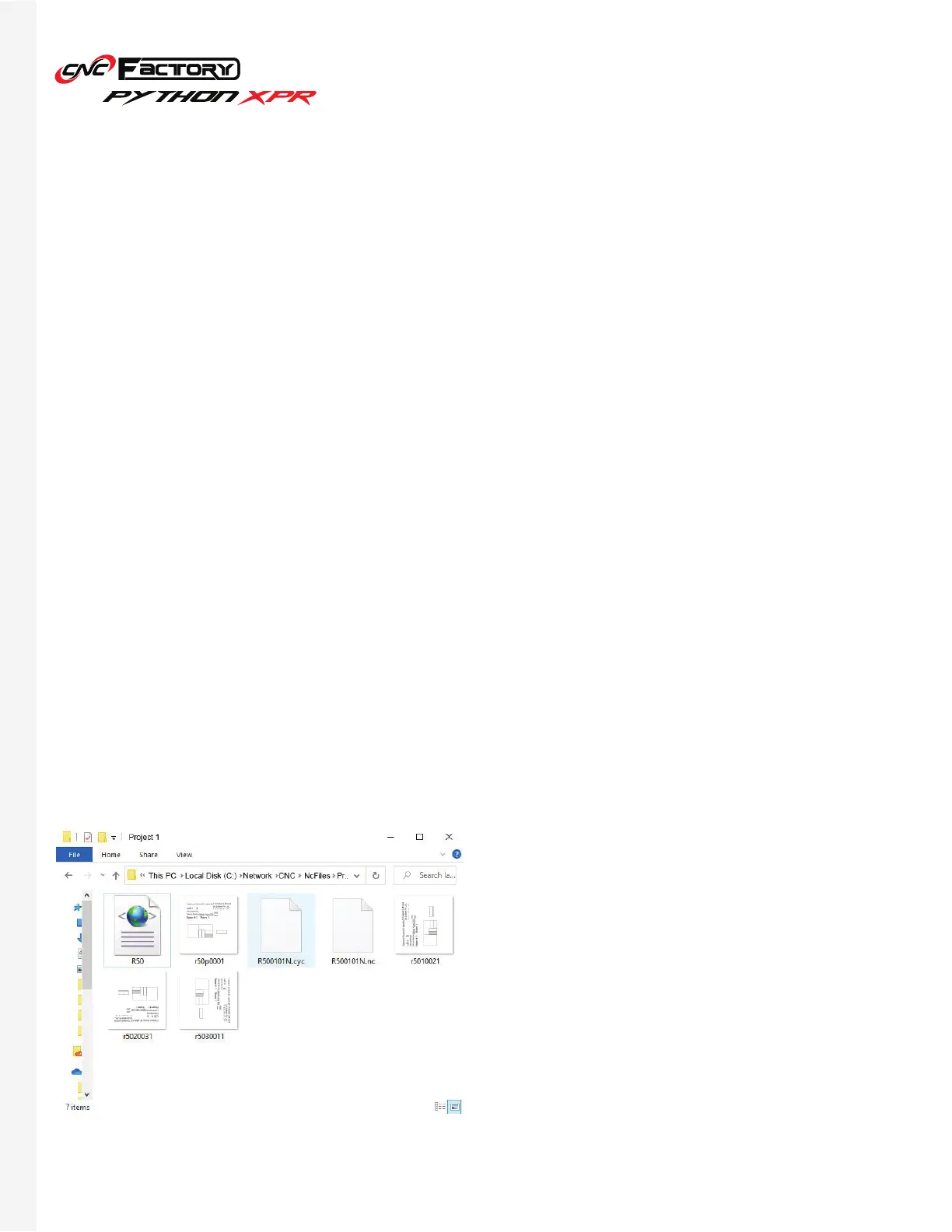

The file you import to the working list typically comprise of the following:
*file extension may vary and can be changed
[See next page].
• XML Document - links the other files to the Python
program
• NC* - contains the G-code for your job
• CYC - contains commands on where to place the
labels
• JPG - the actual images printed on the labels
1. Save your design file in the CNC File folder:
• Save to the folder if designing from the controller
• Save to the folder after importing via USB
• Save to the folder after downloading from the internet (cloud, email)
3. Open the Python program and go to the Operation Page by clicking on the [Operation] tab.
4. Press [Auto].
5. Go to the Working list page by clicking the [Working File] button.
6. Press [F4 Clear List] and click [Ok] to delete your previous working list. When you clear your list, you are
only removing them from the Working List screen and not from your CNC File Folder.
7. Press [F3 Arrange Working List].
8. Select the files you want to use by ticking on the checkbox corresponding to it. You may also click [F2
Select All] to select everything (Note that F2 Select All only selects all individual files, and not folders).
9. Press [F1 Output List].
10. Press [F1 Ok] or click [Ok] from the pop-up window. Your imported files should now appear in your
working list, for both the file and label panels (if applicable). If not, change your file extension.
11. Press the Start button to begin executing.
