Workpiece Coordinates Screen

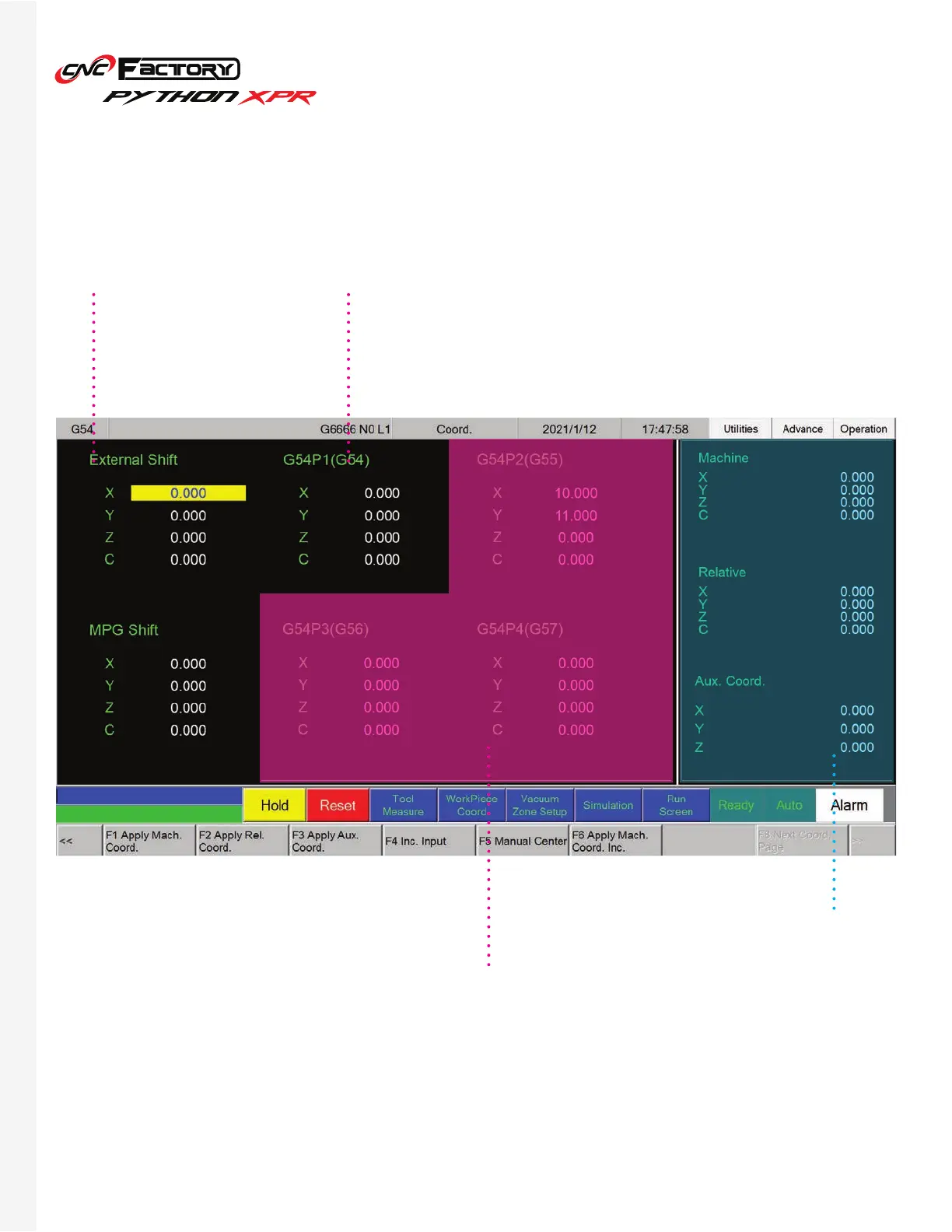

The Workpiece Coordinates Screen lets you use alternate workpiece starting points, instead of your default G54
coordinates. You can create and save up to 100 workpiece coordinates here.
External Shift G54 Slot
Coordinate Slots Coordinate Info Panel
Any value placed here will
be added or subtracted to
the value of the G54 .
Default Points
Empty slots by default for customization. Goes
from (from G54P2 to G54P100).
• Machine- the current, exact
position of the machine.
• Relative - a position relative
to another specified position.
This is an advanced feature for
technicians.
The screen shows the first 6 workpiece coordinates, to view the rest, press [Page Up] or [Page Down] on your
keyboard.
To Next Page
