Jog

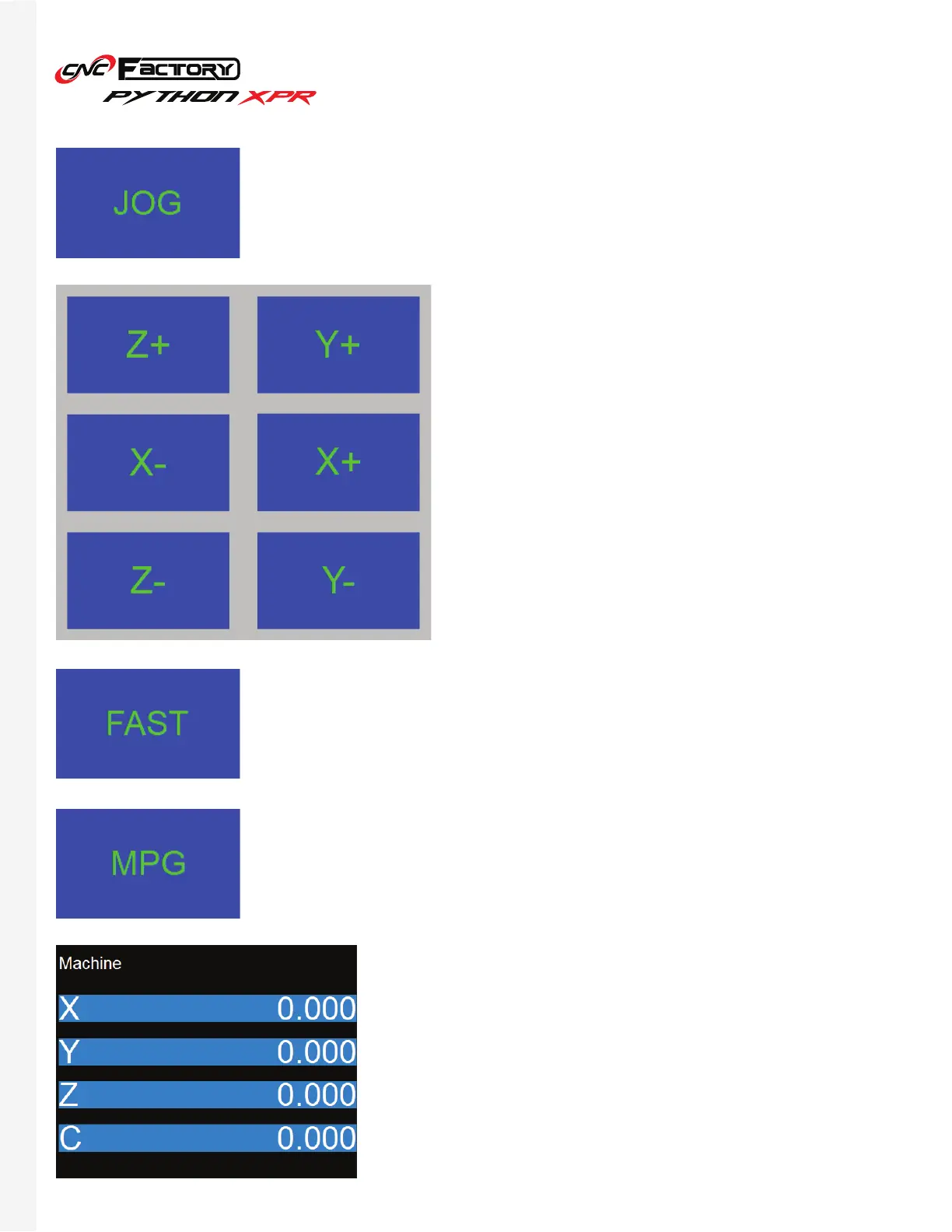

Axis buttons (for X, Y & Z)
Fast
Machine Coordinates
MPG (Manual Pulse Generator)
Click to activate Jog Mode. Here, you can manually control the movement of the
machine according to each axis.
Each axis has a button for positive and
negative directions. The machine moves at
a maximum speed of 15,000mm/min to the
corresponding direction each time an axis
button is pressed.
For a faster jog. Click while on Jog mode to move the machine at a maximum speed
of 55,000mm/min to the corresponding direction each time an axis button is
pressed.
These are informational only and cannot be pressed nor altered. Indicates
the exact, real-time position of the machine per axis.
• A (Alpha) - location reference for the ATC carousel
• C (Charlie) - location reference for the robotic dust hood motor
* Both are advanced controls for technicians’ use.
Click to use the wireless handheld remote.
