CNCroom MB3 - Spindle Configuration

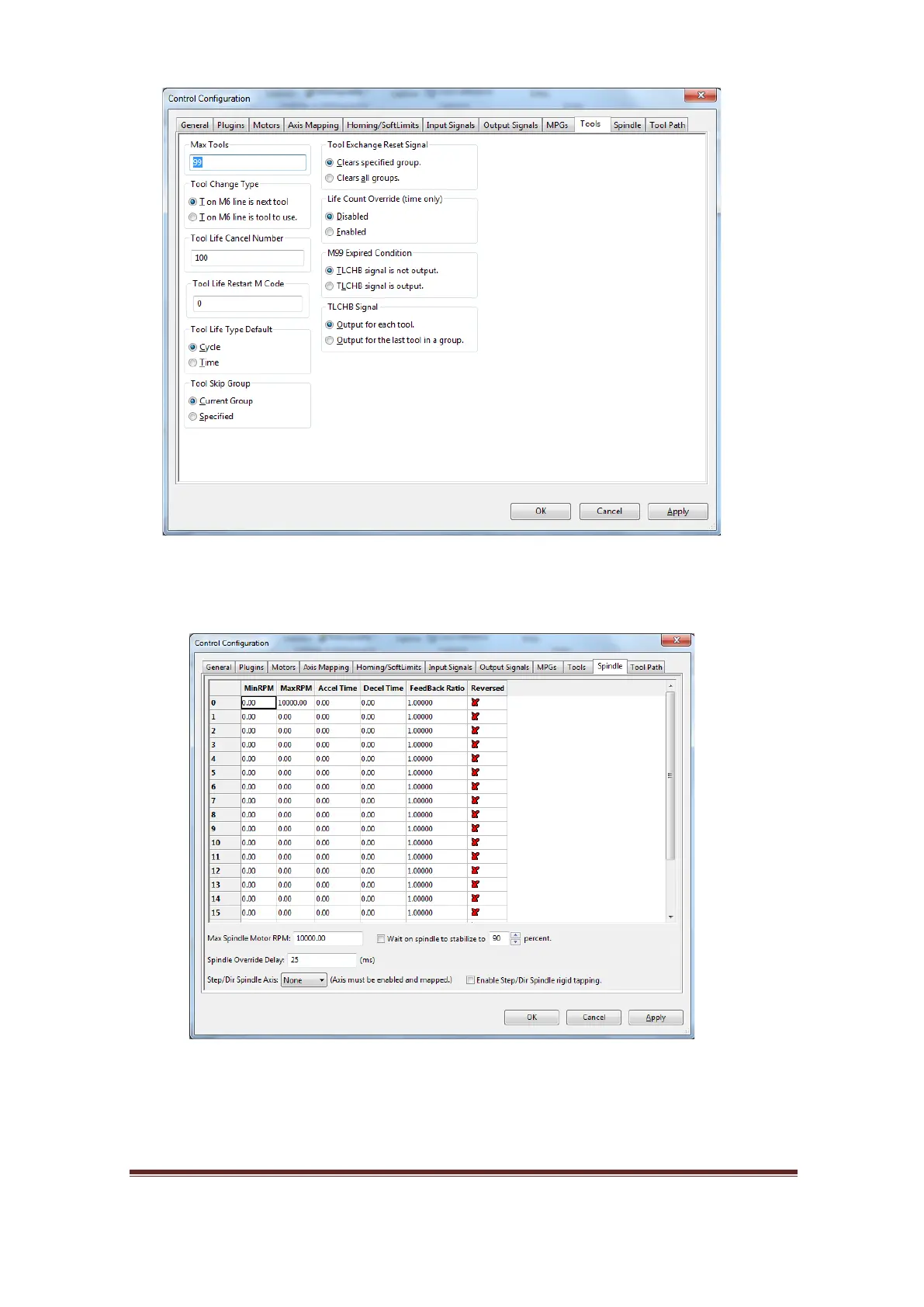

Figure 76, Tools
Figure 77, Mach4 Spindle
The value in MaxRPM column for each range or gear number 0-15 is referenced to 10V. In this
case, 10000 RPM is preferred for analog output tuning. Since it reflects to 0-10V while we enter
